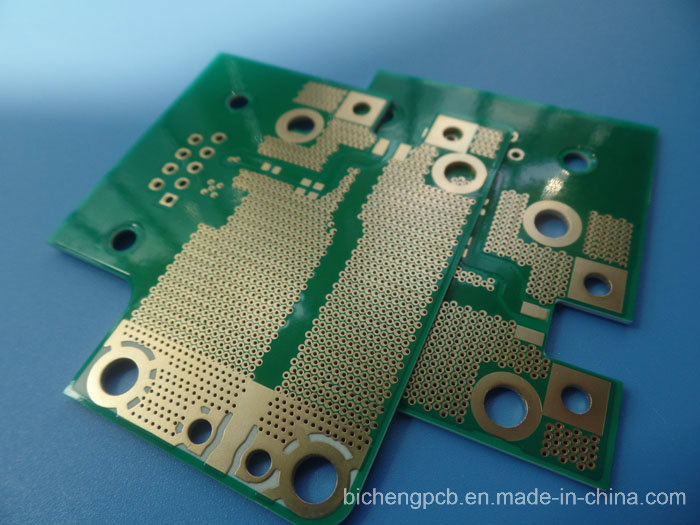

Tented Vias PCB RO4003c 12mil (0.3mm) Big Panel

Name: Tented Vias PCB RO4003c 12mil (0.3mm) Big Panel
Brand: all-electronics-online.com
SKU: 831441295
Availability: InStock
Rating: 4.6 (78 reviews)

Price:	US $ 1.78/Piece
Min Order:	1/Piece
Pay Type:	T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	BIC-467.1757-V1.1
Oard Thickness:	1.6mm +/-0.16
Tg Value Of Board Material:	170ºC
Surface Finish:	Immersion Gold
Solder Mask Color:	Green
Thickness Of Solder Mask:	13um
Mininum Trace (Mil):	10 Mil
Minimum Gap(Mil):	5mil
Test:	100% Electrical Test Prior Shipment
Via:	Plated Through Hole(Pth)
Flamibility Rating:	UL 94-V0 Approval Min
Type:	Rigid Circuit Board
Flame Retardant Properties:	V0
Dielectric:	RO4350b
Material:	Hydrocarbon/Woven Glass
Insulation Materials:	Glass Reinforced Hydrocarbon

Product Description

Company Profile
Bicheng Enterprise Limited serves global clients from Shenzhen, China since 2003.
Different plant scale to suit for your requirements
16000 square meter factory building
30000 square meter month capability
8000 types of PCB per month
ISO9001, ISO14001, TS16949, UL Certified

High Frequency PCB

Flexible Printed Circuit

Metal Core PCB

PCB Board

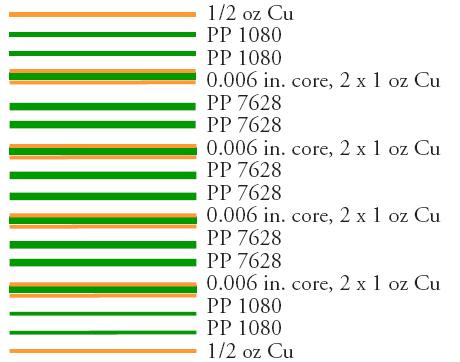

The process of multilayer PCB
A) In general, a multilayer board consists of a number of very thin print-and-etch inner layers, but drilling of holes has not been carried out. Outer layers of the multilayer board remain unetched.

B) Layers from top to bottom are bonded together in close registration by means of thin plies of prepreg. The bonding is performed under close temperature and pressure control in a lamination press.

C) After lamination, they are the processed in very much the same way as an ordinary double-sided PTH boards, i.e. holes are drilled, cleaned and plated. Outer layers are etched to develop the circuit pattern. Solder masks are applied and solder coating (HAS, ENIG etc) is performed.

Founded in 2003, Bicheng Enterprise Limited is a professional PCB export enterprise. We have established a good relationship of cooperation with well-known enterprises in the same industry.

The factories have been ISO 9001-2008, ISO 14001-2004 and ISO/TS16949-2009 quality management system certified. Over the past 14 years, we have provided professional circuit board manufacturing solutions for more than 5000 companies worldwide.

Different plant scale to suit for your requirements

16000 square meter factory building

30000 square meter month capability

8000 types of PCB per month

ISO9001, ISO14001, TS16949, UL Certified

We have our own advantages to help you saving cost and time spent on PCB, booster your new products go to market quickly.

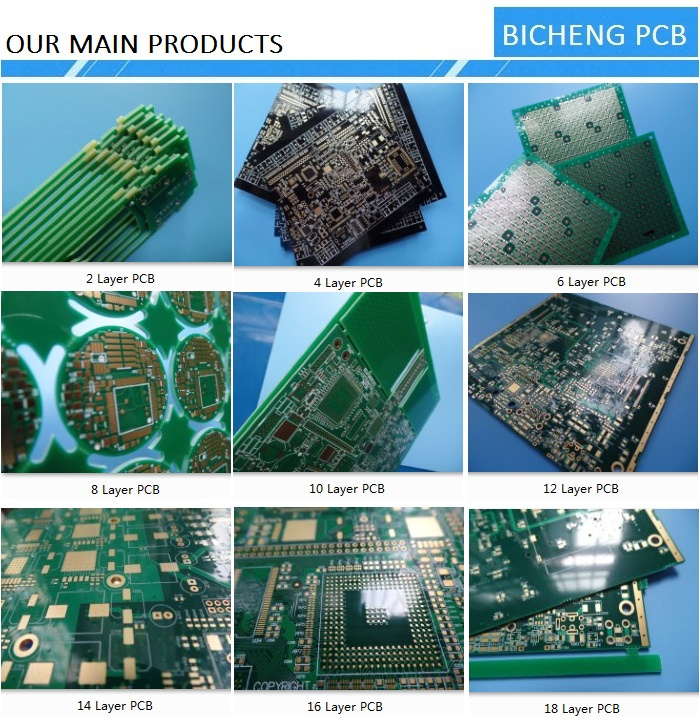

A) Various kinds of PCB products

Double sided PCB

Multilayer PCB up to 32 layers

FR-4 PCB (Tg130, Tg170)

High frequency PCB (RO4350B, RO4003C)

Aluminum PCB (1W/MK, 2W/MK, 3W/MK)

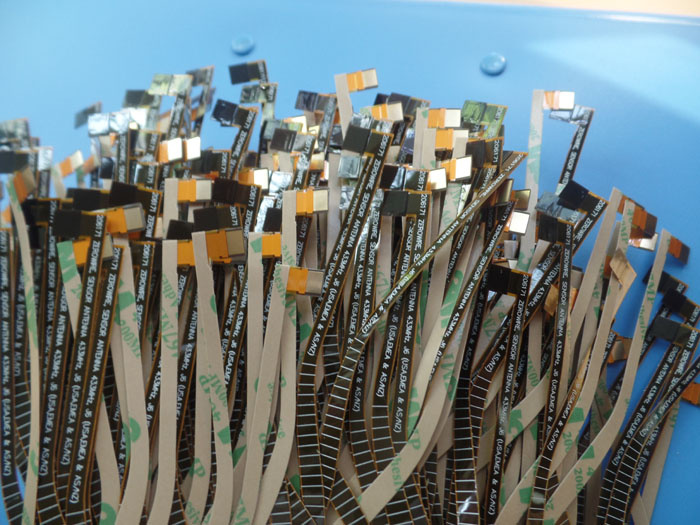

Flexible PCB

HDI PCB Board

B) Multiple PCB technology to meet the market demands

Blind via PCB, Via in pad PCB, Fine pitch BGA PCB

Impedance controlled PCB

Heavy copper PCB

Hybrid material PCB

C) Many discount policies for new customers

SMT stencil foil, free of charge

Prototype shipping cost, free of charge

Prototype test, free of charge

PCB panelization, free of charge

D) High quality PCB services

Engineering design prevents problems from occurring in pre-production.

Meet your PCB needs from prototype to mass volume production.

Eligible products rate of first production: >95%

Delivery on time: >98%, door to door shipment service

Customer complaint rate: <1%

Choose BichengPCB means you choose hassle free.
