Terminal Block Connector Pin Type Copper Busbar 63A MCB

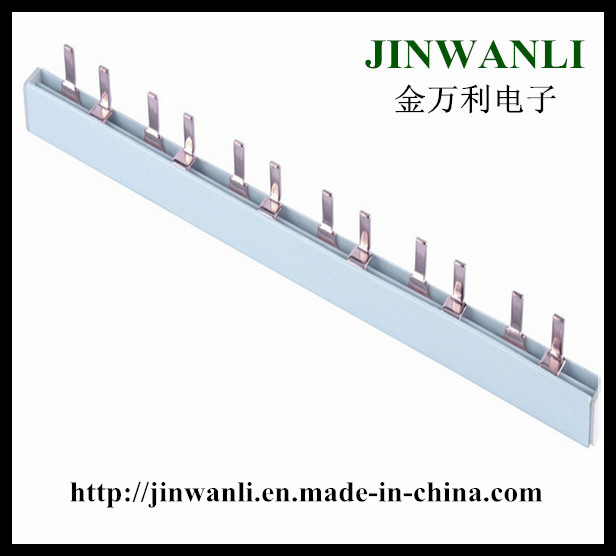

Name: Terminal Block Connector Pin Type Copper Busbar 63A MCB
Brand: all-electronics-online.com
SKU: 714984455
Availability: InStock
Rating: 4.4 (33 reviews)

Price:	US $ 2/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1000/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Type:	Socket Terminals
Material:	Copper
Application:	Conduct Electricity
Shape:	Pin

Product Description

Technical features of 63A mcb copper busbar :

1. Material is of fire-resistant PVC and red copper
2. Current rating is up to 100A
3. Rated voltage is up to 415V
4. Applicable ambient temperature -25~+50
5. Standard length 1m, other length tol be made upon request.
6. Good conductivity, low contact resistance, safe and reliable.

Specification	Model	A	B	C	D	E	Cross-sectional area	Reference current
PIN	2P	1.5	4	9	17.8	11.5	13 mm2	80A
PIN	2P	1.8	4	9	17.8	11.5	16 mm2	100A

Application:

Electrical busbar is suitable for all kinds of building electrical appliances.Low voltage power cabinet,Distribution box,lighting box etc. Multi-way feeder distribution equipment.Connection by the main line and each feeder branch.

Features:
1.Increased contact area,reducing power consumption,reducing the temperature rise.
2.The busbar is in the insulation tank,The human does not touch the charged body.so it is safe,reliable,time-saving,convenient and cheap.
3.Made of pure copper,Good conductivity,low contact resistance and complete specifications.
4.Current:32/40/63/80/100A
5.Applicable ambient temperature:-25ºC~+50ºC

Specifications	Pole	A	B	C	D	E	Cross section (mm2)	Max current (A)
PIN	1P 2P 3P 4P	1.2	5	4	18	11.5	6	32
PIN	1P 2P 3P 4P	1.2	7	4	18	11.5	8	50
PIN	1P 2P 3P 4P	1.5	7	4	18	11.5	10	63
PIN	1P 2P 3P 4P	1.5	9	4	18	11.5	13	80
PIN	1P 2P 3P 4P	1.8	9	4	18	11.5	16	100
PIN	1P 2P 3P 4P	2.0	10	4	18	11.5	20	120
