3p 63A MCB Pin Type Copper Busbar

Name: 3p 63A MCB Pin Type Copper Busbar
Brand: all-electronics-online.com
SKU: 714978895
Availability: InStock
Rating: 4.6 (130 reviews)

Price:	US $ 0.8/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1000/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	Pin type
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Application:	Wer Supply
Environmental Protection:	Resistance to Environmental
Connection Mode:	In-Line Connector
Shape:	Rectangle
Contact Termination Form:	Welding Connection

Product Description

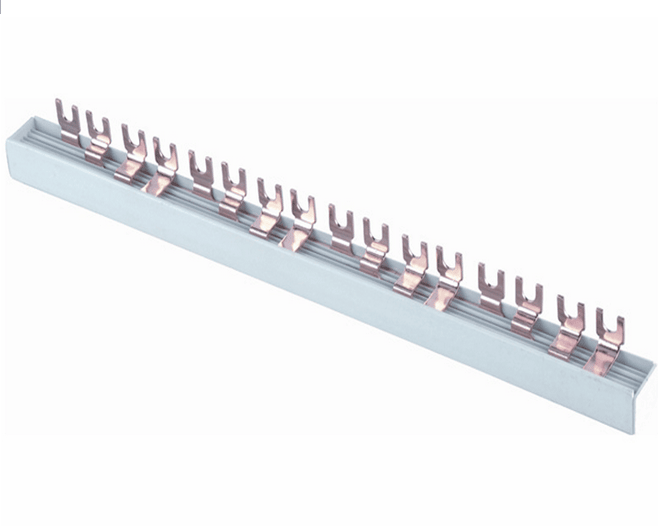

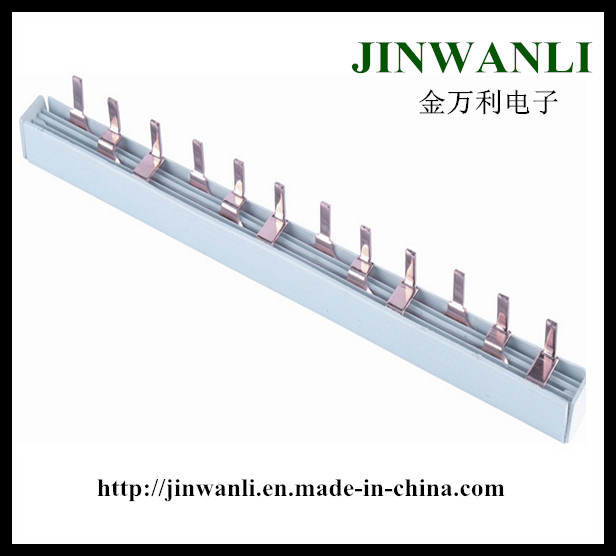

3P 63A MCB pin type copper busbar

Specifications

1.3P 63A MCB pin type copper busbar
2.Competitive price
3.OEM services
4.PIN type 3P
5.CE ROHS

Product Description of 3P 63A mcb copper busbar:

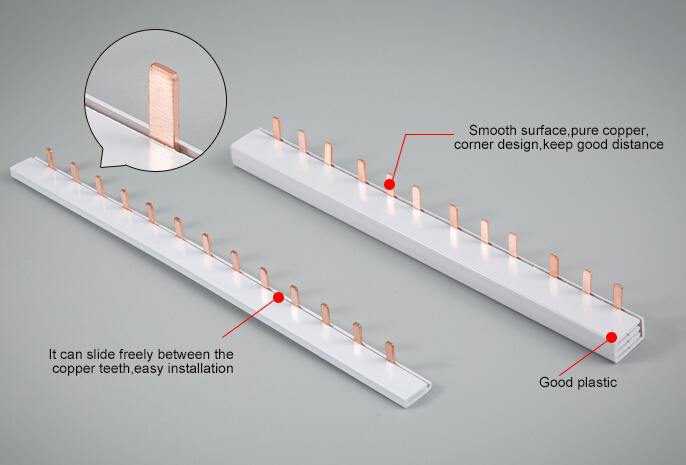

Terminal Block Connector Pure Copper Busbar is used for kinds of circuit breaker, copper busbar ease wiring electrical item,enlarge area, decrease temperature rise and thus increase the electric reliability of electrical items.

Technical features of 1P 63A mcb copper busbar :
1. Material is of fire-resistant PVC and redl copper
2. Current rating is up to 100A
3. Rated voltage is up to 415V
4. Applicable ambient temperature -25~+50
5. Standard length 1m, other length tol be made upon request.

6. Good conductivity, low contact resistance, safe and reliable.

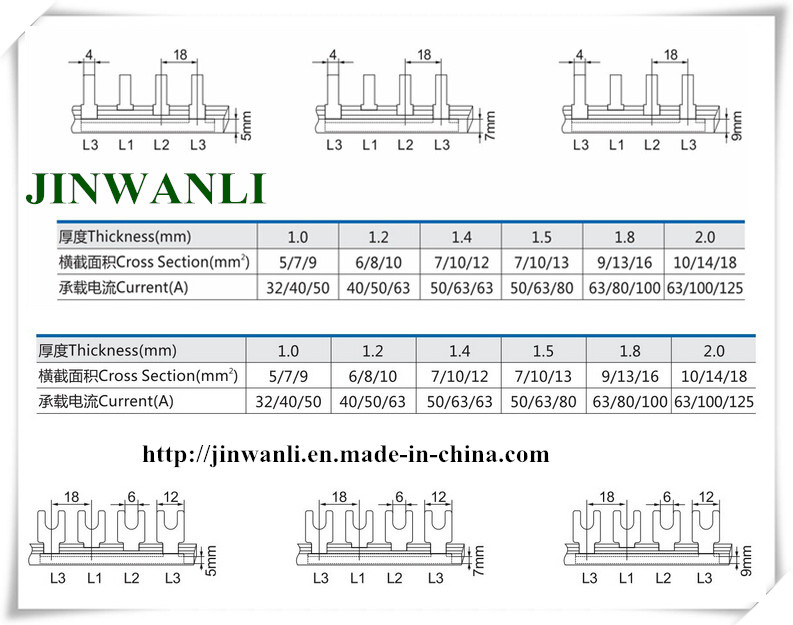

Specifications	Pole	A	B	C	D	E	Cross section (mm2)	Max current (A)
PIN	1P 2P 3P 4P	1.2	5	4	18	11.5	6	32
PIN	1P 2P 3P 4P	1.2	7	4	18	11.5	8	50
PIN	1P 2P 3P 4P	1.5	7	4	18	11.5	10	63
PIN	1P 2P 3P 4P	1.5	9	4	18	11.5	13	80
PIN	1P 2P 3P 4P	1.8	9	4	18	11.5	16	100
PIN	1P 2P 3P 4P	2.0	10	4	18	11.5	20	120

Our company is a key electrical accessories manufacturer of terminal blocks and other cable accessories in China.

Our company is located in Yueqing, Wenzhou City, Zhejiang Province. It is a manufacturing and export company, specialized in producing components for kinds of lights, automobile and so on. They have gone through many authentications such as CQC, CE, RoHS. The main products are terminal blocks and wires, cable ties, cable clips, cable glands and copper inserts. They have entered the mafket of most parts in the world including Europe, the Middle East and Latin America. They are of good quality and sell well in many countries.

Our company manufactures products strictly according to IEC and national GB standards, and we have established a complete and improved quality management system according with ISO9002 standard system, We guarantee the products with competitive price, high quality and timely delivery. Besides, we can supply a complete set of after-sales service to our customers and help term expand their local market share.

We welcome you to contact us for more information and we are looking forward to chances of creating a long and mutually beneficial partnership with you. We do hope to cooperate very very well and develop rapidly with our joint efforts for mutual benefits.
