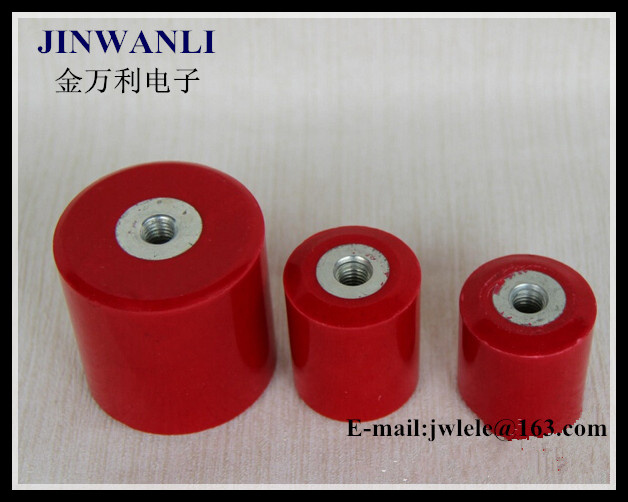

Mns Series Insulating Connector /Bus Bar Insulator Mns Series

Name: Mns Series Insulating Connector /Bus Bar Insulator Mns Series
Brand: all-electronics-online.com
SKU: 718043855
Availability: InStock
Rating: 4.3 (104 reviews)

Price:	US $ 0.178/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1000/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Application:	Low-voltage
Material:	Composite Polymer
Structure:	Bushing Insulator
Type:	B Type Insulator
Brand:	Jwl

Product Description

1.Specification:
1.Size:MNS:60X60,MNS:60X40,MNS:40X40,MNS:40X50 and so on.
2.Variety of Screw M5, M6, M8, M10, M12
3.Made of bulk molding compound, unsaturated polymer with fiber glass(BMC, DMC),
4.Good electrical resistance, heat resistance, fire resistance, low shrinkage and water resistance properties

1,Therminal Insulator Requirements
A, Operating Temperature:-40~+140
B, Insert:Brass. Steel with Zn coating
C, Matenial:BMC(Bough Moulding Compound) SMC(Sheet Moulding Compound)
D, Colour,Insert,mateerial In capability accordance with customer needs

Technical Requirement

1. The coper contact to earth shall withstand power frequency test voltage(effective value )of 42kv for 5 minutes and lightning impulse vpltage (peak value)of 75KV;

2. The temperature of lead-out terminal shall not bemore than 65º C if the contact box is used for long time in rated current condition.

MNS30 size
High(mm)	Whorl
30	M6
40
50
60

MNS series busbar insulator packing information:

MODEL (diameter*high)	Insert Material	Insert/ thread depth	COLOR	PCS/CARTON	HIGH	MOQ
MNS30*30	iron	M6*10	red	500	30	1000
MNS40*40	iron	M8/M10*14	red	200	40	1000
MNS40*50	iron	M8/M10*14	red	200	50	1000
MNS40*60	iron	M8/M10*14	red	100	60	1000
MNS50*50	iron	M10/M12*14	red	180	50	1000
MNS50*60	iron	M10/M12*14	red	100	60	1000
MNS60*40	iron	M10/M12*14	red	100	40	1000
MNS60*60	iron	M10/M12*14	red	100	60	1000
MNS60*80	iron	M10/M12*14	red	50	80	1000

Our company is a key electrical accessories manufacturer of terminal blocks and other cable accessories in China.

Our company is located in Yueqing, Wenzhou City, Zhejiang Province. It is a manufacturing and export company, specialized in producing components for kinds of lights, automobile and so on. They have gone through many authentications such as CQC, CE, RoHS. The main products are terminal blocks and wires, cable ties, cable clips, cable glands and copper inserts. They have entered the mafket of most parts in the world including Europe, the Middle East and Latin America. They are of good quality and sell well in many countries.

Our company manufactures products strictly according to IEC and national GB standards, and we have established a complete and improved quality management system according with ISO9002 standard system, We guarantee the products with competitive price, high quality and timely delivery. Besides, we can supply a complete set of after-sales service to our customers and help term expand their local market share.

We welcome you to contact us for more information and we are looking forward to chances of creating a long and mutually beneficial partnership with you. We do hope to cooperate very very well and develop rapidly with our joint efforts for mutual benefits.
