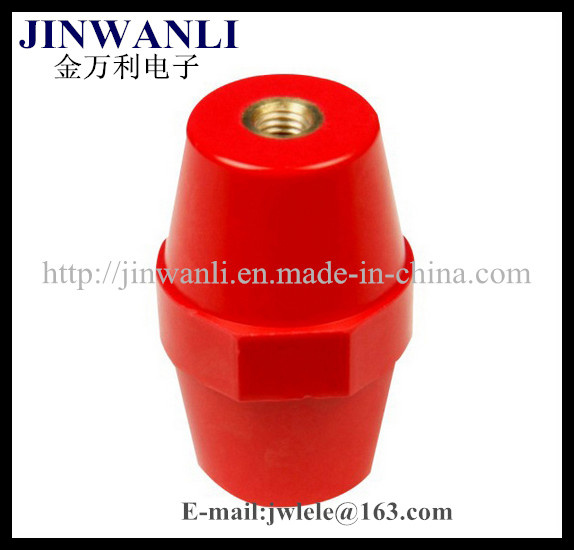

Sm76 Busbar Insulator with Screws Low Voltage Standoff Busbar Insulator

Name: Sm76 Busbar Insulator with Screws Low Voltage Standoff Busbar Insulator
Brand: all-electronics-online.com
SKU: 767395075
Availability: InStock
Rating: 4.7 (133 reviews)

Price:	US $ 0.22/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1000/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	Sm25, Sm30, Sm35, Sm40, Sm51
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Application:	Low-voltage
Material:	Composite Polymer
Structure:	Bushing Insulator
Type:	B Type Insulator
Brand:	Jwl

Product Description

Specifications
Busbar Insulator SM25
1.Low voltage insulator
2.electrical resistance
3.heat,fire,water resistance
4.low shrink

Busbar Insulator SM25 SM30 SM 35 SM40 SM51 SM76
Low voltage insulators,
1) Material: DMC, bulk molding compound, unsaturated polymer with fiber glass
2) Good electrical resistance, heat resistance, fire resistance, low shrinkage and water resistance properties

Product details:

Item	Tensile strength (LBS)	Torgue Strength (FT LBS)	Voltage withstand (KV)	Screw (mm)	Weight (G)
SM-25	500	6	6	6	28
SM-30	550	8	8	6/8	44
SM-35	600	10	10	6/8	50
SM-40	650	10	12	6/8	86
SM-45	1000	20	15	8/10	70
SM-51	1000	20	15	8/10	83
SM-60	1500	40	25	10/12	170
SM-76	1500	40	25	10/12	233

SM series busbar insulator packing information:
type carton size(cm) quantity(pcs) weight(kg)

SM25	33.53230.5	1000	28
SM30	37.518.533.5	500	23
SM35	37.518.533.5	400	22
SM40	4321.528.5	300	25.5
SM51	40.52035.5	300	25.5
SM76	553726.5	150	31

Values	Style
Values	SM-25	SM-30	SM-35	SM-40	SM-51	SM-76
Temsile strength(lbs)	500	550	600	650	1000	1500
Torgue strength(fr lba)	6	8	10	10	20	40
Voltage withstand(kv)	6	8	10	12	15	25
Screw(mm)	6	8	8	8	8	10
Weight(g)	28	44	50	56	83	233

Our company is a key electrical accessories manufacturer of terminal blocks and other cable accessories in China.

Our company is located in Yueqing, Wenzhou City, Zhejiang Province. It is a manufacturing and export company, specialized in producing components for kinds of lights, automobile and so on. They have gone through many authentications such as CQC, CE, RoHS. The main products are terminal blocks and wires, cable ties, cable clips, cable glands and copper inserts. They have entered the mafket of most parts in the world including Europe, the Middle East and Latin America. They are of good quality and sell well in many countries.

Our company manufactures products strictly according to IEC and national GB standards, and we have established a complete and improved quality management system according with ISO9002 standard system, We guarantee the products with competitive price, high quality and timely delivery. Besides, we can supply a complete set of after-sales service to our customers and help term expand their local market share.

We welcome you to contact us for more information and we are looking forward to chances of creating a long and mutually beneficial partnership with you. We do hope to cooperate very very well and develop rapidly with our joint efforts for mutual benefits.
