Epoxy Insulator Connector Sm 40 Bus Bar Insulator

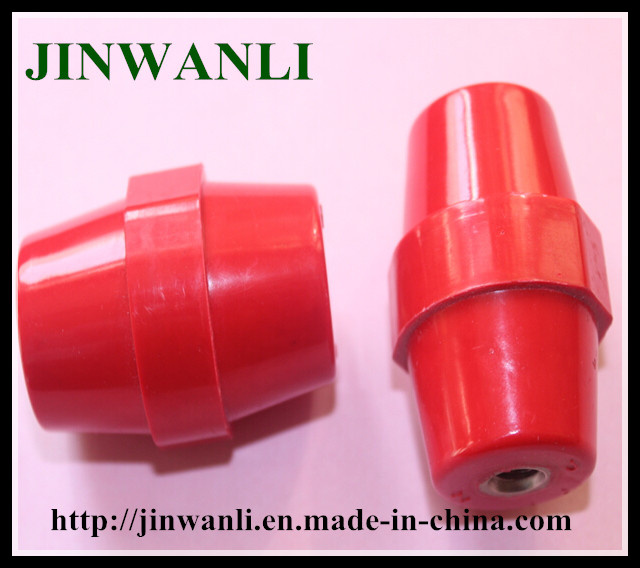

Name: Epoxy Insulator Connector Sm 40 Bus Bar Insulator
Brand: all-electronics-online.com
SKU: 764802415
Availability: InStock
Rating: 4.9 (96 reviews)

Price:	US $ 0.18/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1000/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Application:	Low-voltage
Material:	Composite Polymer
Structure:	Shackle Insulator
Type:	B Type Insulator
Brand:	Jwl

Product Description

SM series Bus bar insulators:

1. Made from bulk molding compound, unsaturated polymer with fiber glass
2. Tensile strength(LBS): 600
3. Voltage withstand(KW): 10
4. Screw(mm): 6/8
5. Good electrical resistance, heat resistance, fire resistance, low shrinkage and water resistance properties.

SM-25 tensile strength: 500lbs, tongue strength: 6lbs, withstanding voltage: 6kv, screw: 6mm, weight: 28g

SM-30 tensile strength: 550lbs, tongue strength: 8lbs, withstanding voltage: 8kv, screw: 8mm, weight: 30g

SM-35 tensile strength: 600lbs, tongue strength: 10lbs, withstanding voltage: 10kv, screw: 8mm, weight: 50g

SM-40 tensile strength: 650lbs, tongue strength: 10lbs, withstanding voltage: 12kv, screw: 8mm, weight: 86g

SM-51 tensile strength: 1, 500lbs, tongue strength: 40lbs, withstanding voltage: 15kv, screw: 8mm, weight: 83G

SM-76 tensile strength: 650lbs, tongue strength: 10lbs, withstanding voltage: 25kv, screw: 10mm, weight: 233G

Type	Dimension (mm)					Screw (mm)		Tensile	Voltage	Torgue
	Dimension (mm)					Screw (mm)		strength	withstand	strength
	A	B	C	D	Fig.	Dia.	Depth	(LBS)	(KV)	(FT LBS)
SM-20	20	Φ15	17	5	Fig. 1	M5	7	300	5	4
SM-25S	25	Φ15	19	6	Fig. 1	M6	8	400	6	5
SM-25	25	Φ23	30	10	Fig. 2	M6	9	500	6	6
SM-30	30	Φ27	32	10	Fig. 1	M8	11	550	8	8
SM-35	35	Φ28	32	10	Fig. 1	M8	11	600	10	10
SM-40	40	Φ33	40	10	Fig. 1	M8	11	650	12	12
SM-45	45	Φ30	36	10	Fig. 1	M8	11	1000	14	20
SM-51	51	Φ29	36	12	Fig. 1	M8	14	1000	15	20
SM-60	60	Φ34	46	13	Fig. 1	M10	15	1200	20	35
SM-76	76	Φ35	50	15.5	Fig. 1	M10	20	1500	25	40

Values	Style
Values	SM-25	SM-30	SM-35	SM-40	SM-51	SM-76
Temsile strength(lbs)	500	550	600	650	1000	1500
Torgue strength(fr lba)	6	8	10	10	20	40
Voltage withstand(kv)	6	8	10	12	15	25
Screw(mm)	6	8	8	8	8	10
Weight(g)	28	44	50	56	83	233

Our company is a key electrical accessories manufacturer of terminal blocks and other cable accessories in China.

Our company is located in Yueqing, Wenzhou City, Zhejiang Province. It is a manufacturing and export company, specialized in producing components for kinds of lights, automobile and so on. They have gone through many authentications such as CQC, CE, RoHS. The main products are terminal blocks and wires, cable ties, cable clips, cable glands and copper inserts. They have entered the mafket of most parts in the world including Europe, the Middle East and Latin America. They are of good quality and sell well in many countries.

Our company manufactures products strictly according to IEC and national GB standards, and we have established a complete and improved quality management system according with ISO9002 standard system, We guarantee the products with competitive price, high quality and timely delivery. Besides, we can supply a complete set of after-sales service to our customers and help term expand their local market share.

We welcome you to contact us for more information and we are looking forward to chances of creating a long and mutually beneficial partnership with you. We do hope to cooperate very very well and develop rapidly with our joint efforts for mutual benefits.
