Yueqing City Jinwanli Electronic Component Factory >> Low Voltage Sm Bus Bar Insulator with Good Tensile Stength

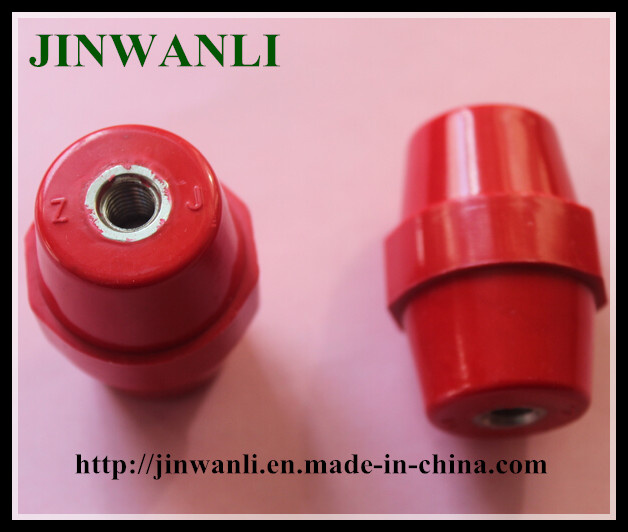

Low Voltage Sm Bus Bar Insulator with Good Tensile Stength

Low Voltage Sm Bus Bar Insulator with Good Tensile Stength
Price: US $ 0.2/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 1000/Piece
Pay Type: L/C,T/T,Western Union,Paypal
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Application: Low-voltage
Structure: Antifouling Insulator
Type: B Type Insulator
Brand: Jwl

Product Description

Specification:

1. Size: ASM-35, ASM-40, ASM51, ASM76, ASM-7110, ASM-7120
2. Variety of Screw M5, M6, M8, M10, M12
3. Made of bulk molding compound, unsaturated polymer with fiber glass(BMC, DMC),
4. Good electrical resistance, heat resistance, fire resistance, low shrinkage and water resistance properties
5. Operating Termperature: -40--+140C;
6. Insert Parts: Brass;

Trade Terms
1. Payment: 1) 30% in advance, balanced 70% to be paid before dispatch. 2) L/C
2. Port of loading: Ningbo, Wenzhou or Shanghai Port
3. Discounts: Offered based on order quantities
4. Delivery time: 10-30 days according to order quantities.

ModelASM-35ASM-40ASM-51ASM-76ASM-7110ASM-7120
tensile strength (LBS)600650100015008001200
Flexural strength(FT LBS)101215251015
Dielectric(KV)101220401035
Screw thread(mm)8108108/1010
Screw depth(mm)1113121310/1313

technical parameters of ASM series Low Voltage insulator:
tensile strength(LBS)1500
voltage  withstand(KV)25
torque(FT LBS)40
screw thread(mm)10
Thread depth(mm)13

Our company is a key electrical accessories manufacturer of terminal blocks and other cable accessories in China.

Our company is located in Yueqing, Wenzhou City, Zhejiang Province. It is a manufacturing and export company, specialized in producing components for kinds of lights, automobile and so on. They have gone through many authentications such as CQC, CE, RoHS. The main products are terminal blocks and wires, cable ties, cable clips, cable glands and copper inserts. They have entered the mafket of most parts in the world including Europe, the Middle East and Latin America. They are of good quality and sell well in many countries.

Our company manufactures products strictly according to IEC and national GB standards, and we have established a complete and improved quality management system according with ISO9002 standard system, We guarantee the products with competitive price, high quality and timely delivery. Besides, we can supply a complete set of after-sales service to our customers and help term expand their local market share.

We welcome you to contact us for more information and we are looking forward to chances of creating a long and mutually beneficial partnership with you. We do hope to cooperate very very well and develop rapidly with our joint efforts for mutual benefits.
