Name: Terminal Blocks Connector in China
Brand: all-electronics-online.com
SKU: 728098695
Availability: InStock
Rating: 4.5 (87 reviews)

Price:	US $ 1.31-9.80/Piece
Trade Terms:	FOB
Min Order:	1000/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	JN-025
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Port:	Ningbo or Shanghai
Inserts:	Brass
Material:	Plastic
Qualification Certificate:	CE, RoHS, En, Ukas, SGS
Environmental Protection:	General
Shape:	Rectangle
Application:	Battery
Contact Termination Form:	Screws Fixed
Connection Mode:	Push-Pull Connection

Product Description

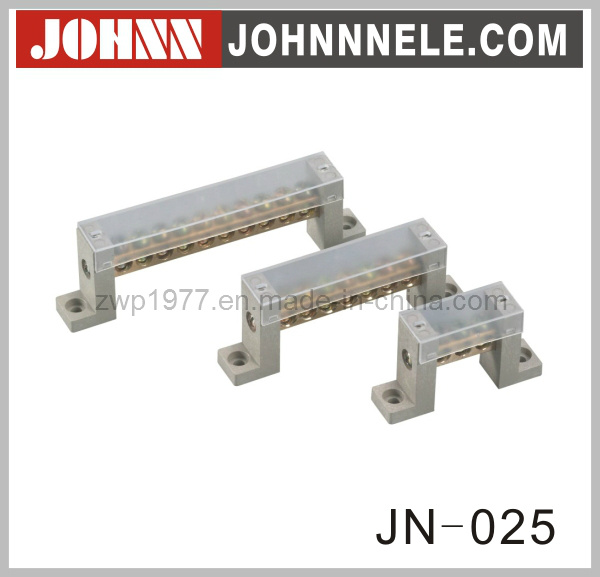

Detailed Information of JN-025Type Terminal Block

1. Model Number: JN-025Type

2. Material: Plastic

3. Inserts: Copper

4. HS Code: 8536900000

5. Samples: JN-025 Type Terminal Block's samples is available.

6. Material Feature:

* ABS, good resist dissolve, good bounce impact fore. Working Temperature: - 20º C to 70º C.
* Brass Screw is iron plated zinc.
* Volteage: 250-450V
* Color: Accordng sample picture or customized.

7. Qualification Certificate: CE, RoHS, EN, UKAS, SGS.

8. Delivery Time: Within 25 days after receipt deposit.

9. Delivery Methods: By Sea or By Air (Express DHL, Fadex, TNT).

10. Payment Terms: L/C, T/T, Western Union, Money Gram; 30% deposit, balance see the copy of B/L by email or negotiation.

11. Unit Price: The price is negotiable.

12. Why choose our terminal blocks?

The barrier terminal blocks are a devive that joins wires or cables. Barrierer terminal blocks typically snap into a metal rail or are srew-mounted on the panel of a control enclosure.

Terminal blocks have been around a long time, but they are still popular choices as inter connect solutions and continue to envolve based on users' current application needs

Our barrier terninal blocks are screw-in terminal blocks contain wires housed inside the block and screwed into position. They are often used for equipment that does not required high voltage protection.

Way	Spec.	L(mm)	L1(mm)	L2(mm)	H(mm)	W(mm)	Diameter	Screw Size	Plastic Setting
3	7*10	33	59.5	49.5	35	15	6.5	M5*9	ABS
4	7*10	41	67.5	57.5	35	15	6.5	M5*9	ABS
5	7*10	49	75.5	65.5	35	15	6.5	M5*9	ABS
6	7*10	57	83.5	73.5	35	15	6.5	M5*9	ABS
7	7*10	65	91.5	81.5	35	15	6.5	M5*9	ABS
8	7*10	73	99.5	89.5	35	15	6.5	M5*9	ABS
10	7*10	90	116.5	106.5	35	15	6.5	M5*9	ABS
12	7*10	106	132.5	122.5	35	15	6.5	M5*9	ABS
15	7*10	130	156.5	146.5	35	15	6.5	M5*9	ABS
3	9*15	46	68	58	35	15	9(2*10)	M5*12	ABS
5	9*15	68	90	80	35	15	9(2*10)	M5*12	ABS
7	9*15	90	112	102	35	15	9(2*10)	M5*12	ABS
8	9*15	101	123	113	35	15	9(2*10)	M5*12	ABS
10	9*15	123	145	145	35	15	9(2*10)	M5*12	ABS
12	9*15	145	167	167	35	15	9(2*10)	M5*12	ABS
15	9*15	178	200	200	35	15	9(2*10)	M5*12	ABS

Our Yueqing Jianghong electrical appliance factory is a new style manufacturer whom focuses on the research and development of Miniature circuit breaker, terminal block and electric accessories in China. Our Products had exported to Middle East countries, South Asia, Africa USA, Europe, Africa and South America etc more than 20 countries by feedback good reputation. Jianghong found in year 2004, after several years ' improvement, from a small workshop developing to a team working includes design and research department, international department, financial department. One the way to the bright tomorrow, Jianghong Electrical which passed ISO9000 system are striving to put the quality as the basis of development, all our circuit breaker and terminal block are strict to according national and international standard. Most of them were approved by CE& RoHS certificate and all electric breaker compliance to IEC standard. Sincerely work with you to create a better tomorrow.
