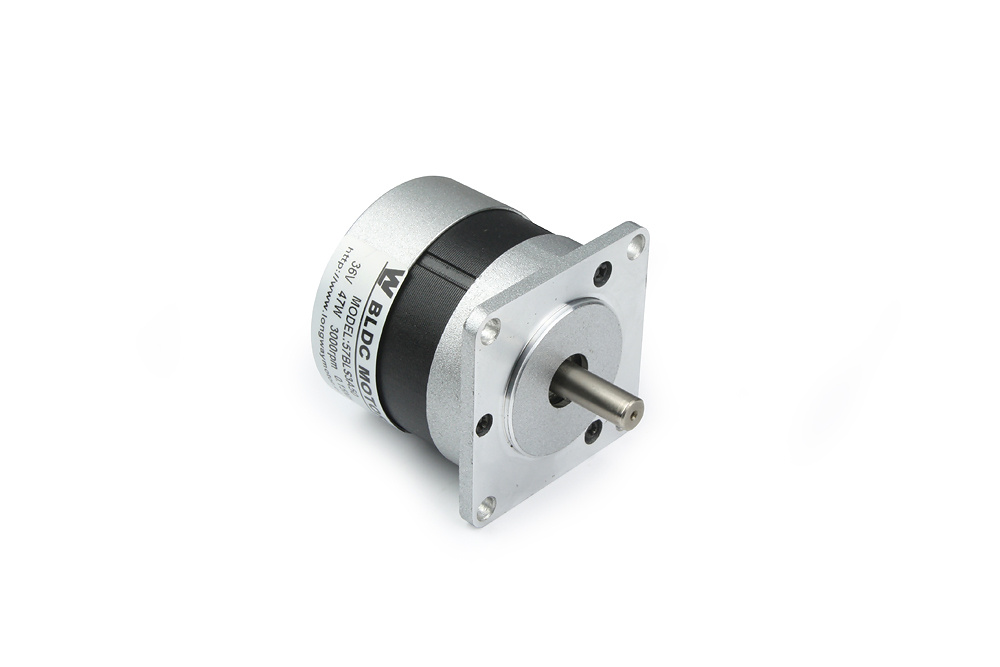

Textile Brushless Motor (57BL)

Name: Textile Brushless Motor (57BL)
Brand: all-electronics-online.com
SKU: 671469545
Availability: InStock
Rating: 4.8 (135 reviews)

Price:	US $ 25PC
Trade Terms:	FOB,EXW,others
Min Order:	1/Piece
Pay Type:	L/C,T/T,Paypal,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	57BL
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Application:	Power Tools
Operating Speed:	Constant Speed
Excitation Mode:	Excited
Structure And Working Principle:	Brush

Product Description

Hall effect angle 120 degree electriacl angle
Shaft run out 0.025mm
Radial play 0.06mm@450g
End play 0.08mm@450g
Max. Radial force 75N@20mm from the flange
Max. Axial force 15N
Insulation class Class B
Dielectric Strength 500VDC for one minute
Insulation resistance 100MΩMin. 500VDCGeneral Specifications

Model No.	No. of Phase	Rated Voltage	Line to line resistance	Rated Speed	Rated Torque	Max torque	Rated Power	Back W. M. F	Mass	Body length
		VDC	Ohms	rpm	N. m	N. m	W	V/KRPM	Kg	mm
YKBL57-001	3	36	4.1	4000	0.055	0.16	23	5.55	0.35	42
YKBL57-002	3	12	1.0	2945	0.02	0.13	6	3.0
YKBL57-003	3	24	1.9	1600	0.188	0.28	31	4.5	0.5	52
YKBL57-004	3	36	1.05	6000	0.08	0.25	50	3.35
YKBL57-005	3	36	0.7	4000	0.22	0.7	92	6.6	0.75	72
YKBL57-006	3	36	0.45	4000	0.32	1.0	133	6.6	1.0	92
YKBL57-007	3	36	0.35	4000	0.43	1.27	180	6.6	1.25	112

Ningbo Yinzhou Longway Technology Co., Ltd. is a professional motor, machinery and electronic products manufacturer in China. Since day one after its establishment, our company has spared no efforts in developing new products and optimizing them. A comprehensive and consistent quality system has been since long established, from design to production, form marketing to after sale service. Our company attaches great importance to employee training. It pays off when the quality of each and every one of our employees keeps improving. Now the motor products include PMDC motors, brushless motors, stepping motors, AC and DC gear motors, synchronous motors, brushless servo motors. Most of products are CE, UL approved. We can also complete OEM/ODM orders in accordance with clients' specific requirements, designs and samples.

The advanced technologies of design and manufacturing were adopted from Germany. We take pride in the CAD/cam mould tooling center and the testing center. We enjoy an excellent reputation in Europe, America, Australia, Middle East, and southeast Asia as well as in China.

"satisfactory products plus satisfactory services" makes our success happen. We sincerely hope to have and also thank for valuable supports and cooperation from all friends in the world.
