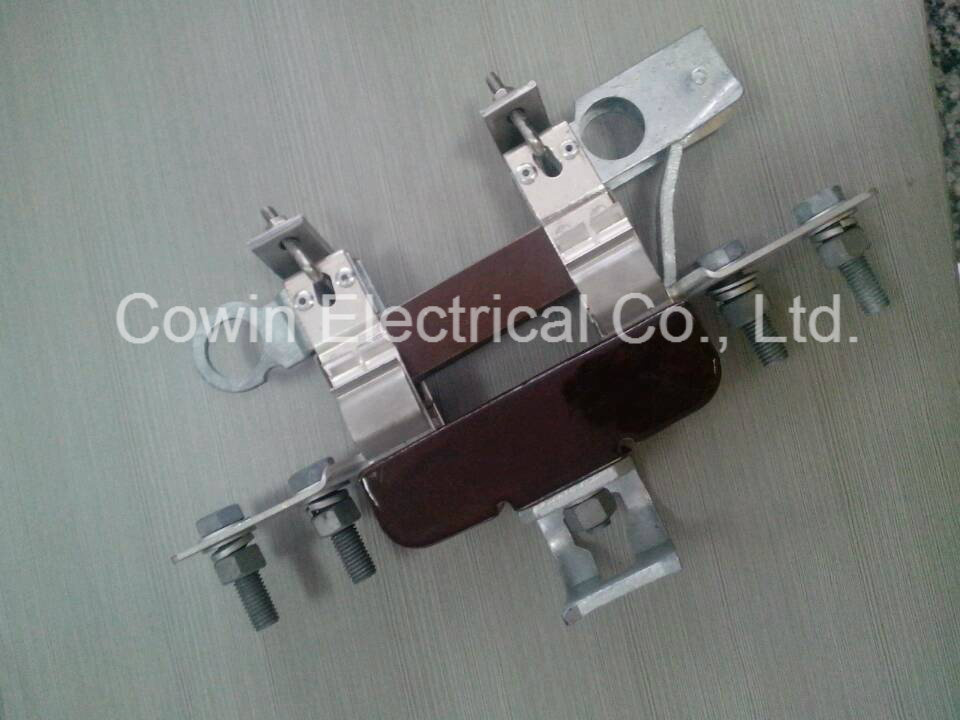

Thailand Myanmar Low Voltage Fuse Switch

Name: Thailand Myanmar Low Voltage Fuse Switch
Brand: all-electronics-online.com
SKU: 726278345
Availability: InStock
Rating: 4.6 (93 reviews)

Price:	US $ 10/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	100/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	CELT-400A
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Rated Operation Voltage:	500V
Rated Insulation Voltage:	1000V
Rated Frequency:	50Hz
Rated Impulse Withstand Voltage:	12kv
Rated Condition Shor-Circuit Current:	50ka
Creepage Distance Min:	32mm
Usage:	Electrical
Material:	Porcelain,Copper
Installation:	Knife Type
Brand:	Cowinelec

Product Description

Feature:

- Design and manufature accordance to IEC 60947-3
- Suits HRC fuse bolted connections type size B1 to B4 and blade contacts type size 0 to 2 accordance to 60269-2-1
- Single pole - Single throw switch
- Rated maximum voltage 500V and 400A maximum current
- Suits NEMA PAD 2 Holes terminal
- Suits standard hook-sticks
- On-load switching capability

Specifications:
1) Rated operation voltage V-RMS 500
2) Rated insulation voltage V-RMS 1000
3) Rated frequency Hz 50
4) Rated impulse withstand voltage kV-peak 12
5) Rated condition shor-circuit current kA-RMS 50
6) Creepage distance Min. mm 32

Applied standard	IEC 60947-3
Rated operation voltage V-RMS	500
Rated insulation voltage V-RMS	1000
Rated operation current with fuse link A-RMS	400
Rated frequency Hz	50
Rated condition short-circuit current kA-RMS	50
Rated impulse withstand voltage kV-peak	12
Rated make-break current at 0.65 PF, 5 operation cycle A-RMS	600
Creepage distance Min. mm	32
Utilization category	AC-21B
Infrequent operation with current	220
Infrequent operation without current	1400
Degree of protection	IP00
Approximate overall weight kg.	2.8

PROFESSOINAL: High Voltage Electrical Materials and Poleline Hardwares

Cowin Electrical Co., Ltd, is located in the largest manufacturing base of low-voltage electric equipment of Liushi China, which is called "the Electric Device Metropolis of China".

Cowin regards quality of products as life. We have standard Management System. We produce and widely sell over 300 series, more than 10000 types in high-and-low voltage electrical device, complete equipment, power transformer, cable and wire, instrument and meter, welding equipment, which are praised by all users. A number of new independent intellectual property right, intelligent appliances is moving into the market.

We are keeping our business principles for "Approaching the first-class management, producing the first-class products, providing the first-class service". All Cowin staffs are working hard and constantly innovate.

Honest Cowin are welcome to all users to fighting a better tomorrow hand in hand, Cowin -Cooperation and doulbe win.
