| Prod Model: |
MJ-3240 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Density: |
More Than 2.0g/cm3 |
| Size: |
1220X980mm |
| Delivery: |
7-10 Working Days |
| Appliction: |
for Motor & Generator |
| Samples: |
Free Samples Are Welcome |
| Formation Methods: |
High Temperature and High Pressure |
| Tensile Strength: |
More Than120 MPa |
| Customizable: |
Yes |
| MOQ: |
1 Piece |
| Application: |
Generator |
| Type: |
Insulation Sheet |
| Chemistry: |
Hybrid Insulation |
| Material: |
Fiberglass |
| Thermal Rating: |
B 130 |
| Maximum Voltage: |
>100KV |
| Brand: |
Mj |
Product Description
Feature:
Excellent mechanical property
Heat resistance property
Excelletn magnetic permeability
Energy-saving & Environmental protection
Application:
Motor and generator groove strip/slot wedge
Reduce the motor loss, temperature rising, noise and etc
Improve the motor efficiency
Ideal energy-saving products
| Basic Information |

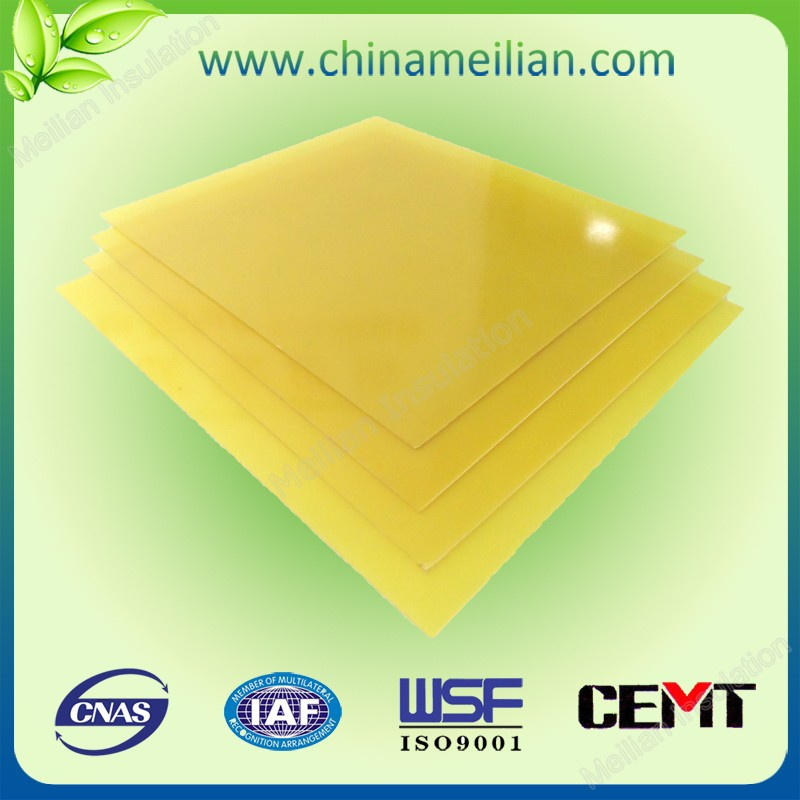

| Product name | 3240 Electrical Insulation laminate sheet |
| Item No. | MJ-3240 |
| Brand | MJ |
| Material | BMI resin and Alkali free fiberglass cloth |
| Grade | Grade B |
| Technical Specification |
| Density | ≥1.7g/cm 3 |
| Appearance | Natural color Dark brown, surface smoothly
without bubble and impurities, no flow marks,
Cutting edge without fault and separation |
| Sheets Thickness | 0.1-50mm |
| Size | ≥1220x980mm |
| Formation methods | High temperature and high pressure |
| Thermal stability in 24h | ≥220°C |
| Water absorption | ≤1.0% |
Impact strength parallel to layer
(Charpy method) | ≥34.5 KJ/m 2 |
| Tensile strength | ≥3000 Mpa |
Flexural strength perpendicular to layer
at room temperature
at high temperature 180±2°C |
≥345 MPa
≥340 MPa |
Dissipation factor
Under 50 Hz
Under 1MHz. |
0.032 |
Voltage resistance parallel to layer
(at 90°C±2°C oil for 1min) |
≥30 kV |
| Insulation resistance parallel to the layer | ≥5.1×10 8 MW |
| Dielectric Strength perpendicular to laminations (in 90±2 °C transformer oil, 1 mm) | 10.4 KV/mm |
| Breakdown Voltage parallel to laminations (in 90±2°C transformer oil) | ≥36.1 kV |
Permittivity (50Hz)
Permittivity (50Hz) | 5
5.1 |
Our Company Covers an Area of about 5000 Square Meters, Construction Area of About 2200 Square Meters
We Take Place In Domestic & International Exhibition Fair Like CWIEME in Berlin/Shanghai, CW CIEMME in Guangdong, Cross-Straits Electric Motor & Appliance Exposition in Taiwan and etc.
We Have Over 50 Sets of Production & Testing Equipments Which Insure Us The Annual Production Capacity 360 Tons of Magnetic Conductive Sheet, 240 Tons of Insulating Sheet, 80 Tons of Insulation Varnish.Production is Strictly Under Control.
We Have Over 10 Years in Manufacting Magnetic/None-Magnetic Insulation Laminte, Slot Wedge, Insulation Tube, Fiberglass Varnish Cloth, Thermal Expansion Sheet, Insulation Varnish, Mica Tape and Processed
We have passed ISO 9001-2000 and got our own patent technology, Xi'an city Science and Technology Bureau identified us as "High-Tech Enterprises"
Our Business Scope Is All Over The World, A.O.Smith Is One of Our VIP Customers.
--------------------------------------------------------------------------------------------------------------------------------------------------------
Packaging Detail:
Thermal Glassfiber Reinforced Epoxy Resin Sheet package: Each package is not more than 100KG. Respectively, paper and plastic film cover plate, a paper packaging box, steel strapping / or according to customers' requirements.
FAQ:
(1) Can you give me a discount price?
It is depending on the volume. The larger the volume is, the more discount you can enjoy.
(2) How can I get a sample?
Normally small samples (sizes not larger than 300*300mm) can be sent free of charge and customers just need to bear a little shipping charge, or you can provide your DHL, FEDEX, EMS, UPS courier account number to us. For bigger sizes, it depends.
(3) How can you deal with quality issues that customer feedback after receiving the goods?
1) Customers take photos of unqualified goods and then our sales staff will send them to Engineering Department to verify.
2) If the issue is confirmed, our sales staff will explain the root cause and take corrective actions in coming orders.
Our company is in Xi' An high tech Development Zone, mainly producing magnetic/electrical insulation laminates, slot wedges, thermal expansion materials, insulation varnish, impregnated cloth, insulation tube/sleeve/rod and etc. Our products are widely used in the fields of wind & thermal power, aviation, railway, military power transmission, motors and transformers and etc.
We have experts in R&D group which ensure the continuity and stability of the product quality and cost. The issued testing results apply to domestic and internaltional standards.
Our company covers 5000 square meters with 4 production departments: Magnetic board, Insulating materials, High voltage electrical appliance, CNC and slot wedge processing. WIth more than 50 sets of reactor, gluing machine, large-scale equipment, hot press, high vacuum impregnation and testing equipments, our annual production capacity can totally reach 800 tons.
We are founded in 2006. By 2007-2008, we passed 9001-2000 certification, Xi' An city Science and Technology Bureau identified us as "the city of Xi' An high-tech enterprises".
The spirit of our company is: "Good Reputation, Best Products, Wonderful Services
