Thermostat Kto/Kts 011

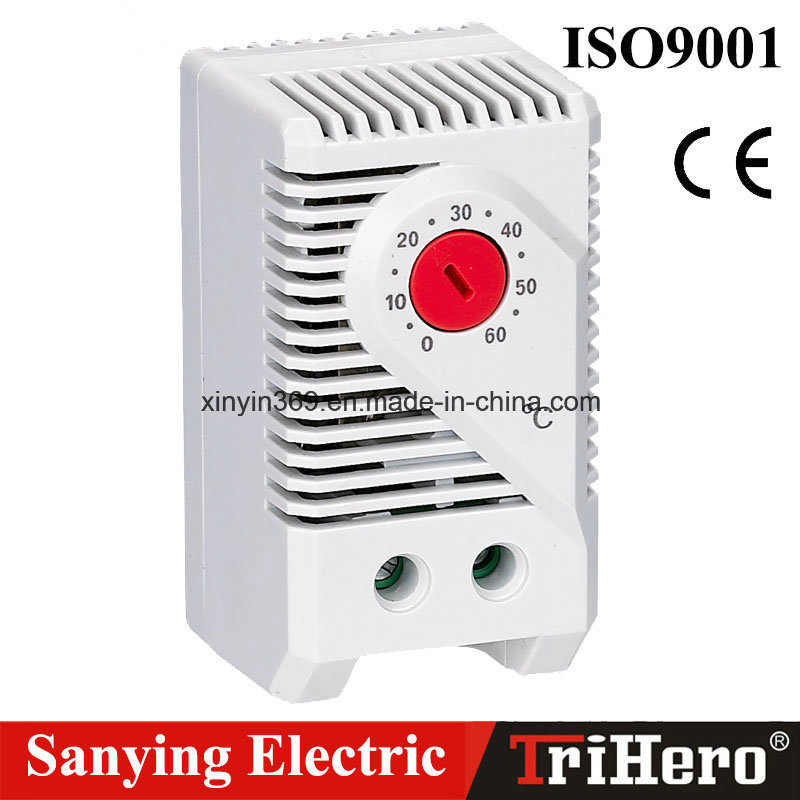

Name: Thermostat Kto/Kts 011
Brand: all-electronics-online.com
SKU: 787846475
Availability: InStock
Rating: 4.4 (92 reviews)

Price:	Negotiable/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	KTO-011
Accuracty:	5°c
Temperature Range:	0 to +60°c
Switch Temperature Difference:	7k (± 4k Tolerance)
Service Life:	> 100 000 Cycles
Mounting:	Clip for 35mm DIN Rail, En50022
Dimension:	60 X 33 X 43mm

Product Description

Hot sell Compact Electrical Thermostat Controller for Heater KTO/KTS 011

Specification:

Compact Electrical Thermostat Controller for Heater KTO/KTS 011

Thermostat (normally open); contact maker for regulating of filter fans and heat exchangers or for switching signal devised when temperature limit has been exceeded.

thermostat,dual thermometer,thermostatic,stego thermostat,thermal controller,bimetal thermostat,Thermostat KTO 011.

Advantages:

-Large setting range

-Samll size

-Simple to mount

-High switching performance

KTO 011:Thermostat (normally closed),contact breaker for regulating heaters.

KTS 011:Thermostat(normally open), contact maker for regulating of filter fans and heat exchangers or for switching signal devised when temperature limit has been exceeded.

Technical Data:

Switch temperature difference	7K (± 4K tolerance)
Sensor element	thermostatic bimetal
Contact type	snap-action contact
Contact resistance	< 10mOhm
Service life	> 100 000 cycles
Max. switching capacity	250VAC, 10 (2) A
	120VAC, 15 (2) A
	DC 30W
EMC	acc. to EN 55014-1-2, EN 61000-3-2, EN 61000-3-3
Connection	2-pole terminal, clamping torque 0.5Nm max.: rigid wire 2.5mm², stranded wire (with wire end ferrule) 1.5mm²
Mounting	clip for 35mm DIN rail, EN50022 (or for exit filter EF 118 Series)
Casing	plastic according to UL94 V-0, light grey
Dimensions	60 x 33 x 43mm
Weight	approx. 40g
Fitting position	variable
Operating/Storage temperature	-20 to +80°C (-4 to +176°F) / -45 to +80°C (-49 to +176°F)
Protection type	IP20

Setting range	Art. No. Contact Breaker (NC)	Art. No. Contact Maker (NO)	Approvals
0 to +60°C	01140.0-00	01141.0-00	CE,UL
-10 to +50°C	01142.0-00	01143.0-00	CE,UL
+20 to +80°C	01159.0-00	01158.0-00	CE,UL
+32 to +140°C	01140.9-00	01141.9-00	CE,UL
+14 to +122°F	01142.9-00	01143.9-00	CE,UL
0 to +60°C	01146.9-00	01147.9-00	CE,UL

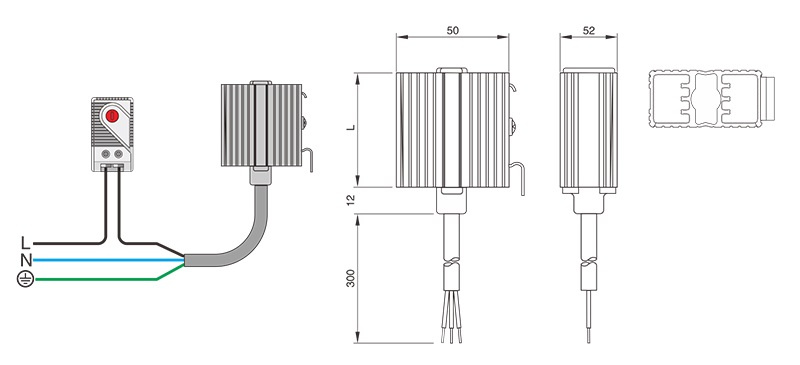

Wiring diagram:
