| Prod Model: |
BIC1280R1.9 |
| Board Thick: |
0.1mm |
| Surface Finish: |
Immersion Gold |
| Copper Thick: |
1 Oz |
| Minimum Trace and Space: |
12 Mil/12 Mil |
| Minimum / Maximum Holes: |
0.8/2.5mm |
| Solder Mask Color: |
Yellow |
| Legend Color: |
White |
| Test: |
100% Electrical Test |
| Contour/Cutting: |
Laser Cut |
| Via: |
None |
| Structure: |
Single-Sided FPC |
| Material: |
Polyimide |
| Conductive Adhesive: |
Conductive Silver Paste |
| Application: |
Bluetooth |
Product Description

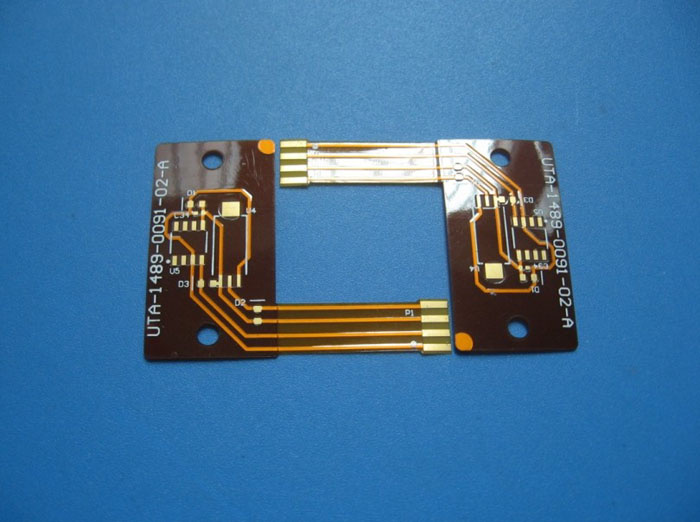

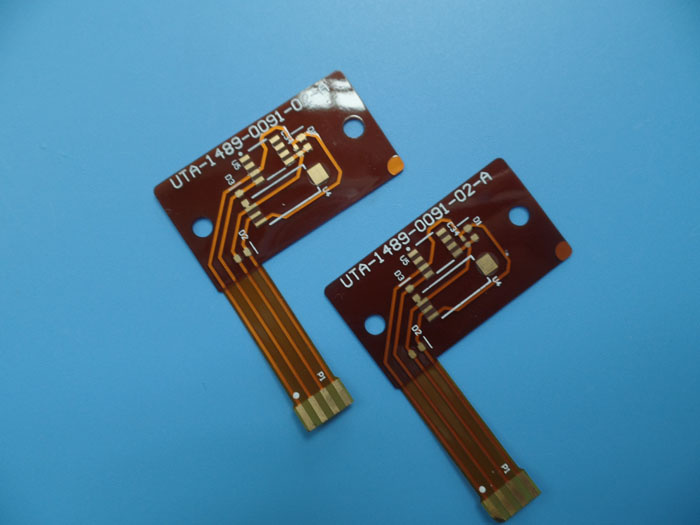

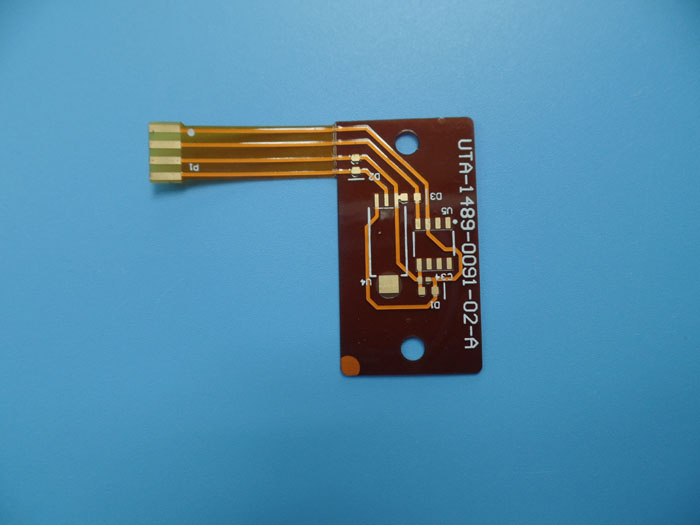

Flexible Printed Circuit (FPC) Single Sided PCB Polyimide Base Immersion Gold Applied
In Bluetooth
Commodity Introduction
This is a type of polyimide PCB for the application of Bluetooth. It's a single sided layer board at
0.1mm thick. The base laminate is from ITEQ, Solder mask and silkscreen from Taiyo. It's fabric
-ated per IPC 6012 Class 2 using supplied Gerber data. Each 10 boards or panels are packed
separately.
Parameters & Data Sheet| PCB SIZE | 45 x 33mm=1PCS |
| BOARD TYPE | |
| Number of Layers | Single sided PCB |
| Surface Mount Components | YES |
| Through Hole Components | no |
| LAYER STACKUP | copper ------- 35um(1oz) |
| Polyimide 0.1mm |
| TECHNOLOGY | |
| Minimum Trace and Space: | 12mil/12mil |
| Minimum / Maximum Holes: | 2.5mm |
| Number of Different Holes: | 1 |
| Number of Drill Holes: | 2 |
| Number of Milled Slots: | 0 |
| Number of Internal Cutouts: | 0 |
| Impedance Control | NO |
| BOARD MATERIAL | |
| Glass Epoxy: | Polyimide 0.1mm, FPC |
| Final foil external: | 1oz |
| Final foil internal: | 0oz |
| Final height of PCB: | 0.1mm ±0.05 |
| PLATING AND COATING | |
| Surface Finish | Electroless nickel over Immersion Gold (ENIG)( 1 µ" over 100 µ" nickel) |
| Solder Mask Apply To: | TOP |
| Solder Mask Color: | Yellow, Coverlay |
| Solder Mask Type: | LPSM |
| CONTOUR/CUTTING | Laser cut |
| MARKING | |
| Side of Component Legend | TOP |
| Colour of Component Legend | White, IJR-4000 MW300, Taiyo Supplied. |
| Manufacturer Name or Logo: | Marked on the board in a conductor and
leged FREE AREA |
| VIA | None Plated Through Hole(NPTH) |
| FLAMIBILITY RATING | UL 94-V0 Approval MIN. |
| DIMENSION TOLERANCE | |
| Outline dimension: | 0.0059" (0.15mm) |
| Board plating: | 0.0030" (0.076mm) |
| Drill tolerance: | 0.002" (0.05mm) |
| TEST | 100% Electrical Test prior shipment |
| APPLICATION: | Bluetooth, Converters
Portable Router
3G Speed
4G Speed
GPS For Car |
| TYPE OF ARTWORK TO BE SUPPLIED | email file, Gerber RS-274-X, PCBDOC etc |
| SERVICE AREA | Worldwide, Globally. |
Now let's look at what Bicheng PCB can help you.Various kinds of PCB products- Double sided PCB
- Multilayer PCB up to 32 layers
- FR-4 PCB (Tg130, Tg170)
- High frequency PCB (RO4350B, RO4003C)
- Aluminum PCB (1W/MK, 2W/MK, 3W/MK)
- Flexible PCB
Multiple technology on PCB- Blind via PCB, Via in pad PCB, Fine pitch BGA PCB
- Impedance controlled PCB
- Heavy copper PCB
- Hybrid material PCB
Many discount policies for new customers- SMT stencil foil, free of charge
- Prototype shipping cost, free of charge
- Prototype test, free of charge
- PCB panelization, free of charge
High quality PCB services- Prototype PCB and production PCB
- Quick turn-around prototypes
- Door to door logistic service
Founded in 2003, Bicheng Enterprise Limited is a professional PCB export enterprise. We have established a good relationship of cooperation with well-known enterprises in the same industry.
The factories have been ISO 9001-2008, ISO 14001-2004 and ISO/TS16949-2009 quality management system certified. Over the past 14 years, we have provided professional circuit board manufacturing solutions for more than 5000 companies worldwide.
Different plant scale to suit for your requirements
16000 square meter factory building
30000 square meter month capability
8000 types of PCB per month
ISO9001, ISO14001, TS16949, UL Certified
We have our own advantages to help you saving cost and time spent on PCB, booster your new products go to market quickly.
A) Various kinds of PCB products
Double sided PCB
Multilayer PCB up to 32 layers
FR-4 PCB (Tg130, Tg170)
High frequency PCB (RO4350B, RO4003C)
Aluminum PCB (1W/MK, 2W/MK, 3W/MK)
Flexible PCB
HDI PCB Board
B) Multiple PCB technology to meet the market demands
Blind via PCB, Via in pad PCB, Fine pitch BGA PCB
Impedance controlled PCB
Heavy copper PCB
Hybrid material PCB
C) Many discount policies for new customers
SMT stencil foil, free of charge
Prototype shipping cost, free of charge
Prototype test, free of charge
PCB panelization, free of charge
D) High quality PCB services
Engineering design prevents problems from occurring in pre-production.
Meet your PCB needs from prototype to mass volume production.
Eligible products rate of first production: >95%
Delivery on time: >98%, door to door shipment service
Customer complaint rate: <1%
Choose BichengPCB means you choose hassle free.
