Thin Thick PCB 1.4mm Circuit Board 6 Layer Green Soldermask
| Price: |
US $ 0.78/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Western Union,Paypal |
| Prod Model: |
BIC-2.64-V2.64 |
| Finished Thickness: |
1.4mm |
| Pth Cu Thickness: |
25.40 Um |
| Outer&Inner Layer Cu Thickness: |
1/1 Oz |
| Surface Cu Thickness: |
42.1 Um |
| Surface Finish: |
Lead- Free HASL |
| Spacing (mm): |
0.183mm |
| Solder Mask: |
Green |
| Legend: |
White |
| Trace Width (mm): |
0.202mm |
| Warp And Twist: |
0.21% |
| Type: |
Rigid Circuit Board |
| Dielectric: |
FR-4 |
| Material: |
Fiberglass Epoxy |
| Flame Retardant Properties: |
V0 |
Product Description
1.40mm Thick Multilayer 6 Layer HASL PCB mass production With Green Mask FR-4 Tg 135
in Servo Motor
Commodity Introduction

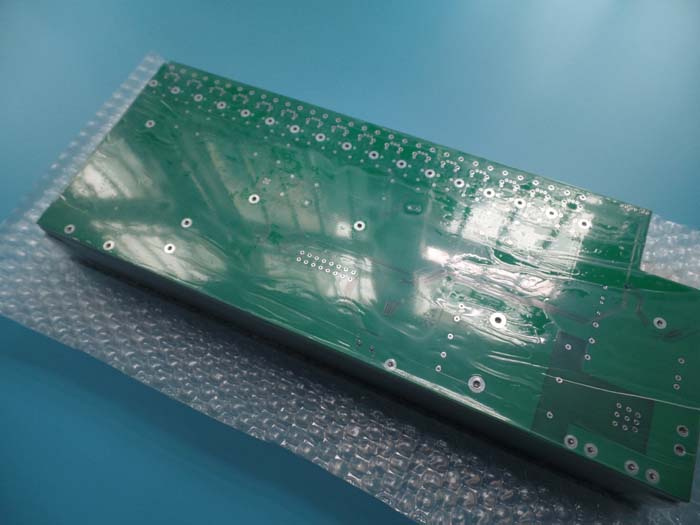

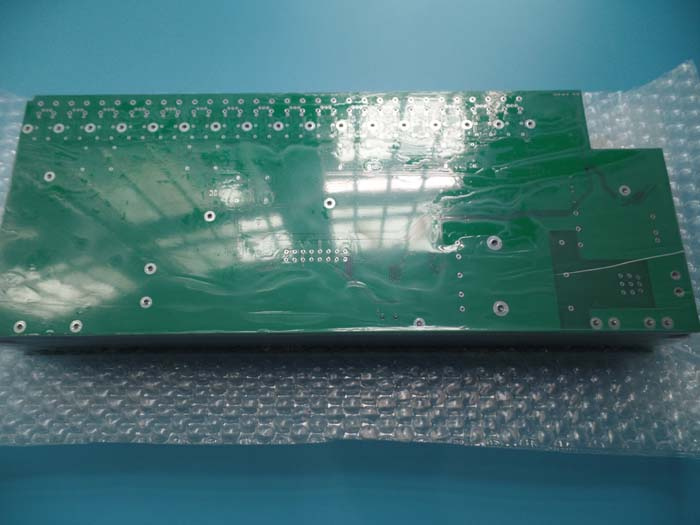

This is a type of FR-4 PCB for the application of Servo Motor. It's a 6 layer board at 1.4mm
thick.The base laminate is from ShengYi, Solder mask and silkscreen from Onstatic and Taiyo.
It's fabricated per IPC 6012 Class 2 using supplied Gerber data. Each 10 boards or panels are
packed separately.
Parameters & Data Sheet| Item | Description | Requirement | Actual |
|
| Laminate | Laminate Type | FR4:CTI:175V-249V | FR4:CTI:175V-249V |
| Supplier | SHENGYI | SHENGYI |
| Tg | TG >135 | TG >135 |
| Finished thickness | 1.4+/-10% MM | 1.62 MM |
| Plating Thickness | PTH Cu thickness | 20 um | 25.40um |
| Inner layer Cu Thickness | 1/1 OZ | 1/1 OZ |
| Surface Cu thickness | ≥35 um | 42.1 um |
| Solder Mask | Material type | R-500 3RAH | R-500 3RAH |
| Supplier | Onstatic | Onstatic |
| Color | Green | Green |
| Single / both sides | Both Sides | Both Sides |
| S/M thickness | >10 um | 35um |
| 3M tape test | NO Peel Off | no peel off |
| Legend | Material type | S-380W | S-380w |
| Supplier | Tai yo | Tai yo |
| Color | White | White |
| Location | Both Sides | Both Sides |
| 3M tape test | No peel off | No peel off |
| Circuit | Trace Width (mm) | 0.203mm | 0.202mm |
| Spacing (mm) | 0.187mm | 0.183mm |
| Identification | UL mark | NA | OK |
| Company Logo | NA | OK |
| Date code | NA | OK |
| Mark location | NA | OK |
| Surface Finish | Lead- free HASL | >4um | 7.32um |
| Reliabilty Tests | Thermal shock test | 288±5ºC,10sec,
3 cycles | NO Discolor,
NO Delamination |
| solder abllity test | 235±5ºC | 100% wetting |
| Function | Electrioal Test | 100% | pass |
| Standard | IPC-A 600H class 2,
IPC_6012C CLASS 2 | 100% | Pass |
| Appearance | Visual inspection | 100% | Pass |
| warp and twist | <= 0.75% | 0.21% |
| Others | V-Cut thickness | NA | OK |
| Angle | NA | OK |
Finished dimension (unit: mm): including v-cut| No | Required | Actual Dimension |
| 1 | 63.5 | 63.46 | 63.44 | 63.47 | 63.47 | 63.47 |
| 2 | 43.18 | 43.16 | 43.12 | 43.15 | 43.15 | 43.15 |
Hole size and slot dimension(unit: mm, PTH tolerance +/-0.076, NPTH +/-0.05mm)| No | Required | PTH/NPTH | Actual Dimension |
| 1 | 0.305 | Y | VIA | VIA | VIA | VIA |
| 2 | 0.965 | Y | 1.025 | 1.000 | 0.975 | 0.950 |
Learn PCB and Buy PCB
HASL
Hot air solder leveling is for short HASL, which is a common type of surface finish used on printed
circuit boards (PCBs). We dipped the PCBs (with exposed copper surfaces) into a bath of molten
solder, then remove the excess solder on PCB surface and in the holes by strong hot air(which we
call it HASL machine) to get a glossy layer of coating.
One is alloy of tin and lead. The temperature of smelting furnace for Tin/Led is about 240ºC.
Another one is pure tin, because lead is harmful to human body, EU has forbidden using tin/lead.
So the popular is pure tin or HASL Lead free. The temperature of smelting furnace for pure tin is
highly at 300ºC,and plus the operating environment, high temperature and high etching are great
harm on PCB itself. Due to its hot air generated, HASL has low planarity. It makes this surface
finish unsuitable for use with fine pitch components. It has hidden danger of board warp or twist
under high thermal stress. To avoid this disadvantages, high Tg material and PP are took into
consideration for some PCB user. But it also has excellent wetting during component soldering and
it can avoid copper corrosion. So it is also mostly used in single sided PCB, Double sided PCB and
some multilayer PCB.
