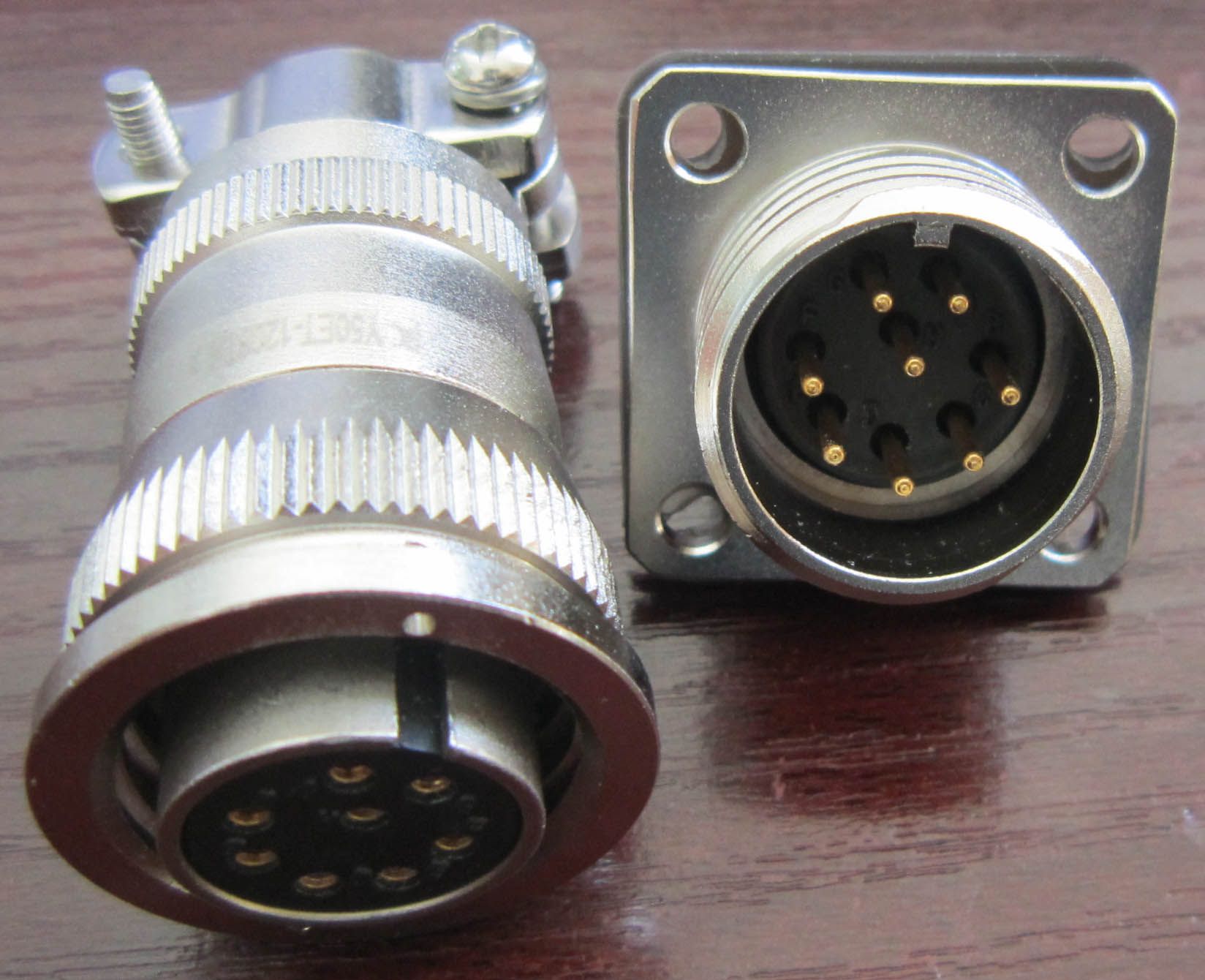

Thread Coupling 26482 Series Circular Connectors

Prod Model:	PC-1208
Size:	12-8
Connecting:	Double Thread
Number Of Contacts:	8
Size1:	PC06e12-8s

Product Description

Y50ET series circular connectors are inner pin locked type for British system, military quality, featuring quick connection (Thread connect) and separation, small volume, light weight, good sealing and anti-tensile performance. The type of terminations include soldered and crimped, shielded and nonshielded housing, straight and bent cable outlet ends, ordinary, high vacuum and high pressure sealing. It's specification meet the requirements of GJB101A, GJB598A, MIL-C-26482 standard. They are widely used for energy and signal connections in strategic and tactical systems and field operations.

Product ordering
Y50 E T-12 08 Z J 10
1 2 3 4 5 6 7 8
1. Product name: Y50 series circular connectors
2. Type: E: British system
3. Structure: T: Ordinary rubber sealing, Thread connect,Same as PC series.
4. Shell: 08, 10, 12, 14, 16, 18, 20, 22, 24
5. Contacts: 3-61
6. Type: T: Plug, Z: Receptacle
7. Contacts type: J: Pin, K: Socket, S: Panel
8. Receptacle: 10: Square flange mounting, 10-2: With cable, 11: Circular flange, 14: Screw connection
Plug: 1: Grounded pressure, 2: Cable clipper, 4: Anti-tensile shell, 5-angled, 6: Water proof cable shell
Technical characteristics

Mould: Tested as per provisions in 4.16 of GJB598A; Saline fog: Tested as per provisions in 4.17 of GJB598A; Rainproof: Tested as per provisions in 4.15 of GJB598A.
