| Prod Model: |
YCT |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Frame Size: |
H112-355 |
| Rated Power: |
0.55-90kw |
| Rated Voltage: |
220/380V;380/660V |
| Frequency: |
50Hz, 60Hz |
| Protection Class: |
IP23 |
| Insulation Class: |
B |
| Speed Range: |
1:10 |
| Speed Variation: |
≤1% |
| Voltage Of Controller: |
220V |
| Maximum Excitation Voltage: |
≤90V |
| Application: |
Industrial |
| Operating Speed: |
Adjust Speed |
| Number Of Stator: |
Three-Phase |
| Species: |
Y, Y2 Series Three-Phase |
| Rotor Structure: |
Squirrel-Cage |
| Casing Protection: |
Closed Type |
| Starting Mode: |
y-δ Starting |
| Certification: |
CE |
| Number Of Poles: |
2, 4, 6, 8 |

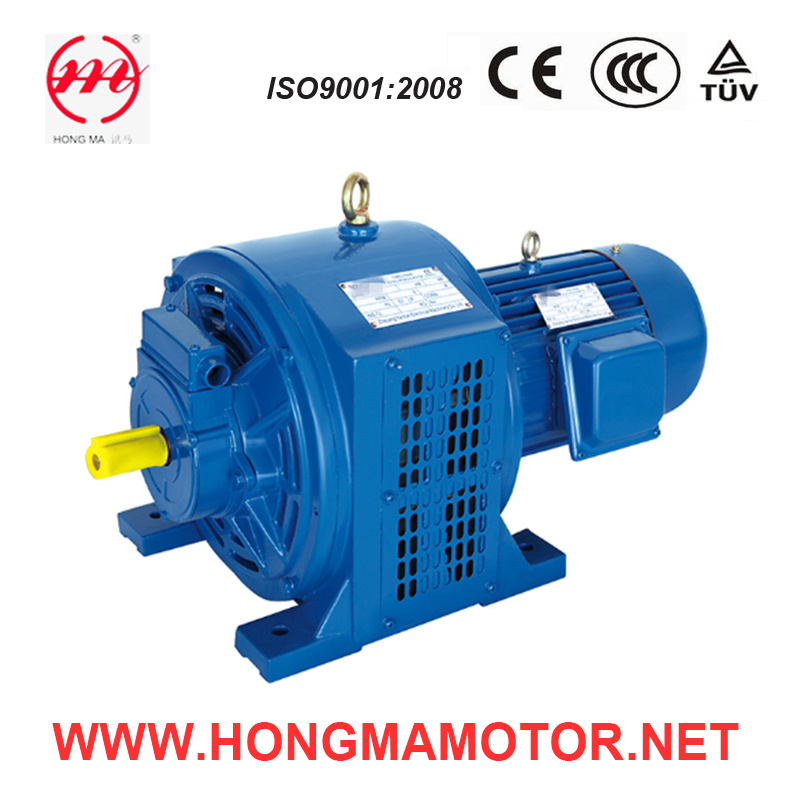

Product Description
Product DescriptionYCT series is a latest product designed conformably in whole country adopts ways of changing the excitation current size to adjust output speed. YCT series are of high efficiency, low noise, small vibration, wide range of speed-regulation, no out-of-control zone, and negative feedback of speed. Its mounting dimension and power totally conform to IEC standard and JB/T7123-93 standard.
YCT series is made up of three phase asynchronous motor, electromagnetic speed differential clutch and techno-generator. It is usually associated with JD or ZTK controller to compose a set of ac unlimited adjustment devices. YCT series can be widely used in textile, printing and dyeing, cement, paper, printing, rubber, plastics, sugar, stirring, blast, fiber, cable and other industrial sectors.
Technical Data
| Frame No. | Normal | Rated | Speed Range | Excitation | Excitation | Noise |
| Power | N.m | rpm | V | A | dB(A) |
|
| 112-4A | 0.55 | 3.6 |
|
| 0.98 | 75 |
| 112-4B | 0.75 | 4.9 | 1230-125 |
| 1.01 | 75 |
| 132-4A | 1.1 | 7.1 |
| 1.3 | 75 |
|
|
| 132-4B | 1.5 | 9.7 |
|
| 1.5 | 78 |
| 160-4A | 2.2 | 14.1 |
|
| 1.2 | 78 |
| 160-4B | 3 | 19.2 |
|
| 1.51 | 82 |
| 180-4A | 4 | 25.2 |
|
| 1.19 | 82 |
| 200-4A | 5.5 | 36.1 | 1250-125 |
| 1.5 | 82 |
| 200-4B | 7.5 | 47.7 |
|
| 1.63 | 86 |
| 225-4A | 11 | 69 |
| <=90 | 1.8 | 86 |
| 225-4B | 15 | 94 |
|
| 1.91 | 90 |
| 250-4A | 18.5 | 110 |
|
| 2.6 | 90 |
| 250-4B | 22 | 137 |
|
| 2.88 | 90 |
| 280-4A | 30 | 189 | 1320-132 |
| 2.46 | 97 |
| 315-4A | 37 | 232 |
|
| 3.2 | 97 |
| 315-4B | 45 | 282 |
|
| 3.89 | 99 |
| 355-4A | 55 | 344 | 1340-440 |
|
| 99 |
| 355-4B | 75 | 469 |
| _ | 103 |
|
|
| 355-4C | 90 | 564 | 1340-600 |
|
| 103 |

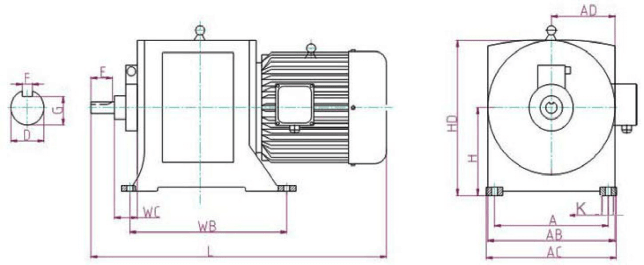

Mounting Data
| Frame |
|
|
| Mounting Dimensions |
|
|
|
| Overall Dimensions |
|
| No. | A | WB | WC | D | E | F | G | H | K | AB | AC | AD | HD | L |
| 112-4A | 190 | 210 | 40 | 19 | 40 | 6 | 15.5 | 112 | 12 | 240 | 260 | 150 | 280 | 520 |
| 112-4B | 190 | 210 | 40 | 19 | 40 | 6 | 15.5 | 112 | 12 | 240 | 260 | 150 | 280 | 520 |
| 132-4A | 216 | 241 | 40 | 24 | 50 | 8 | 20 | 132 | 12 | 285 | 310 | 165 | 330 | 570 |
| 132-4B | 216 | 241 | 40 | 24 | 50 | 8 | 20 | 132 | 12 | 285 | 310 | 165 | 330 | 585 |
| 160-4A | 254 | 267 | 45 | 28 | 60 | 8 | 24 | 160 | 15 | 330 | 350 | 185 | 385 | 665 |
| 160-4B | 254 | 267 | 45 | 28 | 60 | 8 | 24 | 160 | 15 | 330 | 350 | 185 | 385 | 665 |
| 180-4A | 297 | 305 | 45 | 28 | 60 | 8 | 24 | 180 | 15 | 365 | 385 | 195 | 430 | 700 |
| 200-4A | 318 | 356 | 50 | 38 | 80 | 10 | 33 | 200 | 19 | 410 | 430 | 235 | 485 | 820 |
| 200-4B | 318 | 356 | 50 | 38 | 80 | 10 | 33 | 200 | 19 | 410 | 430 | 25 | 484 | 860 |
| 225-4A | 356 | 406 | 56 | 42 | 110 | 12 | 37 | 225 | 19 | 465 | 485 | 270 | 545 | 980 |
| 225-4B | 356 | 406 | 56 | 42 | 110 | 12 | 37 | 225 | 19 | 465 | 485 | 270 | 545 | 1025 |
| 250-4A | 406 | 457 | 63 | 48 | 110 | 14 | 42.5 | 250 | 24 | 520 | 540 | 295 | 595 | 1130 |
| 250-4B | 406 | 457 | 63 | 48 | 110 | 14 | 42.5 | 250 | 24 | 520 | 540 | 295 | 595 | 1170 |
| 280-4A | 457 | 508 | 70 | 55 | 110 | 16 | 49 | 280 | 24 | 575 | 595 | 320 | 665 | 1280 |
| 315-4A | 508 | 560 | 89 | 60 | 140 | 18 | 53 | 315 | 28 | 645 | 670 | 345 | 770 | 1400 |
| 315-4B | 508 | 560 | 89 | 60 | 140 | 18 | 53 | 315 | 28 | 645 | 670 | 345 | 770 | 1425 |
| 355-4A | 610 | 630 | 108 | 65 | 140 | 18 | 58 | 355 | 28 | 755 | 780 | 390 | 890 | 1550 |
| 355-4B | 610 | 630 | 108 | 75 | 140 | 20 | 67.5 | 355 | 28 | 755 | 780 | 420 | 890 | 1630 |
| 355-4C | 610 | 630 | 108 | 75 | 140 | 20 | 67.5 | 355 | 28 | 755 | 780 | 420 | 890 | 1680 |
Package
Frame NO. 80--132 :Package by carton box and then packed by wooden box
Frame NO.160 and above:one wooden box per set
Our Certificate

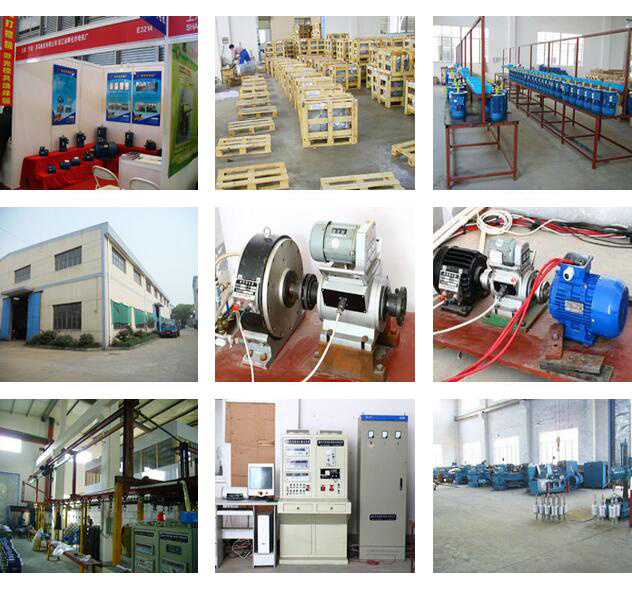

Our Factory
