Three Phase High Accuracy Full Automatic AC Voltage Stabilizer (SVC/TNS)
Price: |
US $ 120-1200/Piece |
Trade Terms: |
FOB,CFR,CIF |
Min Order: |
1/Piece |
Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
Prod Model: |
SVC/TNS |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Input Voltage: |
AC 270V-430V |
Effciency: |
>90% |
Capacity: |
6kVA-90kVA |
Response Time: |
<=1.5s |
Current Type: |
AC |
Phase: |
Single Phase |
Usage: |
SVC |
Frequency: |
Low Frequency |
Brand: |
Winston |
Product Description

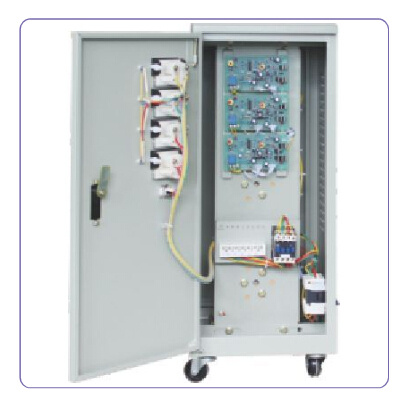

Three phase high accuracy full automatic AC voltage stabilizer (SVC/TNS)
Application: SVC/TNS Three phase high accuracy full automatic AC voltage stabilizers series is key series of our products.

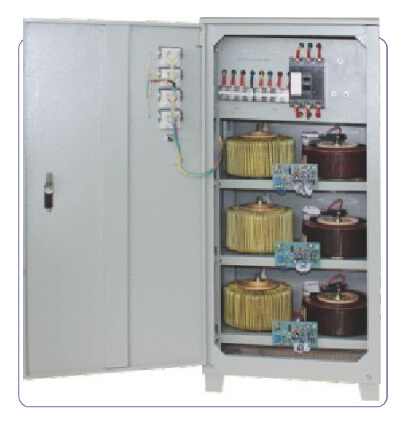

It is made of contact type self-couping voltage regulator, servo motor, automatic control circuit and so on.
When the voltage of the network is not steady or the load varies, the automatic sampling control circuit makes a signal to drive the servomotor to adjust the position of the carbon brush of the self-coupling voltage regulator so as to have the output voltage regulated to the rating and to obtain the steady state.
Having the advantages such as wide varieties, complete specifications, beautiful appearance, etc.
And the characteristics such as undistorted waveform, high efficiency, reliable performance, long-term operation, etc., and also being provided with the protective functions such as time-delay, over-voltage, etc., the series of stabilizers of the general type, are the ideal voltage stabiliaed soruces which can be widely applied to any occasions requiring power to assure the normal operation of your power driven equipment.
Specification:Input voltage | 277V-430V |
Output voltage | 380V±3% |
Phase | Three phase |
Frequency | 50HZ/60HZ |
Response time | within 1sec. |
Environment temperature | -5ºC-+40ºC |
Opposite degree of humidity | Less than<95% |
Waveform disortion | No-lack distortion in waveform |
Insulation resistance | comply with naiorlty international standard |
Technique parameter:Model | Products' size(cm) | Package size(cm) | PCS/CTN | G.W.(kg) |
SVC/TNS-6K | 27.5*30.5*66.5 | 38*41.5*77 | 1 | 32 |
SVC/TNS-9K | 31*32.5*77.5 | 44*41.5*87 | 1 | 43 |
SVC/TNS-15K | 33.5*35.5*85 | 45.5*45.5*94 | 1 | 56 |
SVC/TNS-20K | 47*42*89 | 52.5*56.5*99 | 1 | 92 |
SVC/TNS-30K | 47*42*89 | 52.5*56.5*99 | 1 | 110 |
SVC/TNS-40K | 55*48*116 | 66.5*56.5*130 | 1 | 153 |
SVC/TNS-50K | 55*45*116 | 66.5*56.5*130 | 1 | 174 |
SVC/TNS-60K | 55*45*116 | 66.5*56.5*130 | 1 | 185 |
SVC/TNS-75K | 62*51.5*131 | 64.5*74*144 | 1 | 226 |
SVC/TNS-90K | 62*51.5*131 | 64.5*74*144 | 1 | 240 |
