Product Description

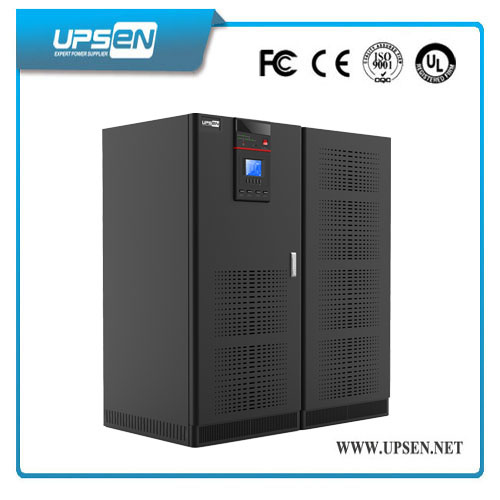

Three phase Large touch screen LCD Online Double conversion UPS
Model:Low Frequency Online UPS Legend Strar Series LS33 10K-80K(3Ph in/3Ph out)
Key Features
1:True onlin double conversion completely isolates the load from various grid faults and pollution
2:6-inch extra large LCD that display 12 language( English/Russian/Spanish/French)
3:IGBT mosfet and SPWM modulation technologies applied
4:Intelligent battery management maintains battery automatically to prolong the battery life
5:Smart RS232 port for computer monitoring
6:Digital signal processing using latest DSP technology provides high performance and system reliability
7:Intelligent battery management
8:Layered independently-sealed ventilation channel and redundant fan, embedded make it highly efficient to dissipate heat.
9:Extra wide input voltage and frequency range make it adapt to severe power grid environment
10:Large LCD display monitor various real-time information at a glance
11:wide input range which is suitable for very unstable power supply situation
12:Standard input/output filter improves the system EMC performance
Application:
1:theater and highway and railway tunnels metal halide lamp lighting system.
2:Industrial automatic equipment, SMT chip mounter equipment
3:IDC rooms, bank/securities settlement center, communication network management center
4:Industrial and mining equipment, chemical industry, petrochemical production equipment
5:Transmitter station, control room, medical instruments
Technical Specification
| low frequency strar series LF33 100k-400kva |
| model | LF33 series |
| rectifier type | 6p | 12p | 6p | 12p | 6p | 12p | 6p | 12p | 6p | 12p |
| rated nominal | 120kva/108kw | 160kva/144kva | 200kva/180kw | 300kva/270kw | 400kva/360kw |
| rated input voltage | 380/400/415vac 3-phase 4-wire |
| rated frequency | 50/60hz |
| input parameters |
| input voltage range | ±25% |
| input frequency range | 45hz~65hz |
| input soft start function | 0-100% 5-300settable |
| input power factor | more than 0.98(if harmonic filter is added) |
| input harmonic current (thdi) | less than 4.5%(if harmonic filter is added) |
| bypass |
| bypass voltage range | -20%~+15% |
| bypass frequency range | 50/60hz±10% |
| output parameters |
| inverter output voltage | 380/400/415vac 3-phase 4-wire |
| voltage stability | ±1%(steady status),±3%(transient status) |
| frequency | 50/60hz |
| mains power synchronization window | ±5% |
| actually measured frequency accuracy (internal clock) | 50/60hz±0.01hz |
| output power factor | 0.9(output 90kw per 100kva) |
| transient response time | less than 5ms |
| inverter overload capability | at 0.9 power factor, 110% for 1 hour, 125% for 10 minutes and 150% for 60s |
| short circuit current from inverter | 3ph 1.5ln for 5seconds,1ph 2.9ln for 5seconds |
| maximum bypass capability | 1000% for 100ms |
| phase shift | with 100% balanced load | less than1° |
|
| characteristic | with 100% imbalance load | less than1° |
| total harmonic | 100% linear load | less than1% |
|
| distortion(thdv) | 100% non-linear load | less than3% |
| system efficiency (full load) | up to 94% (inverter efficiency is up to 98%) |
| rectifier output parameters |
| charger output voltage stability | 1% |
| dc ripple voltage | ≤1% |
| operating environment |
| operating temperature range | 0~40°c |
| storage temperature | -25~70°c(without battery) |
| relative humidity | 0~95% no condensation |
| maximum operating height | ≤elevation 1000m, for elevation above 1000m, derate by 1% for every increase of 100m |
| noise (1m) | 58-68db |
| protection level | ip20 |
| standard | safety: iec60950-1 iec62040-1-1 ul1778 emc iec62040-2 class c2 en50091-2 class a design and test iec62040-3 |
| physical parameters |
| weight (kg) | 980 | 1420 | 1200 | 1750 | 1350 | 2000 | 1600 | 2200 | 2100 | 2750 |
| width(mm) | 900 | 1250 | 1250 | 1640 | 1250 | 1640 | 1640 | 2280 | 2280 | 2280 |
| depth (mm) | 855 | 855 | 855 | 855 | 855 | 855 | 855 | 855 | 855 | 855 |
| height (mm) | 1900 | 1900 | 1900 | 1900 | 1900 | 1900 | 1900 | 1900 | 1900 | 1900 |
| *specifications change without prior notice |
competitive advantages:
1: three years' warranty for online ups, and 1% free ups or 2% free pcb boards
2: full protection against over-discharge, overcharge, over load.
3: strong shock resistance ability
4: professional technical support before and after sales
5: timely response, fast delivery time and flexible operations to satisfy any customers' special requests.
6: free oem & odm service
7: competitive price, quality and mature products
