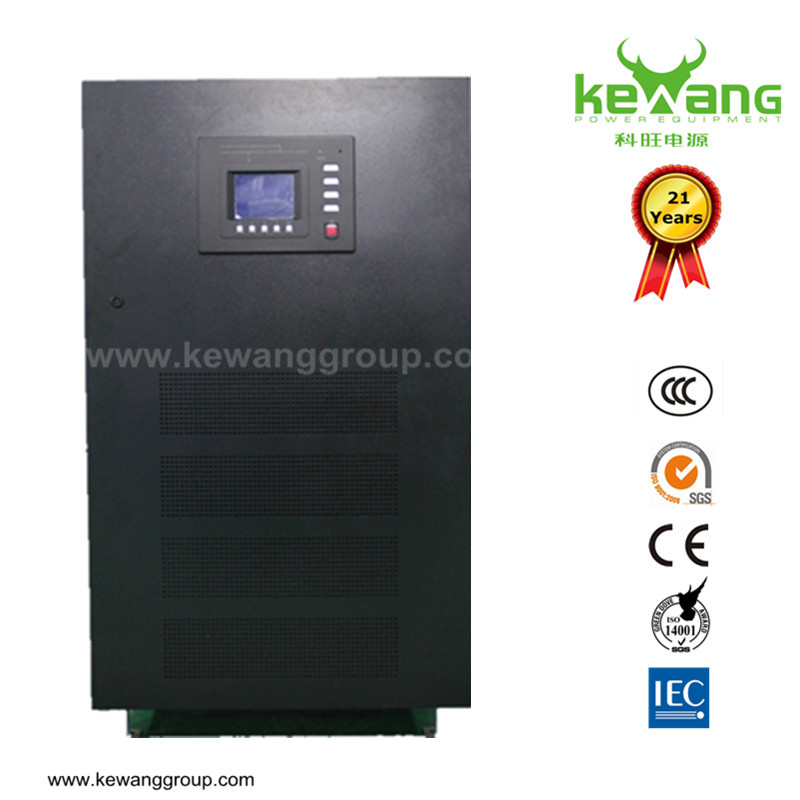

Three Phase Phase 40kVA on-Line Backup UPS

Prod Model:	ups-24
Markets:	North America,South America,Eastern Europe,Southeast Asia,Mid East,Western Europe
Technology:	Double-Conversion True on-Line IGBT
Output:	3-Phase Output
Input:	3-Phase Input
Capacity:	10 to 80kVA
Name:	Three Phase Phase 40kVA on-Line Backup UPS
Power Factor:	0.9
Phase:	Three Phase
Type:	On-line
Protection:	Overvoltage
Brand:	Kewang

Product Description

3-phase input/3-phase output UPS, with unit capacity from 10KVA to 400KVA, is a high performance sinusoidal wave UPS system, dedicated designed with high availability and reliability to provide very important power supply protection for large scale and key application systems such as Data processing center, Host system, Manufacturing industry, Telecommunication equipment and Medical facility etc..
This series UPS takes double-conversion true on-line IGBT technology and high-speed DSP digital processor to ensure sine wave output with stable voltage and frequency.
With advanced parallel digital control technology, HR7300 series UPS can support parallel redundancy up to eight units, and optional parts such as harmonics suppression filter, bypass input isolating transformer and SNMP adapter etc.

Characteristic

01. High reliability design
Double conversion topology structure, configure the output isolating transformer, be suitable for complicated loads.

02. DSP fast digital processor
Make the control circuit operation faster and more stable.

03. Output 100% unbalanced load
Meet the requirements of varied loads.


04. 12 pulse rectifier
12. pulse rectifier option, improved input power factor and reduced input THDI effectively.
The matching value of generator can be reduced between 1.2 to 1.8.


05. ECO work mode
In the environment of better quality power grid, can choose ECO work mode which makes the efficiency improved to 98%. More energy saving and friendly to environment.


06. Different power parallel operation technology and parallel shared battery system technology
Reduced start-up cost and improves usability of UPS system effectively, max. 8 parallel operated UPS


07. Advanced battery intelligent management function
Reduce workload of management, extend battery life. Set parameters according to the battery capacity. UPS can manage the charging current automatically to meet the demands about long backup time.


08. Perfect man-machine communication scheme
These UPS display in Chinese and English with 7" touch screen and configure varied interface (RS485/RS232) . They are compatible with a variety of standard about IT communication protocol and configure. 14 groups signal nodes and perfect network management scheme.
All of these make man-machine communication zero distance.


09. Save the limited installation space
Compact installation space, all front maintain structure, just need 1m maintenance space in the front of UPS, the other 3 sides can be installed against the wall.


UPS   Three Phase Input and Three Phase Output big Capacity  Industrial Frequency UPS
S600010-80kVA UPS    S6000 Series10-80kVA UPS
Technical Specifications
Capacity	Rated Capacity	10kVA	15kVA	20kVA	30kVA	40kVA	60kVA	80kVA
	Active Power	9kW	13.5kW	18kW	27kW	36kW	54kW	72kW
	Input	+ Three-phase + ground line
	Rated AC Input	380/400/415VAC
	Voltage Range	285VAC-498VAC
	Rated Frequency	50/60Hz
	Frequency Range	45-66Hz
	Input Power slow start delay	5-600s  Settable
	Rectifier Soft Start	6-100s Settable
bypass	Rated AC Input	380/400/415VAC(+) Three-phase + neutralline
	Rated AC Input	(-40%-+20%) Settable
	Frequency Range	50/60Hz+/-10%(+/-2.5%,+/-5%,+/-10%,+/-20%) Settable
OutPut	Rated AC Input	380/400/415VAC
	Regulation accuracy	(+/-1%)100%,(+/-2%) 100%  Load balance
	Power Factor	0.9
	Dynamic voltage transients	(+/-5%)(0-100%)Load Change
	Total harmonic voltage distortion	<1%(100%)Linear load
	Voltage dynamic response time	<5ms
	Frequency synchronization tracking range	(+/-2Hz)(+/-0.5- +/-3Hz)settable
	Inverter overload Ability	110%,125%10,150%1  (110% Long-term work,125% ten minutes,150% one minute)
	Frequency accuracy	(+/-0.05%)
	Waveform	Pure sine wave
Efficiency	Normal Mode	92%
	ECO ECO Mode	98%
N+X in parallel		8 sets
Battery Configuration	Battery Voltage	(360V-384V)/(2V/cell)
Display Method	LCD+LED
Machine Dimension	Depth  (mm)		720					750
	Height (mm)		1100					1400
	Width (mm)	6	560					800
		12	/			970		1270
Weight	Net Weight(Kg)	6	195	235	255	300	330	480	550
		12	/			420	480	750	800
Application surroundings	Temperature	0-40ºC
	Humidity	0-95%   No condensation
	(1m)Noise	≤55db		≤60db			≤65db
Control Management	RS232,RS485	windowsXP/7/8/Linux/Mac    Support windowsXP/7/8/Linux/Mac
	SNMP	SNMP  Support for remote monitoring and management by the SNMP manager through a web browser
Standards compliant	Safety Standards	IEC60950-1,IEC62040-1-1
	Electromagnetic Compatibility	IEC62040-2,IEC62040-3
