Product Description

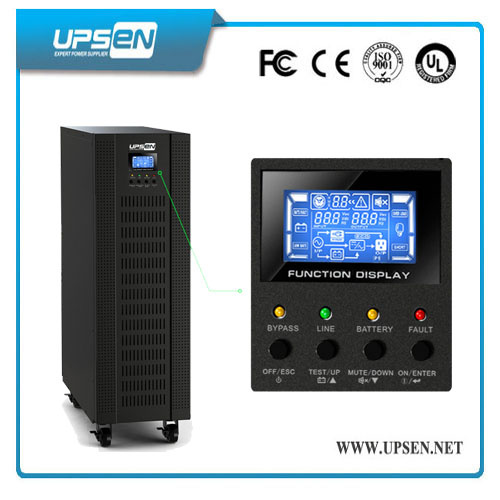

three phase pure sine wave Online UPS with SNMP/USB/RS-232
Model:High Frequency Online UPS View Star Series 10K -30Kva (3ph in / 1ph out )
Quick Read
1: UPS with SNMP/USB/RS-232 communications port
2: UPS with adjustable battery numbers
3: UPS with long backup time
4: UPS with High Frequency Transformerless Tech
5: UPS with smart and compact design, high efficiency and low noisy
Key Features
1)Precision Output Voltage Regulation
2)Optional Remote Emergency Power Off (REPO)
3)High input power factor, green and energy-saving
4)Pure sine wave output, true on-line dual conversion design
5)Standard backup UPS and long backup UPS in one integrated unit
6)Inbuilt switch for cabinet input, output and maintenance connection
7)Input L and N lines reverse wiring detection, Auto start when AC back
8)Use SNMP adapter, UPS can realize remote network management function
9)Independent charger for batteries, intelligent battery management system
10)Internal manual maintenance bypass, further improve the reliability of continuous operation of the load
11)Wide input voltage and frequency range, adaptation to all kinds of climatic and geographical environmen
Applications;
Data center,Geophysical Equipment,Vending Machines,game consoles,Precision instrument,trucks,financial, Telecommunications,Commercial facility, government, transportation industry, manufacturie, education etc.
Technical Specification
| VIEW STAR SERIES ONLINE UPS SELECTION GUIDE |
| MODEL | VS31 10K (L) | VS31 15K (L) | VS31 20K (L) | VS31 30K (L) |
| PHASE | 3 phase in / 1 phase out |
| CAPACITY | 10000 VA / 8000 W | 15000 VA/12000 W | 20000 VA/16000 W | 30000VA/24000W |
| INPUT | | |
| Nominal Voltage | 3 x 400 VAC (3Ph+N) |
| Voltage Range | 305-478 VAC (3-phase) @ 100% load
190-520 VAC (3-phase) @ 50% load |
| Frequency Range | 46~54 Hz or 56~64Hz |
| Power Factor | >= 0.99 @ 100% load |
| OUTPUT |
| Output Voltage | 208/220/230/240VAC |
| AC Voltage Regulation (Batt. Mode) | ± 1% |
| Frequency Range (Synchronized Range) | 46~54 Hz 50 Hz / 56~64 Hz 60 Hz |
| Frequency Range (Batt. Mode) | 50 Hz ± 0.1 Hz or 60 Hz ± 0.1 Hz |
| Current Crest Ratio | 3:1 (Max) |
| Harmonic Distortion | Less than 2 % THD (Linear Load)
Less than 5 % THD (Non-linear Load |
| Transfer Time | AC Mode to Batt. Mode | zero |
| Inverter to Bypass | zero |
| Waveform (Batt. Mode) | Pure Sine Wave |
| EFFICIENCY |
| AC Mode | 89% | 89% | 89% | 90% |
| Battery Mode | 86% | 88% | 87% | 89% |
| BATTERY |
| Standard Model | Battery Type | 12 V / 9 AH |
| Numbers | 16 pcs | 16 pcs x 2 strings | 16 pcs x 3 strings |
| Typical Recharge Time | 9 hours recover to 90% capacity |
| Charging Current (max.) | 1A | 2A | 2A | 2A |
| Charging Voltage | 273 VDC ± 1%(based on 20 pcs batteries) |
| Long-run Model | Battery Type | Depending on the capacity of external batteries |
| Numbers | 16pcs(192V) | 16pcs(192V) | 16pcs(192V) | 20pcs(240V) (18-20adjustable) |
| Charging Current (max.) | 4A | 4A | 4A | 12A |
| Charging Voltage | 273 VDC ± 1%(based on 20 pcs batteries) |
| INDICATORS |
| LCD Panel | UPS status, Load level, Battery level, Input/Output voltage, Discharge timer, and Fault conditions |
| ALARM |
| Battery Mode | Sounding every 4 seconds |
| Low Battery | Sounding every second |
| Overload | Sounding twice every second |
| Fault | Continuously sounding |
| PHYSICAL |
| Standard Model | Dimension, D X W X H (mm) | 592 X 250 X 576 | 815 x 250 x 826 | 815*300*1000 |
| Net Weight (kgs) | 83 | 164 | 234 |
| Long-run Model | Dimension, D X W X H (mm) | 592 X 250 X 576 | 592 X 250 X 576 | 815 x 250 x 826 |
| Net Weight (kgs) | 28 | 40 | 64 |
| ENVIRONMENT |
| Operation Humidity | 0-95 % RH @ 0- 40°C (non-condensing) |
| Noise Level | Less than 58dB @ 1 Meter | Less than 60dB @ 1 Meter | Less than 65dB @ 1 Meter |
| MANAGEMENT |
| Smart RS-232 | Supports Windows® 2000/2003/XP/Vista/2008, Windows® 7/8, Linux, Unix, and MAC |
| USB |
| Optional SNMP | Power management from SNMP manager and web browser |
* Long-run model is only available in 200/208/220/230/240VAC systems.
Competitive Advantages:
1: Three Years' warranty for Online UPS, and 1% free UPS or 2% free PCB Boards
2: Good after-sales service, we will be full responsible for any faults caused by our side
3: Professional experience in power field more than 10 years
4: Professional technical support before and after sales
5: Timely response, fast delivery time and flexible operations to satisfy any customers' special requests.
6: Free OEM & ODM Service
7: Competitive price, quality and mature products
