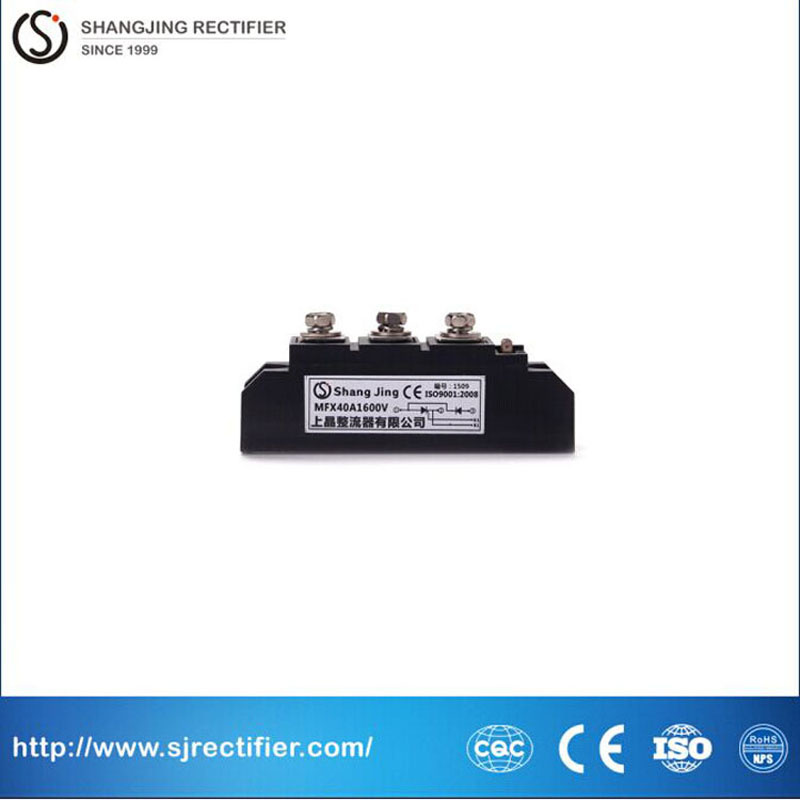

Thyristor-Diode Module for Industry Heat-up Control

Name: Thyristor-Diode Module for Industry Heat-up Control
Brand: all-electronics-online.com
SKU: 663871321
Availability: InStock
Rating: 4.7 (86 reviews)

Price:	US $ 3-50/Piece
Trade Terms:	FOB
Min Order:	3/Piece
Pay Type:	T/T,Paypal,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	MFX40
Markets:	North America,South America,Eastern Europe,Southeast Asia,Oceania,Mid East,Eastern Asia,Western Europe
Vrrm/Vdrm:	400-2600V
Irrm:	8mA
DV/Dt:	800V/Us
Di/Dt:	50A/Us
Manufacturing Technology:	Discrete Device
Material:	Element Semiconductor
Type:	Intrinsic Semiconductor
Package:	Standard Export Packing
Application:	AC DC Motor Control, Motor Soft Start,
Model:	Mfx40
Batch Number:	2016+
Brand:	Shangjing

Product Description

Features
Electrical insulated for chip and base
International standard packaging
Excellent temperature characteristic and power cycling performance
Water-cooling type available for over 400A modules
Easy to install and maintain
Small and light

Typical Applications
AC DC motor control
Motor soft start
Industry heat-up control
Various rectification power supply
Welder
Diming
Contactless switch
Frequency transformer
UPS power supply
Battery charge & discharge

Type	IT(AV)	VDRM VRRM	VTM@ITM		IDRM IRRM	IGT	VGT	IH	dv/dt	di/dt	ITSM	Rjc	Tjm	Viso	Outline
Type	A	V	V	A	mA	mA	V	mA	V/μ s	A/μ s	kA	° C /W	° C	V(AC)	Outline
MFx25A	25	400-2600	1.59	80	8	100	2.5	100	800	50	0.55	0.950	125	2500	M1/M2
MFx40A	40	400-2600	1.50	120	8	100	2.5	100	800	50	1.00	1.650	125	2500	M1/M2
MFx55A	55	400-2600	1.40	170	8	100	2.5	100	800	50	1.25	0.530	125	2500	M1/M2
MFx70A	70	400-2600	1.38	210	10	100	2.5	100	800	50	1.60	0.410	125	2500	M1/M2
MFx90A	90	400-2600	1.84	270	15	100	2.5	100	800	100	2.00	0.280	125	2500	M1/M2
MFx110A	110	400-2600	1.80	330	20	100	2.5	100	800	100	2.40	0.250	125	2500	M1/M2
MFx130A	130	400-2600	1.86	410	25	150	2.5	100	800	100	3.80	0.200	125	2500	M2/M3
MFx160A	160	400-2600	1.80	480	25	150	2.5	100	800	100	5.40	0.170	125	2500	M3
MFx200A	200	400-2600	1.80	600	30	180	2.5	100	800	100	7.20	0.140	125	2500	M3/M4
MFx250A	250	400-2600	1.63	750	30	180	2.5	100	800	100	8.50	0.120	125	2500	M4
MFx300A	300	400-2600	1.48	900	40	180	2.5	100	800	100	9.30	0.100	125	2500	M4
MFx350A	350	400-2600	1.35	1050	40	180	2.5	100	800	100	11.0	0.090	125	2500	M5
MFx400A	400	400-2600	1.34	1200	40	200	3.0	100	800	100	14.0	0.080	125	2500	M5
MFx500A	500	400-2600	1.34	1500	40	200	3.0	100	800	100	16.0	0.065	125	2500	M5
MFx300A *	300 *	400-2600	1.50	900	40	180	2.5	100	800	100	9.30	0.100	125	2500	M6
MFx500A *	500 *	400-2600	1.55	1500	40	200	3.0	100	800	100	11.0	0.087	125	2500	M7
MFx600A *	600 *	400-2600	1.60	1800	40	200	3.0	100	800	100	13.0	0.073	125	2500	M7/M8
MFx800A *	800 *	400-2600	1.65	2400	40	200	3.0	100	800	100	16.0	0.054	125	2500	M8
MFx1000A *	1000 *	400-2600	1.85	3000	40	200	3.0	100	800	100	20.0	0.050	125	2500	M9
