| Prod Model: |
TI |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| DC Input: |
48VDC |
| DC Input Range: |
40~58VDC |
| AC Output: |
220VAC, 1phase |
| Output Wave Form: |
True Sine Wave |
| Capacity: |
1 to 10kVA |
| Height: |
2u |
| Phase: |
Single |
| Power Source: |
Electric Power |
| Application: |
Telecom |
| Brand: |
Jetpower |
Product Description

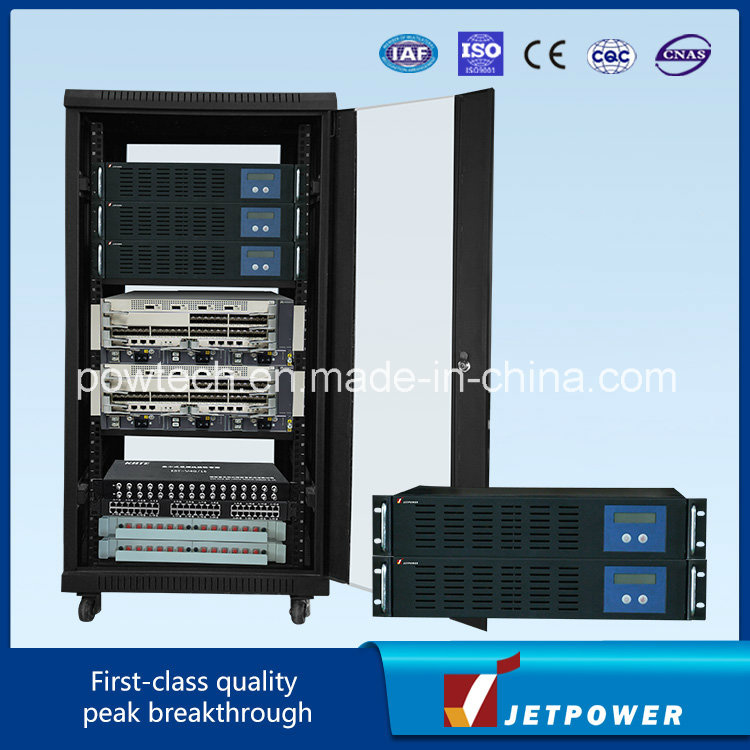

TI Series 48VDC Inverter with CE Approved (1K~10K)DC input: 40~58Vdc
AC output: 220Vac
Capacity: 1 to 10KVA
48VDC inverter Features:(1) Pure sine wave output
(2)High efficiency conversion
(3) Primary DC input and secondary AC input available
(4) Tower or rack-mount convertible
(5) 2U height design
(6) High power, Low profile
(7) Advanced Microprocessor control
(8) Design Provides High Reliability and Efficiency
(9) Over load protection and alarm
(10) Low audible noise: < 55 dB
(11) EMI meet VDE0871 Class A
(12) RS 232 communication
(13) MTBR<1hrs
(14) Dry Contact alarm interface
(15) Fax/ Modem surge Suppression ports
(16) RJ45 Network surge suppression ports

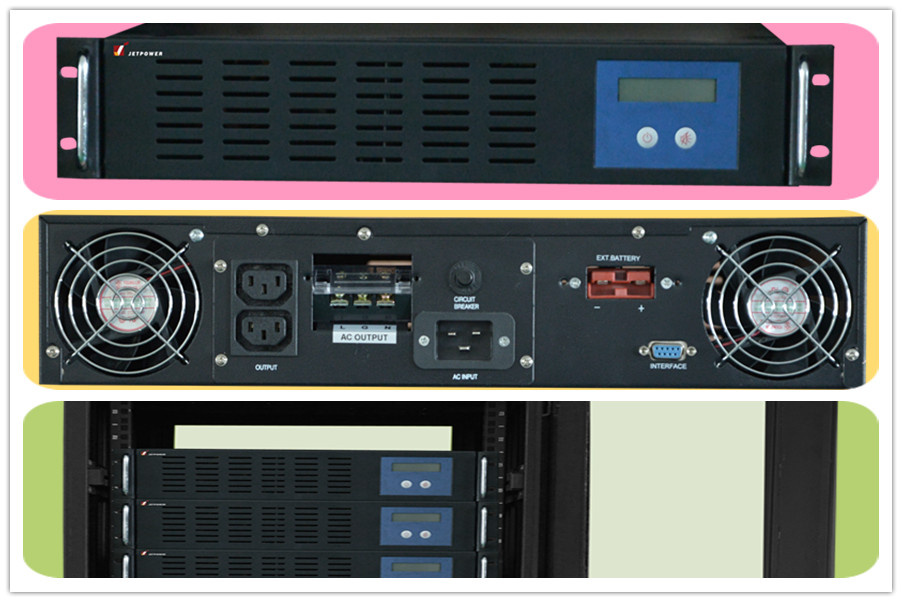

Product images
Warranty: 1 year.If you can cooperate with us, we will be honored and you will benefit from:
1. The good construction warranty-1 year
2. Your client is satisfied with the right schedule and quality
3. You can get good reputation from your market and obtain more orders
4. Our professional service before and after sale
5. The free inverter sample after your first 3 orders
6. The reasonable price +1% free spare parts
7. Any question are welcomed and will be replied in 24 hours
| Model Name | 1000 | 2000 | 3000 | 5000 |
| Overview | Capacity (VA / Watt) | 1000VA / 700W | 2000VA/1400W | 3000VA/2100W | 5000VA/3500W |
| Surge Protection Only (VA) | 1000VA | 2000VA | 3000VA | 5000VA |
| Power Factor | 0.7 | 0.7 | 0.7 | 0.7 |
| Outlook | Rack | Rack | Rack | Rack |
| DC input | Rated DC input | (-) 48V | (-) 48V | (-) 48V | (-) 48V |
| Range | 40V~58V | 40V~58V | 40V~58V | 40V~58V |
| Shut down voltage | 40V | 40V | 40V | 40V |
| Input current | 25A | 50A | 75A | 125A |
| AC input | I/P Nominal Voltage | 220vac | 220vac | 220vac | 220vac |
| I/P Voltage Range | +/- 15% | +/- 15% | +/- 15% | +/- 15% |
| Input current | 4.5A | 9.1A | 13.6A | 22.7A |
| AC Output | O/P Voltage Range (Batt. Mode) | 220V (±2%) | 220V (±2%) | 220V (±2%) | 220V (±2%) |
| O/P Frequency Stability | 50/60Hz +/- 0.5% | 50/60Hz +/- 0.5% | 50/60Hz +/- 0.5% | 50/60Hz +/- 0.5% |
| O/P Manual Configature Set | No | No | No | No |
| O/P Socket Q'ty (Backup+Surge) | (NEMA/IEC)*6 | (NEMA/IEC)*4 | (NEMA/IEC)*4 | (NEMA/IEC)*4 |
| Transfer Time (INV->BYPASS) | < 4ms (typical) | < 4ms (typical) | < 4ms (typical) | < 4ms (typical) |
| Overload | Overload Protection | 130 Buzzer Alarm, "> >130 Buzzer Alarm, | 130 Buzzer Alarm, "> >130 Buzzer Alarm, | 130 Buzzer Alarm, "> >130 Buzzer Alarm, | 130 Buzzer Alarm, "> >130 Buzzer Alarm, |
| Communication | Intelligent Interface | RS232 | RS232 | RS232 | RS232 |
| RS232 Cable Type | RS232 Cable | RS232 Cable | RS232 Cable | RS232 Cable |
| Monitoring Software | UPSilon2000 | UPSilon2000 | UPSilon2000 | UPSilon2000 |
| Environment | Temperature | 0-40 degree C |
| Humidity | 3000 Meters max Elevation 10-95% |
| Audible Noise | Less than 45dBA (at 1M) | Less than 50dBA (at 1M) | Less than 50dBA (at 1M) |
| Physical | Dimension(DxWxH) | 415*430*89 | 415*430*89 | 415*430*89 | 525*430*89 : |
| Weight (Kg) | 16kg | 20kg | 25kg | 32 |
Our production line
Our certificates
Founded in 1994, POWTECH invested by Taiwan, is an independently owned international corporation dedicating to develop, produce & distribute JETPOWER brand power supplies and OPTELEC brand optical cables.
The first JETPOWER branded online high frequency UPS was developed in 1994. Driven by customer requirements, we have developed OFF LINE UPS, Line-interactive UPS, Industrial Online UPS, outdoor UPS, telecom inverter, power inverter and home inverter. Through a decade of great efforts, we have made our JETPOWER branded power supplies widely applied in the fields of finance, telecom, electric power, petrochemistry, custom and military field etc, and have been honorably commented by clients. Besides, we also cooperate with many famous power supply companies by OED/ODM, and now our products have been sold worldwidely, including Europe, South America, Africa, Middle East, Asia etc.
As the fast development of power supply, We also expand our business to optical cable and accessories. In 2006, we have set up our own OPTELEC brand to develop, manufacture and distribute ADSS cable, OPGW cable, optical cable, Fusion Splicer, OTDR, Terminal tool kit, ADSS fittings, OPGW fittings, link fittings, wire mesh cable tray, preformed cable tray, cable trunking, cable ladders, STG modules, STG magazines and accessories. Till now, our OPTELEC brand optical cable and accessories have been used in more than 20 countries' telecom lines' construction and power transmission lines' construction.
Powtech has passed the ISO9001 international quality system certification and has established a complete quality system from material source, process, assembling to testing. All Powtech products have been approved by KEMA, SGS and CE (LVD/EMC) or by customer-appointed safety agencies.
Not only do we pride ourselves on competitive price, Advanced technology and top quality products but also we have value-added technical support. We can dispatch our engineer to customer's site for site installation and training, Or we can provide online service to solve any problem during installation & operation. On the priniciple that there is no customer too big or too small, Every customer deserves most professional service. POWTECH people anticipate growing and prospering with you, Embarking on a way of success.
