Tilt Angle Sensors Gls2000 Tilt Angle Sensors

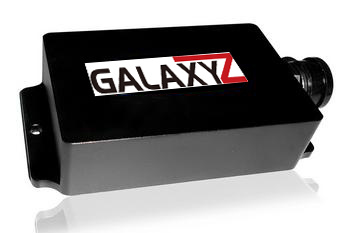

Name: Tilt Angle Sensors Gls2000 Tilt Angle Sensors
Brand: all-electronics-online.com
SKU: 725390115
Availability: InStock
Rating: 5 (144 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,Paypal,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	GLS2000
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Analogue Output:	4-20mA
Output:	Analog Sensor
Usage:	Position Sensor

Product Description

GLS2000 is a super high accuracy Tilt Sensor which are made by our Company . There are 24 Bits High -end System integrated in it .
Resolution Rate: 0.0001°,Accuracy : 0.002°,Drift :0.0007°
It is a most competitive product in the industry now.

Main Features:
Dual Axis Tilt Measuring              Distance :±5/±15/±30/±60±90°to option
High Accuracy 0.0001°                 Wide Voltage Input 9-36V
RS232/485/TTL                          Wide Work Temperature: -40~+85
IP67 protesting class                    Output frequency : 5~ 100Hz to Option
Baud Rate: 4800~115200 to option     Except the OEM

Products Application :
Leveling the Tester which measures the distance between the Rail of the High way Train
Monitoring the Bridge and Dam
Monitoring the High Tower and High Building
Using on the high accuracy laser platform equipments
Controlling the Tilt Angle of the High precision Pan and Tilt
And other industry which requires the high accuracy and moving measuring

Pram.		GLS2000Condition					Unit
Rang of Measuring		±5	±15	±30	±60	±90	°
Measuring Axis		X-Y	X-Y	X-Y	X-Y	X-Y
Zero Drift	-25~85	±0.0007	±0.0007	±0.0007	±0.0007	±0.0007	°
Response Frequency		5-300	5-300	5-300	5-300	5-300	Hz
Resolution Rate		0.0001	0.0001	0.0001	0.0001	0.0001	°
Accuracy	Indoor	0.002	0.003	0.005	0.008	0.01	°
Baud Rate		4800~ 11520	4800~ 11520	4800~ 11520	4800~ 11520	4800~ 11520
Shock Resistance	20000g,0.5ms,3Times/Axis
Weight	150g(Without Box)
Power Voltage	9-36V
Consuming Current	80mA
Output Impedance	100Ω
Working Temperature	40~85
Stocking Temperature	60~90
Impulsing	20000g, 1ms, ½sine
