Tilt Angle Sensors Gls516 Tilt Angle Sensors

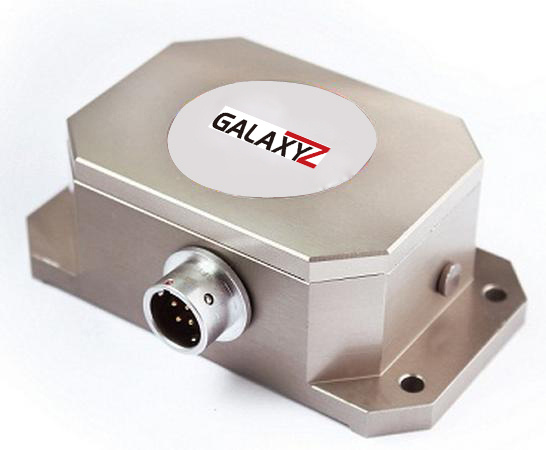

Name: Tilt Angle Sensors Gls516 Tilt Angle Sensors
Brand: all-electronics-online.com
SKU: 725390375
Availability: InStock
Rating: 4.7 (81 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,CFR,EXW
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	GLS516
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Analogue Output:	4-20mA
Output:	Analog Sensor
Usage:	Position Sensor

Product Description

GLS516 is a high accuracy digital and dual Axis Tilt Sensor which is used in the industrial field controlling area.
The high resolution rate : 0.001°and accuracy up to 0.004°.
By high accuracy digital sampling, Win-J500 Tilt Sensor is correcting and compensating by the internal temperature sensor.
And it can be used highly repeatability and accuracy in the high or low temperature environment by the Kalman Filtering Algorithm.
Port : RS485\RS232\TTL\CAN to option .
Output Speed is up to 100time/second.
Our this kind sensor is the real industrial grade products,reliable performance stabilization,good expansibility . And it can be sit to be applied to various kinds industrial controlled environments.

Main Features:
Dual Axis Tilt Measuring             Wide Voltage Input 9~36V
High Accuracy : 0.004°          High Shakeproof : >20000g
TTL/RS232/RS485/CAN            IP 68 Protesting Class
High Resolution 0.001°            Wide Temperature : -40~+85
Small Size : L90mm×W50mm×H28mm

Products Application :
Wireless Base Station Monitor
Locomotive Monitor
All Kinds Engineering Machinery Tilt Measurement
Petroleum Drilling Equipment
Radar Vehicle Platform Detection
Underground Drilling Machine Posture Navigation
Gun Barrel First Shoot Angular Surveying
Based on the Direction of the Tilt Angle Measurements
Satellite Communication Van Posture Measuring

Pram.	Condition	Min.Value	Typical Value	Max.Value	Unit
Supply Voltage	According to the Voltage to change	9		36	V
Working Current	Non-Loaded		30		mA
Working Temperature		-40		+85
Stocking Temperature		-55		+125

Specification of Products:

Pram.	Condition		GLS516 -05	GLS516 -15		GLS516 -30		Unit
Rang of Measuring			±05	±10		±30		°
Measuring Axis			X-Y	X-Y		X-Y
Zero Temperature Drift	-25~85		±0.002	±0.002		±0.002		°/
Sensitivity Error	25		±0.01	±0.01		±0.01		%
Response Frequency			100	100		100		Hz
Resolution Rate			0.001	0.001		0.001		°
Output Signal	TTL/RS232/RS485/CAN
Accuracy	Indoor Temperature	0.004		0.006	0.008		°
Impacting	20000g,0.5ms,3 Times/Axis
Weight	150g(don't include the Packing Box)
