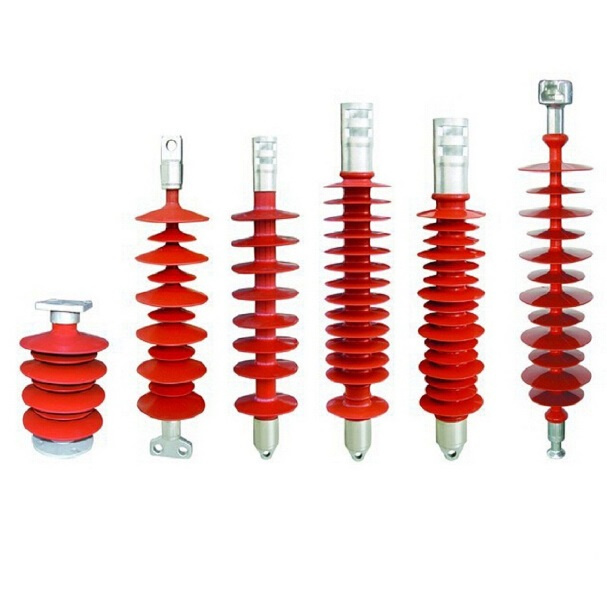

Tilted Double Insulating Bracket Support Railway Composite Insulator

Prod Model:	FQBS-25
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Railway Insulator:	Composite Insulator
Application:	High-temperature
Material:	Composite Polymer
Structure:	Post Insulator
Type:	A Type Insulator
Brand:	Refine

Product Description

Our concept is to supply environmental-friendly products with advanced technology and improving quality all the time.
Model No.: FQX Series
Material: Silicon Rubber / Polymer
Rated Voltage: 25KV
Standard: IEC Standard

The series products are specially used for electric railway; It can effectively prevent flashover due to pollution, and lessen the job of maintenance, which is the necessary device that the porcelain type or glass type insulators can never replace.

We can offer OEM service according to customers' drawing and specified requirements, welcome to contact us.

For your reference under below is the main technical parameter of each model type.

Type	Rated Voltage (KV)	Rated Mechanism Stretch Withstand (KN)	Structural Height (mm)	Creepage Distance (mm)	Lighting Impulse Withstand BIL (KV)	Power Frequency Withstand (wet) (KV)
FQBS25-8	25	60	650	1400	270	130
FQBS25-12	25	20	840	1400	290	130
FQBS25-16	25	20	930	1400	310	130
FQBSJ25-8	25	20	760	1400	270	140
FQBSJ25-16	25	60	806	1400	290	140
FQBSJ25-16-25	25	20	645	1400	310	140
FQBSG25-8	25	20	836	1400	270	150
FQBSG25-12	25	20	695	1400	290	150

With selected complete supply chain, advanced testing equipment, semi-automatic assembly line, strict quality control process and professional technical team, our products are competitive on price, reliable on quality, timely on delivery and satisfactory on service.

Our concept is to supply environmental-friendly products with advanced technology and improving quality all the time.

Your instant choice of Refine Technology Limited products, your constant support from candid, reliable and considerate partner. Our service engineers, with professional morality and technical experience, are the key to the top class service. Our service engineers always carefully understand customer's demand, and then work out the best solution on basis of sufficient analysis.

Technical support for product model selection & new products development; Specialization on goods installation & testing; Professional training for installation and maintenance; Good pre-sale and after-sale service; Rapid technique updating.

To supply quality products and satisfactory service as well as complete solution is the career of us. We sincerely hope to establish a long-term win-win relationship with you in the coming future.
