| Prod Model: |

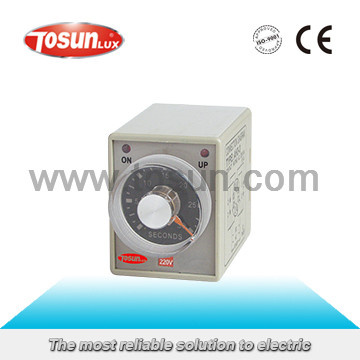

AH3 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Mounting Method: |
Socket |
| Rated Voltage (VAC): |
12, 24, 110, 220, 240, 380 50/60Hz |
| Rated Voltage (VDC): |
12, 24 |
| Indicator Operating: |
on-up Operating |
| Mechanical Life: |
10^6 Operations |
| Electrical Life: |
10^5 Operations |
| Ambient Temperature: |
-10°c~+55°c |
| Weight: |
160g |
Product Description
Specification
| Model | AH3 | AH3-N | ST2P | ST3PA |
| Dimension | 50H×40W×57.5D | 50H×40W×57.5D | 50H×40W×57.5D | 50H×40.5W×57.5D |
| Mounting Socket | Surface(-N) | PF083A(E) | PF083A(E) | PF083A(E) | PF083A(E) |
| Flush(-Y) | US-08 P3G-08 | US-08 P3G-08 | US-08 P3G-08 | US-08 P3G-08 |
| Full Timing Range | SEC: 1, 3, 6, 10, 12, 30, 60
MIN: 3, 6, 10, 12, 30, 60
HR: 3, 6, 10, 12, 30 | A: 1S, 10S, 1M, 10M
B: 3S, 30S, 3M, 30M
C: 6S, 60S, 6M, 60M
D: 1M, 10M, 1H, 10H
E: 3M, 30M, 3H, 30H | SEC: 1, 3, 6, 10, 12, 30, 60
MIN: 3, 6, 10, 12, 30, 60
HR: 3, 6, 10, 12, 30 | A: 0.05-0.5S/5S/30S/3MIN
B:0.1-10S/60S/6MIN
C: 0.5-5S/50S/5MIN/30MIN
D: 1-10S/100S/100MIN/60MIN
E: 5-60S/10S/60MIN/6H
F: 0.25-2MIN/20MIN/2H/12H
G: 0.5-4MIN/40MIN/4H/24H |
| Rated Voltage (V) | AC:12, 24, 110, 220, 240, 380 50/60Hz
DC: 12,24 | AC:12, 24, 110, 220, 240, 380 50/60Hz
DC: 12,24 | AC:12, 24, 110, 220 50/60Hz
DC: 12,24 | AC:12, 24, 110, 220 50/60Hz
DC: 12,24 |
| Indicator Operating | ON-UP Operating | Time Operating Flicker | ON-UP Operating | ON-UP Operating |
| O/P Contact | Model | AH3-1 | AH3-2 | AH3-3 | Mode A/B | ST2P-E | ST3PA | ST3PC |
| Time Limit 1C | 5A |
|
|
| 5A |
| 5A |
| 5A |
| Time Limit 2C |
| 5A |
| 5A |
| 5A |
| 5A |
|
| Instantaneous 1C |
|
| 5A |
| 5A |
| 5A |
| 5A |
| Life | Mechanical | 5×106Times | 5×106Times | 5×107Times | 5×107Times |
| Electrical | 105 Times | 105 Times | 105 Times | 105 Times |
| Accuracy | Repeat Error | ±1%max | ±1%max | ±2%max | ±2%max |
| Setting Error | ±10%max | ±10%max | ±5%max | ±5%max |
| Voltage Error | ±1%max | ±1%max | ±5%max | ±5%max |
| Temp Error | ±2%max | ±2%max | ±2%max | ±2%max |
| Reset time | 0.1 sec max | 0.1 sec max | 0.5 sec max | 0.5 sec max |
| Consumed Power | 3VA | 3VA | 3VA | 3VA |
| Ambient temperature | -10ºC~+55ºC | -10ºC~+55ºC | -10ºC~+55ºC | -10ºC~+55ºC |
| Ambient Humidity | 48~85%RH | 48~85%RH | 35~85%RH | 35~85%RH |
| Weight | 160g | 160g | 100g | 100g |
| Model | H3Y | H3BA-8 / H3BA-11 | H3CR-A8 | H3CA-A | H3CA-8 |
| Dimension | 25H×21W×52.6D | 48H×48W×93.5D | 48H×48W×81.6D | 48H×48W×81.6D | 48H×48W×81.6D |
| Mounting Socket | Surface(-N) | PYF083A(E) | PYF14A(E) | PF113A(E) | PF083 APS-08 | PS-08 PF083A | PF11A(E) | PS-08 PF083A |
| Flush(-Y) | With Y-20 adapter | US-11 | US-08 P3G-08 | US-08 P3G-08 | US-11 | US-08 P3G-08 |
| Full Timing Range | SEC: 1, 3, 5, 10, 30, 60, 120
MIN: 3, 5, 10, 30, 60
HR: 3 | 0.1S~100H | 0.5 S~300H | 0.1 S~9990H | 0.1 S~9990H |
| Rated Voltage (V) | AC:12, 24, 110, 220, 240 50/60Hz
DC: 12,24 | 24 to 240 DC/AC
AC: 24, 48, 110, 220
DC: 12, 24, 48 | AC:24, 110~240(50/60 Hz)
DC:12, 24~240(50/60 Hz) | AC:24~240(50/60 Hz)
DC:24~240(50/60 Hz) | AC:24, 110, 220(50/60 Hz)
DC:24, 48~240(50/60 Hz) |
| Indicator Operating | Power, up operating | Time operating flicker | Time Operating Flicker | LCD | LCD |
| O/P Contact | Model | H3Y-2
5A | H3Y-4 | H3BA | H3BA-8 | H3BA-8H | H3CR-A8 | H3CA-A | H3CA-8 |
| Time Limit 1C |
|
|
| 5A |
| 5A |
|
| Time Limit 2C | 3A(4C) | 5A | 5A |
| 5A(AC250) |
| 5A |
| Instantaneous 1C |
|
|
| 5A |
|
|
|
| Life | Mechanical | 5×106Times | 107Times | 107Times | 107Times | 107Times |
| Electrical | 105 Times | 105 Times | 105 Times | 105 Times | 105 Times |
| Accuracy | Repeat Error | ±3%max | ±2%max | ±5%max | ±5%max | ±5%max |
| Setting Error | - | ±5%max | ±5%max | ±5%max | ±5%max |
| Voltage Error | ±2% sec | ±5%max | ±5%max | ±5%max | ±5%max |
| Temp Error | ±5% sec | ±2%max | ±2%max | ±2%max | ±2%max |
| Reset time |
| 0.5 sec max |
|
|
|
| Consumed Power | 3VA | 100-240VAC: 10A
12VDC, 4~240VCD: 1.5W | 100-240VAC: 10A
12VDC, 24~240VCD: 1.5W | 100-240VAC: 10A
12VDC, 24~240VCD: 1.5W | 100-240VAC: 10A
12VDC, 24~240VCD: 1.5W |
| Ambient temperature | -10ºC~+55ºC | -10ºC~+55ºC | -10ºC~+55ºC | -10ºC~+55ºC | -10ºC~+55ºC |
| Ambient Humidity | 48~85%RH | 48~85%RH | 35~85%RH | 35~85%RH | 35~85%RH |
| Weight | 45g | 100g | 100g | 100g | 100g |
