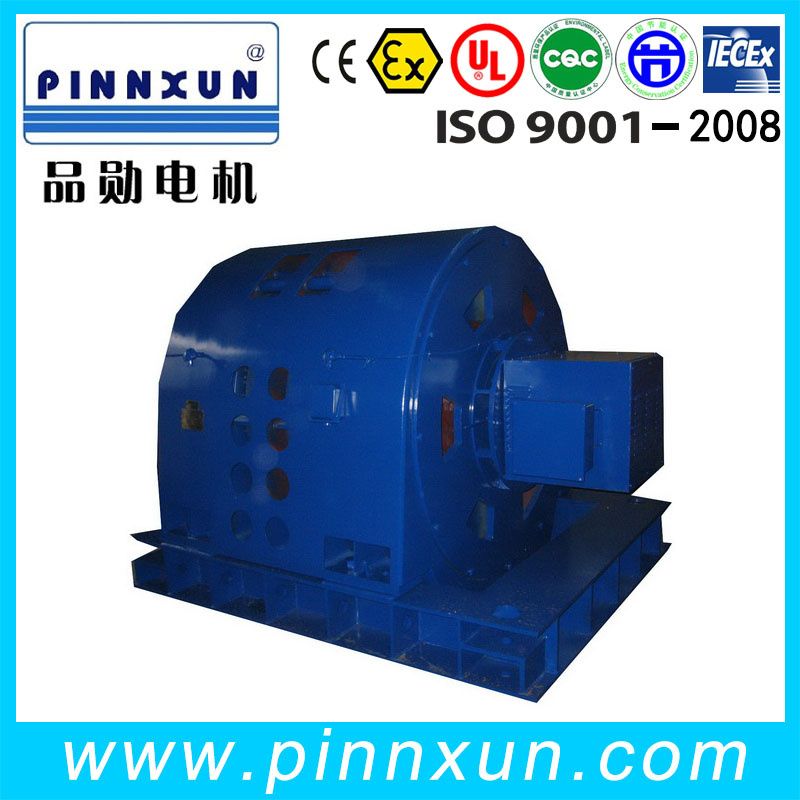

Tk, T 3phase Large Size Synchronous Motor (3kv 4kv 6kv 10kv)
| Price: |
US $ 20000/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Western Union |
| Prod Model: |
TK |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Voltage: |
3kv 6kv 10kv |
| Shape: |
Linear Power |
| Installation Type: |
Im7311/Im5710 |
| Frequency: |
50/60Hz |
| Cooling Method: |
IC01 |
| Protaction Class: |
IP00 |
| Insulation Class: |
F |
| Temprature Rise: |
B |
| Working Duty: |
S1(Continuous) |
| Output Power: |
400kw |
| Operation Mode: |
Electric Motor |
| Operating Speed: |
Constant Speed |
| Application: |
Power Tools |
| Ventilation: |
Closed |
| Structure: |
Rotating Pole Type (',Armature Fixed) |
| Number Of Poles: |
Three-Phase |
| Magnetic Structure: |
Permanent Magnet |
| Brand: |
Pinnxun |
| Certification: |
ISO9001 CE CCC |
Product Description
Specifications
T series ac efficiency synchronous motor
Good quality with pretty price
Their voltage grade is 380V.660V,6KV,10KV......Number of poles is 6 to 24,power range is 200KW to 1800KW.
Power range:160kw-6000kw
Frame Size:355-1000mm
Rated Voltage: 3.3KV 6.6KV 10KV 11KV 13.8KV
Speed;3000rpm 1500rpm 1000rpm 750rpm 600rpm
Protection Class: IP44 IP54 IP55
Cooling type;IC611 IC616
Ambient Temperature: -15°C~40°C
Altitude: not exceed 1000 Meter
Rated Frequency: 50Hz/60Hz
Insulation Class: F
Temprature rise: B
Working Duty: S1(Continuous)
Exhibition and production of us
Usage of synchronous motor
The motors of three-phase synchronous are uesd for dniving large machinerydemanding invanable speed. Forexample industnal fan.reciprocating compressor.Kibbler,water pump.rolling mill auxilixry drive,etc. They are characterized by ldading power factor that can ameliorate the factor of the net.reloiable operation,hifh of bigger over load multiple than the same three-phase AC asynchronous motors.otherw ise the loading changes.
Their voltage grade is 380V.660V,6KV,10KV......Number of poles is 6 to 24,power range is 200KW to 1800KW.
They are featured by advanced technology.reasonable structure,high insulation grad.good elecncal characteristic.reasonable operation and convenient installation &maintenance. Before it leaves the factory,all motors shall have passed strict electrical inspection and running test wish assured performances.
The motors have two construction types.salient pole and cryptic pole,and two mouning types,and horizontal type. The motors can be made two construction typed,one wish shaft and bearing(IM7311),the other without shaft and bearing (IM7311),The tyoe of cooling is often opening (IC01)and other types, The outer shell,s basic protection class is often IP00.also can be made of IP23 and other degrees, The insulation class is F. The temperature difference is measured by class B. The way of excitation is ststic excitation, If the consumer want other demand, the motorscan be made into special types with salt-fog moisture &mould-proof or for high elevation.

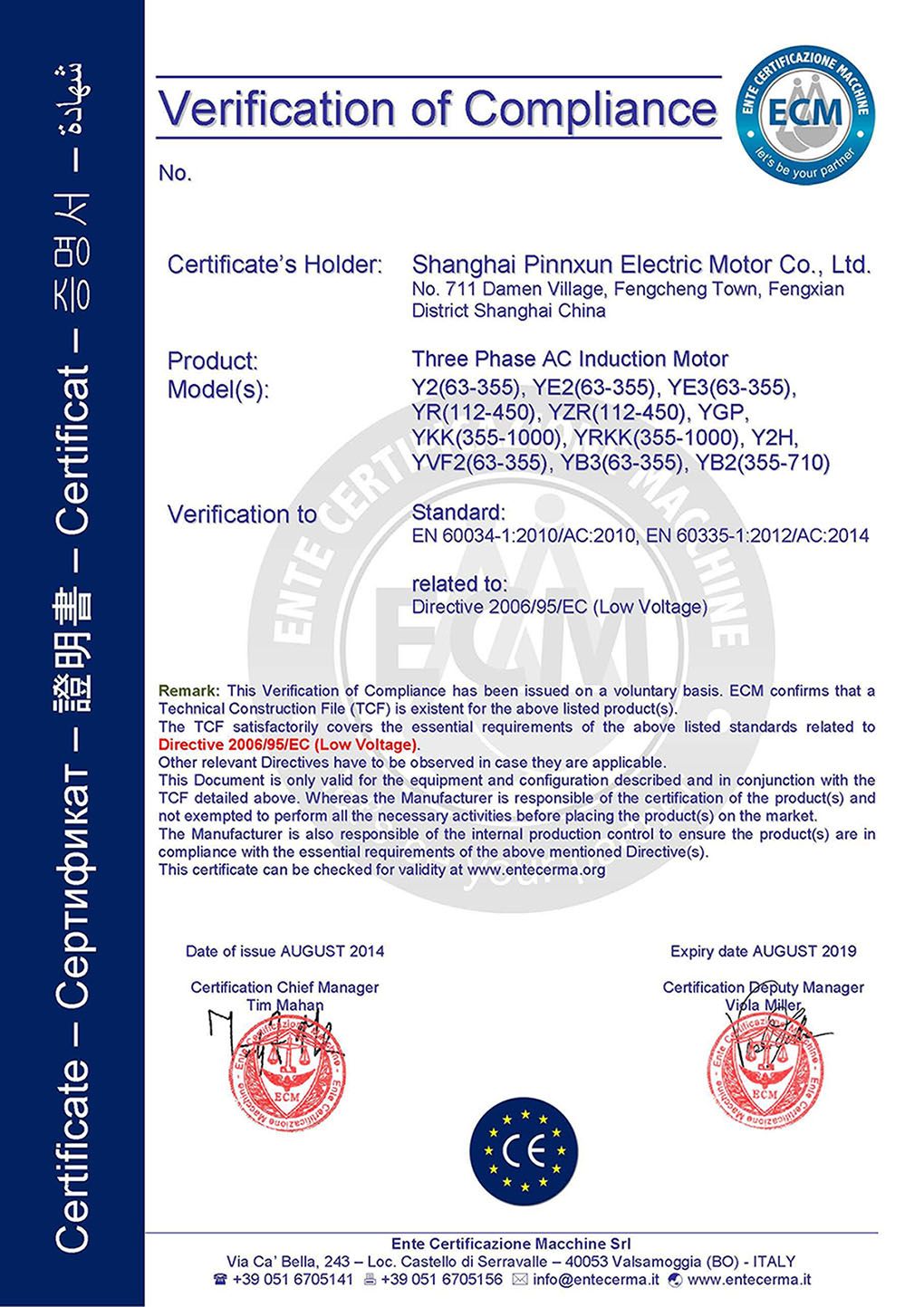

Certification To Guarantee We are Good In Quality
1.Please indicate the motor type,rated output,rated voltage,rated frequency,synchronous speed,Explosion proof Mark,mounting type,rotation direction(view from the shaft extension side)Use of the environment(indoor or outside)If the user havn't point out the rotation and environment,normailly we think is CW roration and used indoor.
2.when user have special requirments,For example:Dispose the stator,bearing explosion proof and bearing temperature sensors,space heater,Plateau use,specical frequency,mounting size change,special output,the user must ,order can be confirm after signing the technical agreement with engneering department .
3.The catalogue is only fpr reference,and there may be variations.
4.This range of motor can also be made into Variable-Frequency motors,the range of frequency of which is 0-100HZ,the output and overall dimensions should be confirm separately.
Strong Package Ensure Motor safe enough for Ship or Truck Transportation
|
Rated voltage |
6kv, 3kv, 10kv |
|
Power range |
450-10000kw |
|
Protection degree |
IP44, IP54 |
Shanghai Pinnxun Electric Motor Co., Ltd located in the Beautiful scenery, convenient transportation international metropolis, ----Shanghai. Is a modernized large scale enterprise for motor and control system manufacturing, R&D, sales and services. Pinnxun always take good faith, responsibility, carefulness and excellence as our management philosophy, committed to providing customers with superior quality products, perfect solutions and Advisory pre and after sales service.
Pinnxun Motor had passed the ISO9001-2008 quality control system certificate and European Union CE certificate. Company products was designed and manufactured strictly according to IEC and DIN standards of high efficiency, energy saving, economy, environmental protection requirments, Company have sellf-support right to import and export. Motors and had widely export to more than 40 countries including Europe, Australia, Southeast Asia, Middle East, Africa and other countries and regions. Companies continue to introduce advanced production technology, while continuing to improve their management level, To set up a solid foundation for the company' S development.
Products including Low voltage three phase AC motor, high voltage motor, large size synchronous motor, Russia GOST standard motors and DC motor, They are widely use in Electricity, Coal industry, Petro industry, Mining, Metallurgy, Railway industry, Transportation, Chemical, Paper making, Printing-Dyeing, industry, Navigation, Irrigation, Military and other high-tech areas. They are designed precision, long life, low noise, stable performance, low failure rate, high technology characteristics, they had win widely praised by global user in various fields, As our company' S rapid development, we plan to establish multiple business outlets in the nation' S major industrial cities and expand our sale department around the world.
We take Integrity as our fundamental, market as the guide, brand as the honor, quality as our life, provide our clients energy saving, environmental protection, safe, efficiency and first-class products. And quality pre-sale after-sales service, focus on creating "pinnxun "brand,
We warmly welcome customer to contact and visit us, we would like to establish stable and long terms relationships to support your business for mutual benefits.
