| Prod Model: |
JLD6312ZA-H1Y |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Lasing Wavelength: |
632nm~642nm |
| Optical Output Power: |
120MW |
| Can Type: |
To18-3.8mm |
| Power Characteristic: |
High Power |
| Life Time: |
10000 Hours |
| Light Color: |
Red |
| Ld Reverse Voltage: |
2V |
| Operating Current: |
165mA |
| Operating Voltage: |
2.7V |
| Operating Temperature: |
-10~+60 Degree |
| Manufacturing Technology: |
Optoelectronic Semiconductor |
| Material: |
Element Semiconductor |
| Type: |
Laser Diode |
| Package: |
Through Hole |
| Application: |
Laser Module, Optical Equipment for Measurement |
| Model: |
Hl63603tg |
| Brand: |
Opnext |

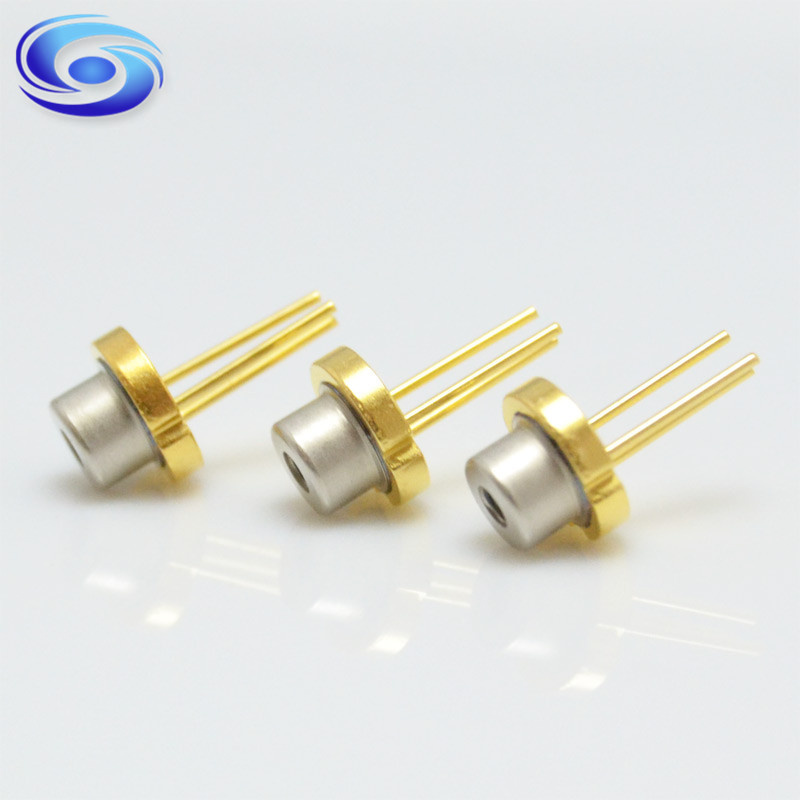

Product Description
Features:
1. Visible light output: 638nm Typ
2. Optical output power: 120mw CW
3. Small package: φ3.8mm
A. Product Description
Absolute Maximum Ratings (Tc=25ºC)
| Items | Symbols | Values | Unit |
| Output Power(1)(-10 to +50 ºC) | Po(1) | 120 | mW |
| Output Power(2)(+50 to +60 ºC) | P0(2) | 90 | mW |
| LD Reverse Voltage | V | 2 | V |
| Operating Temperature | Top | -10 ~ +60 | ºC |
| Storage Temperature | Tstg | -40 ~ +85 | ºC |
Initial Electrical /Optical Characteristics(Tc=25ºC)
| Item | Symbol | Min | Typ | Max | Unit | Test Condition |
| Threshold current | Ith | - | 50 | 65 | mA | - |
| Operating current | Iop | - | 165 | 200 | mA | Po=120mW |
| Operating voltage | Vop | - | 2.7 | 3.0 | V | Po=120mW |
Beam Divergence
Parallel to the junction | θ// | 5 | 8.5 | 13 | º | Po=120mW |
Beam Divergence
Perpendicular to the junction | θ⊥ | 13 | 18 | 23 | º | Po=120mW |
| Lasing wavelength | λp | 632 | 638 | 642 | nm | Po=120mW |
B. Packaging & Shipping
1. Plastic box, standard and normal package
2. Delivered by DHL, FedEx, Post Service, Aramex, GLE, etc, or any other special way you like
3. Delivery time will be usually 3~5 working days
C. Company Information & Services
Every customer's admiration is our goal and future willing, we are concentrated in doing
the best quality products, supplying the best goods and service.
Main products: Semiconductor laser diode, laser module, laser power bank, bicycle lasertail light, bicycle wheel light, headlight, auto laser fog light. The laser wavelength includig:405nm 410nm 445nm 450nm 455nm 510nm 515nm 520nm 532nm 635nm 638nm 642nm650nm 658nm 780nm 785nm 808nm 820nm 830nm 850nm 980nm RGB and so on.
