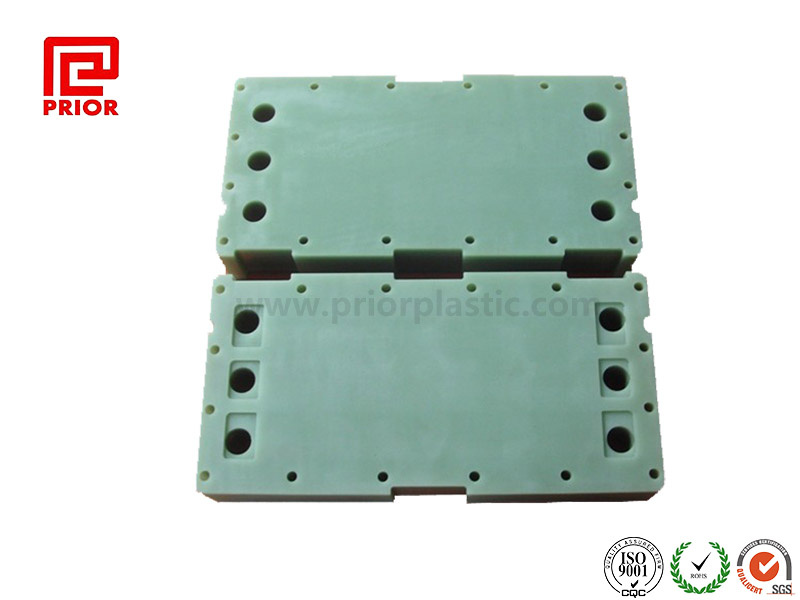

Top Hat Material Fr4 Sheet with High Work Temperature

Prod Model:	PR-FR4-1
Density:	1.9g/cm3
Thickness:	2/3/4/5/6/8/10/12/15/20/25/30mm
Size:	1020*1220mm, 1220*2440mm
Fob Port:	Shenzhen
Sample Availability:	Yes
Lead Time:	3-5 Days
Service:	Cut-to-Size
Application:	Switch Baseplate
Type:	Insulation Sheet
Thermal Rating:	F 155
Material:	Fiber Glass Reinforced
Color:	Black,Grey

Product Description

Top hat material FR4 sheet with high work temperature

Prior Plastic is one of the most professional manufacturer of wave solder pallets and reflow solder pallets in China. Each one of our pallet is custom designed to meet our client's requirements. Just tell us your ideas,our experienced engineers will offer the best solution for you.

Key Features
-Light weight compared to aluminum
-Provide thermal protection for PCB areas that are heat sensitive
-Eliminate solder skipping and reduces rework
-Allow processing of odd-shaped PCB's through conveyor system
- Increase assembly production by eliminating hand gluing and masking operations
-Assure easy,safe,cost-effective handling of PCB

Our advantages
-Price: With our own pallet materials and CNC machines, we can provide the most competitive price to our clients.
-Quality: With rich production experience, our pallets have been widely approved by our clients both home and abroad. The precision can be controled within -/+0.02mm
-Lead time: 7-10 days for samples, 15-18 days for bulk order.
-Professional sales team: Our sales engineer know well about material&machining. You can discuss any engineering issue with us freely.

Welcome to send your 2D or 3D drawings to us for inquiry, you will get best price and service!


 We can also design pallets as per client's requirement. Below information are necessary for the pallet design.
1.2D drawing(.dwg or PDF) or 3D drawing(.STEPor .IGS) of wave solder pallets
2.Gerber file of  PCB bare board+ Loaded PCB sample(PCB board with electronic components)

Technical data sheet

Name	Alternative Durostone CAS761 Sheet
Grade	Anti-static
Color	Black
Density(g/cm3)	1.9±0.5
Flexural Strength 3 point support⊥(Mpa)	420
Water Absorption(%)	<0.18
Coefficient of linear Expansion(10-6/k)	12
Thermal Conductivity (w/m0k)	0.25
Maximum Operating Temperature(ºC) 10-20seconds	380
Standard Operating Temperature(ºC)	280
Life Cycles(Times)	>15,000
Surface Resistivity(Ω)	10^5-10^9
Thermal Capacity(J/kgk)	930
Modulus of Elasticity (Mpa)	20000
Chemical Resistance	Good
Thickness Available(mm)	2,3,4,5,6,8,10,12,15,20,25,30
Thickness Tolerance(mm)	±0.1
Flatness Tolerance (For a panel size of 300*300	±0.1
Parallelism(mm)	±0.1
Sheet Size (mm)	1020*1220mm,1220*2440mm
