| Prod Model: |
GT-P02B |
| Color: |
Blue |
| Wavelength: |
460-470nm |
| Volt: |
2.8-3.4V |
| Current: |
350mA |
| Luminous Flux: |
20-30lm |
| Base: |
Copper |
| Wire: |
1.2mil 99.99% Gold Wire |
| Usage: |
Wall Lamp |
| Power: |
1W |
| Housing Material: |
Copper |
| Life: |
50000h |
| Certification: |
CE |
| LED Chips: |
Epileds |
Product Description

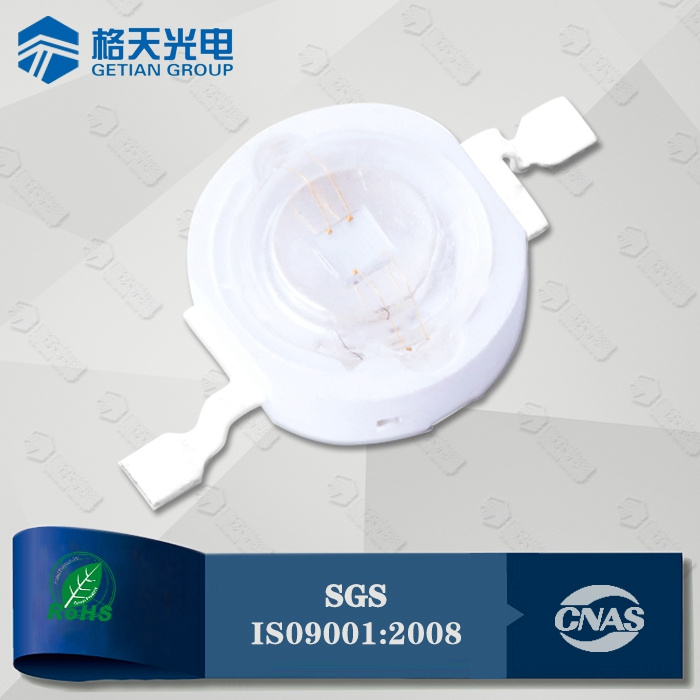

Top Quality 1W Power LED Diode Blue Color 20-30LM
We make a very wide range of color leds from 360nm to 850nm.
GETIAN has very strict raw material selection and verification process.
All high stability raw materials applied and various tests have been done on the performance.
Other color high power LED (360-850nm)
| Color | Power | Wavelength | Volt | Current | Chip | Luminous Flux |
| RGBW | 10W | R: 620-630nm
G: 515-525nm
B: 460-470nm
W: 5000-7000K | R: 2.2-3.0V
G: 3.2-4.0V
B: 3.2-4.0V
W: 3.2-4.0V | R: 800mA
G: 750mA
B: 750mA
W: 750mA | Color: Epileds
W: LG | R: 80-100LM
G: 180-200LM
B: 30-50LM
W: 220-240LM |
| Red LED | 1W | 620-630nm | 2.0-2.8V | 400mA | Epileds 32mil | 30-50LM |
| 1-3W | 620-630nm | 2.0-2.8V | 400mA | Epileds 42mil | 50-80LM |
| 1W | 640-660nm | 2.0-2.8V | 400mA | Epileds 38mil | 20-30LM |
| 1-3W | 640-660nm | 2.0-2.8V | 400mA | Epileds 42mil | 20-30LM |
| Green LED | 1W | 515-525nm | 2.8-3.4V | 350mA | Epileds 30mil | 60-80LM |
| 1-3W | 515-525nm | 2.8-3.4V | 350mA | Epileds 45mil | 100-120LM |
| Blue LED | 1W | 460-470nm | 2.8-3.4V | 350mA | Epileds 30mil | 10-20LM |
| 1-3W | 460-470nm | 2.8-3.4V | 350mA | Epileds 45mil | 20-30LM |
| Yellow LED | 1W | 585-595nm | 2.0-2.8V | 350mA | Epileds 38mil | 30-40LM |
| 1-3W | 585-595nm | 2.0-2.8V | 350mA | Epileds 42mil | 40-60LM |
| IR LED | 1W | 740-745nm | 1.7-1.9V | 400mA | Epileds 42mil | 70mW |
| 1W | 850nm | 1.5-1.7V | 400mA | 80mW |
| UV LED | 1-3W | 360-370nm | 1W: 3.0-3.6V
3W: 3.5-4.5V | 1W: 350mA
3W: 750mA | Epileds 45mil | 100-200mW |
| 370-380nm | 200-300mW |
| 380-390nm | 300-500mW |
| 390-400nm | 400-600mW |
| 400-410nm | 400-600mW |
| 410-420nm | 400-600mW |
| RGB LED | 3W | R:620-630nm
G: 515-525nm
B: 460-470nm | R:2.0-2.6V
G: 2.8-3.4V
B: 2.8-3.4V | R:400mA
G: 350mA
B: 350mA | Epileds 32/30mil | R: 30-50LM
G: 60-80LM
B: 10-20LM |
| RGB LED | 3W | R:620-630nm
G: 515-525nm
B: 460-470nm | R:2.0-2.6V
G:2.8-3.4V
B: 2.8-3.4V | R:400mA
G: 350mA
B: 350mA | Epileds 42/45mil | R: 50-80LM
G: 100-120LM
B: 20-30LM |
Application
Landscape Lighting
Plant grow Llighting
Wall Wash Lamp
Stage Lighting
Moving Head
Aquarium Lamp
Architecture Lighting
Spot Lamp
Blub Lamp
About US
Getian, established in 2005, is a professional first-class LED manufacturer mainly specializing in the R & D,
production and sales of High Power LED 1-500W, Flip Chip LED 1-500W,SMD LED, LED drivers and Finished
LED Luminaires for outdoor lighting. Getian has ahieved amazing LM-80 test resutls for high power led 1-300W Series.
Getian has a production area of more than 12,000 square meters with over 600 employees.
ISO9001-2008 Quality Control System and ERP Management System have been introduced in 2009.
Getian owns 15 fully automatic high power led production lines and a set of advanced equipment for flip chip led.
Getian equips with a high-level R & D lab that has been accredited by CNAS.
Why Choose Our Color High Power LED?
Strong R & D Forces
* A strong R & D team of more than 40 experienced engineers.
* CNAS Accredited Laboratory.
* Launch highly-competitive new products seasonly.
* Customized Product for clients.
Extensive Application Experience & Quality Commitment
* Strict control over raw materials selection.
* 3-5 Years Warranty;
* More than 10 years' experience in indoor & outdoor Lighting application both in domestic and overseas market.
* Supported many government lighting projects.
Outstanding Service Level
* Professional Sales Team backing up with experienced engineers.
* Best Quality & Best Price & Best Service.
* Customizaiton and OEM service available.
