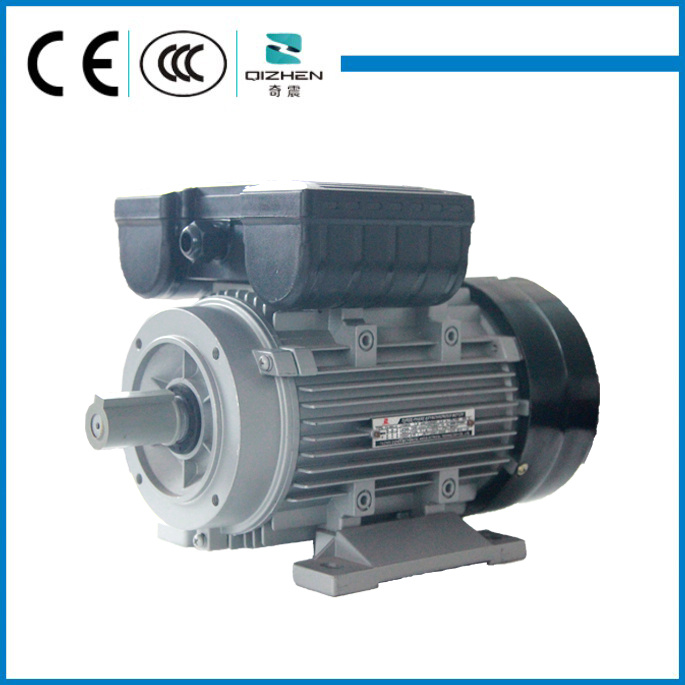

Top Quality MC Series Single Phase Motor

Top Quality MC Series Single Phase Motor
Price: US $ 65/Piece
Trade Terms: FOB
Min Order: 50/Piece
Pay Type: L/C,T/T
Prod Model: MC63~160
Markets: South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia
Frame: 63~160
Housing: Aluminium
Protection Class: IP44, IP54
Insulation Class: F
Core Wire: Copper Wire
Poles: 2p, 4p
Duty: S1
Mounting: B3, B5, B35
Application: Power Tools
Operating Speed: Low Speed
Number Of Stator: Single-Phase
Rotor Structure: Squirrel-Cage
Casing Protection: Protection Type
Species: Single Phase
Starting Mode: Capacitor Starting
Brand: Qizhen

Product Description

YC Series Single Phase Capacitor Start Asynchronous Motor is suitable for air compressor, pump and other equipment of high start torque.
The series motor features by high start torque, excellent running performance, little shape, light weight, low noise and easy maintenance.

Protection Class: IP44/IP54/IP55 Cooling Type: IC0141
Insulation Class:B or F    Operation Type: S1
Rated Voltage: 115/230,220V        Rated Frequency: 60 Hz(50Hz)
Shell material: casting iron and aluminium alloy (only used below 100)
Technical Data (220V/50Hz)

Type

Power

Current
(A)

Power Factor
(cos¢)

Eff
(%)

Speed
(r/min)






HpkW
YC71121/40.181.890.726028003.071.8
YC71221/30.252.40.746428003.071.8
YC80121/20.373.40.776528002.86.51.8
YC80223/40.554.70.796828002.86.51.8
YC90S-210.756.10.87028003.06.51.8
YC90L-21.51.18.70.87228002.571.8
YC90L-221.511.40.817428002.571.8
YC100L-232.216.50.817528002.271.8
YC100L1-24321.880.827628002.26.81.8
YC100L-253.726.640.827728002.26.41.8
YC112M-24321.40.827628002.271.8
YC71141/60.121.880.585014003.091.8
YC71241/40.182.490.625314002.871.8
YC80141/30.253.110.635814002.861.8
YC80241/20.374.240.646214002.561.8
YC90S-43/40.555.50.696614002.561.8
YC90L-410.756.90.736814002.56.51.8
YC90L-41.51.19.60.747114002.56.51.8
YC100L-421.512.50.757314002.56.51.8
YC112M-432.217.8

0.76

7414002.26.51.8
YC132S-44323.60.777514002.16.51.8
YC132S-453.7280.797614002.16.51.8
YC132M-47.55.532.50.958114002.16.51.8
