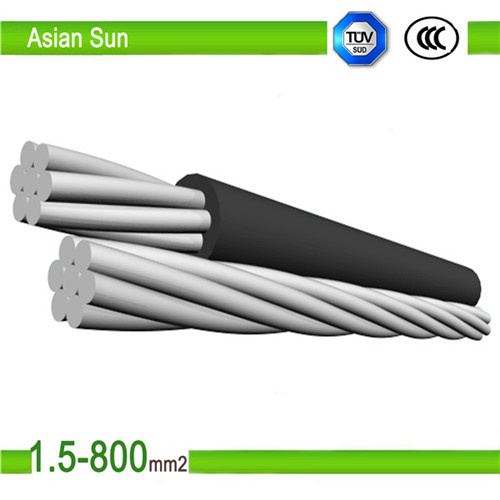

Top Quanlity Duplex ABC Cable Overhead Line XLPE Insulated Cable
| Price: |
US $ 0.2-8.9/Meter |
| Min Order: |
2000/Meter |
| Pay Type: |
L/C,T/T,Western Union,Paypal |
| Prod Model: |
AS-ABC-002 |
| Cable Type: |
Low Voltage Cable |
| Rated Voltage: |
600/1000 Volts |
| Cross Section Area: |
1.5-800mm2 |
| Standard: |
BS IEC ASTM DIN |
| Certificate: |
ISO9001/ISO14001 /Ohsas18001/CCC |
| Color: |
Black |
| Type: |
Insulated |
| Conductor Type: |
Stranded |
| Application: |
Overhead |
| Conductor Material: |
Aluminum |
| Certification: |
RoHS |
| Insulation Material: |
None |
| Range Of Application: |
Overhead |
| Brand: |
Asian Sun |
Product Description

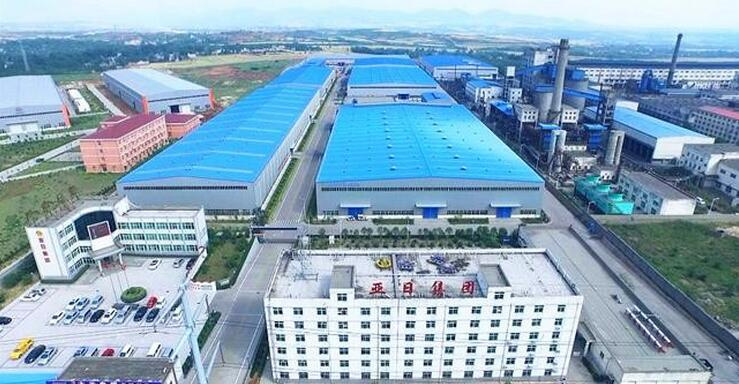

Factory InformationTop quanlity duplex abc cable overhead line xlpe insulated cableLuoyang Asian Sun Industrial Group Co., Ltd. was established in 2006 with RMB 50 million registerde capital in Luoyang, Henan Province, China. Now our total assets is RMB 300 million. The company covers an area 61,081 square meters, and has 4 affiliates with more than 300 employees including 15 engineers and technicians.
SPECIFICATIONS FOR ABC CABLE | | | | | | |
| Size | PHASE CONDUCTOR | NEUTRAL CONDUCTOR | Appox. |
Stran-ding | | | Stranding | O.D. | Rated Strength | |
No./mm |
| AWG | No./mm | mm | mm | Al. | Steel | mm | kg | Kg/km |
| 6 | 7/1.55 | 1.44 | 6.93 | 6/1.68 | 1.68 | 5.04 | 539.77 | 111.6 |
Terrier | 4 | 7/1.96 | 1.14 | 8.16 | 6/2.12 | 2.12 | 6.38 | 843.68 | 169.63 |
Chow | 2 | 7/2.47 | 1.14 | 9.69 | 6/2.67 | 2.67 | 8.01 | 1292.74 | 261.89 |
| 1/0 | 19/1.89 | 1.52 | 11.73 | 6/3.37 | 3.37 | 10.11 | 1986.74 | 416.64 |
Top quanlity duplex abc cable overhead line xlpe insulated cable
xlpe insulation abc cable
Primarily used for 120 volt overhead service applications such as street lighting, outdoor lighting, and temporary service for construction. To be used at voltages of 600 volts phase-to-phase or less and at conductor temperatures not to exceed
75°C for polyethylene insulated conductors or 90°C for cross-linked polyethylene
(XLPE) insulated conductors.
xlpe insulation abc cable
service drop cable meets or exceeds the following ASTM specifications:
· B-230 Aluminum Wire, 1350-H19 for Electrical Purposes.
· B-231 Aluminum Conductors, Concentric-Lay-Stranded.
· B-232 Aluminum Conductors, Concentric-Lay-Stranded, Coated Steel Reinforced (ACSR).
· B-399 Concentric-Lay-Stranded 6201-T81 Aluminum Alloy Conductors.
· B-901 Compressed Round Stranded Aluminum Conductors Using Single Input Wire
Conductors are concentrically stranded, compressed 1350 H-19 aluminum. Insulated with either polyethylene or cross-linked polyethylene
(XLPE). Neutral messengers are concentrically stranded 6201, AAC, or ACSR.
Certifications
Cable Material

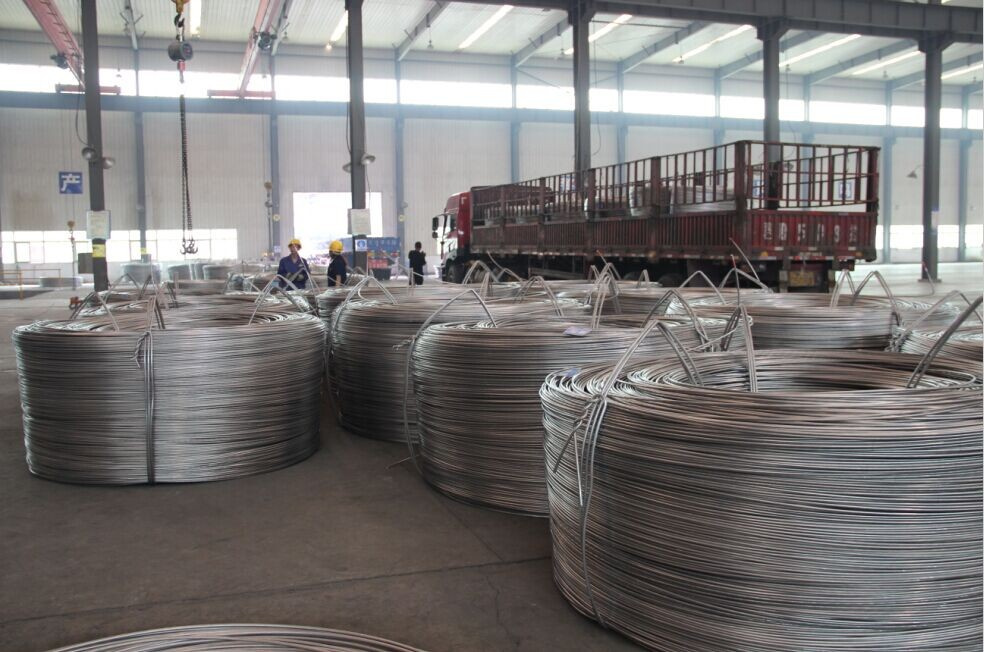

Name:The production line of aluminum rod
Raw Material: Aluminum water
Production Capacity: 9000Ton /month
We have four production lines of aluminum rod ,they are working day and night .Our company produce aluminum rod, quality, price concessions, products sold at home and abroad
Conductor Production

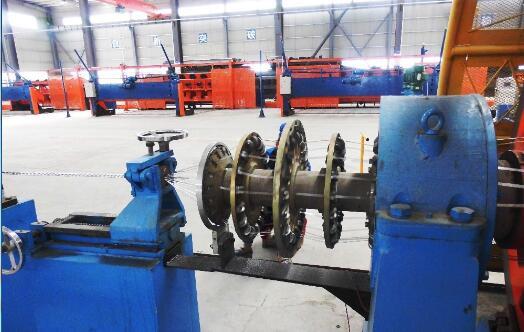

Name:500 Type new frame-type strander
Production Capacity:50km/day
Coil packaging around the perimeter of the grinding cage into four parts, focus on disk, equipment rigid high intensity, good overall performance, small amount of rotational inertia and high speed.
Insulation Machine
Name: Extruding machine
Application
Extrusion molding machine is a kind of important plastic machinery, most of the plastic products production and manufacturing can rely on extrusion molding implementation.
Packing Drum
Material: Fumigated &treated timber wooden drum
Wooden package optional:
Size: 0.5*0.5*0.5m or as you required.
0.6*0.6*0.6m 0.7*0.7*0.7m
1.1*1.1*0.8m 2.2*2.2*1.8m
Or suitable meters according to your size.
Our Service
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
| Packaging |
| Size | 1800 (L) * 1200(W) * 1800 (H) |
| Weight | 250KG |
Packaging Details | The normal package is wooden drum(Size: L*W*H). If export to european countries,the wooden
box will be fumigated.If container
is too tigher,we will use pe film for packing or pack it according to customers special request |
| Packaging |
| Size | 123 (L) * 456 (W) * 789 (D) |
| Weight | 1.2 T |
Packaging Details |
1.We use the fumigated &treated timber wooden box to package cables,
2. Wooden package optional:
Size: 0.5*0.5*0.5m or as you required.
0.6*0.6*0.6m 0.7*0.7*0.7m
1.1*1.1*0.8m 2.2*2.2*1.8m
3. Wooden plate sealed.
4. Suitable meters according to you.
5. 72 pcs of 0.7m wooden reel can be put in one 20FCL. |
Contact with usMs.Bella
How happy we we are to have friends afar!
Started in year 2006, Luoyang Asian Sun Group - formerly known as 'Luoyang YaRi'- was a small factory with only tens of employees back then, but after years of growing and developing, now we are a group company with 5 branch companies, with more than 800 employees including 100 engineers and technicians, and with registered capital 410 million RMB. Our factories are located in county Yichuan, Luoyang, Henan, China, and our headquarters are in the beautiful historic city Luoyang. Totally we have 20, 000 square meters area for production and management, with fixed assets valuing 960 million RMB.
Our main products are power transformer, ABC cable, ACSR, AAC, Aluminum rod, PV bracket, screw pile, power cable, and aluminum bar etc. We also carry on projects of engineering, electrical installation and other general contracting. Our research, production and management are strictly in accordance with the ISO9001 quality system, ISO14001 environment system, OHSAS18001 occupational health and safety management system, the EU TUV, etc. The quality assurance is carried out in every aspect of design, material selecting, production, testing, inspection and management.
At home, we have reached strategic cooperation agreements with State Grid Corporation of China, GD Solar Co., Ltd., Huaneng China, Datang Corporation, China Power Investment Energy Conservation and Environmental Protection Group, and other large state-owned enterprises. At abroad, our products have been exporting to Russia, Middle East Asia, European Union, South America, Africa and other parts of the world.
Our continuing growth and success have been the direct result of the excellent word-of-mouth we consistently earn from both our new and established clients. Thinking of others' benefit and win-win cooperation is the core idea of our company culture. Perfection is not easy to achieve, but we chase it and we can catch excellence. Our excellence is the glamour which brings the good quality and service into every clients.
We guaranteed products at a competitive price and high quality. At present, our products have a very good sale in domestic and overseas market. We wish to cooperate with you to create a bright future and mutual benefit. Much appreciation for your prompt attention in advance, we are eager to look forward to hearing from you soon.
