Top sale Y2 series high rpm electrical motor

Name: Top sale Y2 series high rpm electrical motor
Brand: all-electronics-online.com
SKU: 779424445
Availability: InStock
Rating: 4.8 (23 reviews)

Price:	US $ 100/Piece
Trade Terms:	FOB
Min Order:	200/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	Y2
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Product Name:	Electric Induction Motor
Housing:	Cast Iron or Aluminum Shell
Protection Class:	IP44 / IP54
Core Wire:	100% Copper Wire
Poles:	2, 4, 6, 8, 10 Poles
Frame:	63~315
Insulation Class:	F
Number Of Stator:	Three-Phase
Function:	Driving
Certification:	CE

Product Description

Taizhou Factory Price For Induction AC Electric Motor

Y2series electric motor has the advantages of high efficiency, energy saving, fine operation performance, small vibration, low noise, long service life, high reliability, convenient maintenance, big breakaway torque, Fixing measurement and power grade completely conform to IEC standard. It employs Grade B insulation, IP54 class for shell protection and IC411 cooling mode.

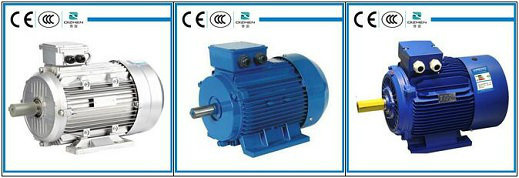

Product Image

Technical Data

Type	KW	A	r/min	Eff %	Power factor	Locked rotor torque Rated torque	Locked rotor current Rated cuffrent	Breakdown torque Rated torque


Synchronous Speed 3000r/min
Y2-63M1-2	0.18	0.53	2720	65	0.8	2.2	5.5	2.2
Y2-63M2-2	0.25	0.69	2720	68	0.81	2.2	5.5	2.2
Y2-71M1-2	0.37	0.99	2740	70	0.81	2.2	6.1	2.2
Y2-71M2-2	0.55	1.4	2740	73	0.82	2.2	6.1	2.3
Y2-80M1-2	0.75	1.8	2840	75	0.83	2.2	6.1	2.3
Y2-80M2-2	1.1	2.6	2840	77	0.84	2.2	7	2.3
Y2-90S-2	1.5	3.4	2845	79	0.84	2.2	7	2.3
Y2-90L-2	2.2	4.9	2845	81	0.85	2.2	7	2.3
Y2-100L-2	3	6.3	2860	83	0.87	2.2	7.5	2.3
Y2-112M-2	4	8.1	2880	85	0.88	2.2	7.5	2.3
Y2-132S1-2	5.5	11	2900	86	0.88	2.2	7.5	2.3
Y2-132S2-2	7.5	14.9	2900	87	0.88	2.2	7.5	2.3
Y2-160M1-2	11	21.3	2930	88	0.89	2.2	7.5	2.3
Y2-160M2-2	15	28.8	2930	89	0.89	2.2	7.5	2.3
Y2-160L-2	18.5	34.7	2930	90	0.9	2.2	7.5	2.3
Y2-180M-2	22	41	2940	90	0.9	2	7.5	2.3
Y2-200L1-2	30	55.5	2950	91.2	0.9	2	7.5	2.3
Y2-200L2-2	37	67.9	2950	92	0.9	2	7.5	2.3
Y2-225M-2	45	82.3	2960	92.3	0.9	2	7.5	2.3
Y2-250M-2	55	100	2965	92.5	0.9	2	7.5	2.3
Y2-280S-2	75	135	2970	93	0.9	2	7.5	2.3
Y2-280M-2	90	160	2970	93.8	0.91	2	7.5	2.3
Y2-315S-2	110	195	2975	94	0.91	1.8	7.1	2.2
Y2-315M-2	132	233	2975	94.5	0.91	1.8	7.1	2.2
Y2-315L1-2	160	279	2975	94.6	0.92	1.8	7.1	2.2
Y2-315L2-2	200	348	2975	94.8	0.92	1.8	7.1	2.2
Y2-355M-2	250	433	2980	95.3	0.92	1.8	7.1	2.2
Y2-355L-2	315	544	2980	95.6	0.92	1.8	7.1	2.2
Synchronous Speed 1500r/min
Y2-63M1-4	0.12	0.44	1310	57	0.72	2.1	4.4	2.2
Y2-63M2-4	0.18	0.62	1310	60	0.73	2.1	4.4	2.2
Y2-71M1-4	0.25	0.79	1330	65	0.74	2.1	5.2	2.2
Y2-71M2-4	0.37	1.12	1330	67	0.75	2.1	5.2	2.2
Y2-80M1-4	0.55	1.6	1390	71	0.75	2.4	5.2	2.3
Y2-80M2-4	0.75	2	1390	73	0.76	2.3	6	2.3
Y2-90S-4	1.1	2.9	1390	75	0.77	2.3	6	2.3
Y2-90L-4	1.5	3.7	1390	78	0.79	2.3	6	2.3
Y2-100L1-4	2.2	5.2	1410	80	0.81	2.3	7	2.3
Y2-100L2-4	3	6.8	1410	82	0.82	2.3	7	2.3
Y2-112M-4	4	8.8	1440	84	0.82	2.3	7	2.3
Y2-132S-4	5.5	11.8	1440	82	0.83	2.3	7	2.3
Y2-132M-4	7.5	15.6	1440	87	0.84	2.3	7	2.3
Y2-160M-4	11	22.3	1460	88	0.84	2.2	7	2.3
Y2-160L-4	15	30.1	1460	89	0.85	2.2	7.5	2.3
Y2-180M-4	18.5	36.1	1470	90.5	0.86	2.2	7.5	2.3
Y2-180L-4	22	42.7	1470	91	0.86	2.2	7.5	2.3
Y2-200L-4	30	57.6	1470	92	0.86	2.2	7.2	2.3
Y2-225S-4	37	69.9	1475	92.5	0.87	2.2	7.2	2.3
Y2-225M-4	45	84.7	1475	92.8	0.87	2.2	7.2	2.3
Y2-250M-4	55	103	1480	93	0.87	2.2	7.2	2.3
Y2-280S-4	75	140	1480	93.8	0.87	2.2	7.2	2.3
Y2-280M-4	90	167	1480	94.2	0.87	2.2	7.2	2.3
Y2-315S-4	110	201	1480	94.5	0.88	2.1	6.9	2.2
Y2-315M-4	132	240	1480	94.8	0.88	2.1	6.9	2.2
Y2-315L1-4	160	288	1480	94.9	0.89	2.1	6.9	2.2
Y2-315L2-4	200	359	1480	95	0.89	2.1	6.9	2.2
Y2-355M-4	250	443	1490	95.3	0.9	2.1	6.9	2.2
Y2-355L-4	315	556	1490	95.6	0.9	2.1	6.9	2.2
Synchronous Speed 1000r/min
Y2-71M1-6	0.18	0.74	850	56	0.66	1.9	4	2
Y2-71M2-6	0.25	0.95	850	59	0.68	1.9	4	2
Y2-80M1-6	0.37	1.3	885	62	0.7	1.9	4.7	2
Y2-80M2-6	0.55	1.8	885	65	0.72	1.9	4.7	2.1
Y2-90S-6	0.75	2.3	910	69	0.75	2	5.5	2.1
Y2-90L-6	1.1	3.2	910	72	0.73	2	5.5	2.1
Y2-100L-6	1.5	3.9	920	76	0.75	2	5.5	2.1
Y2-112M-6	2.2	5.6	935	79	0.76	2	6.5	2.1
Y2-132S-6	3	7.4	960	81	0.76	2.1	6.5	2.1
Y2-132M1-6	4	9.8	960	82	0.76	2.1	6.5	2.1
Y2-132M2-6	5.5	12.9	965	84	0.77	2.1	6.5	2.1
Y2-160M-6	7.5	17.2	970	86	0.77	2	6.5	2.1
Y2-160L-6	11	24.2	970	87.5	0.78	2	6.5	2.1
Y2-180M-6	15	31.6	970	89	0.81	2	7	2.1
Y2-200L1-6	18.5	39.6	980	90	0.81	2.1	7	2.1
Y2-200L2-6	22	44.7	980	90	0.83	2.1	7	2.1
Y2-225M-6	30	59.3	980	91.5	0.84	2	7	2.1
Y2-250M-6	37	71.1	980	92	0.86	2.1	7	2.1
Y2-280S-6	45	85.9	980	92.5	0.86	2.1	7	2
Y2-280M-6	55	105	980	92.8	0.86	2.1	7	2
Y2-315S-6	75	142	985	93.5	0.86	2	7	2
Y2-315M-6	90	170	985	92.8	0.86	2	7	2
Y2-315L1-6	110	207	985	94	0.86	2	6.7	2
Y2-315L2-6	132	245	985	94.2	0.87	2	6.7	2
Y2-355M1-6	160	292	990	94.5	0.88	1.9	6.7	2
Y2-355M2-6	200	365	990	94.7	0.88	1.9	6.7	2
Y2-355L-6	250	455	990	94.9	0.88	1.9	6.7	2
Synchronous Speed 750r/min
Y2-80M1-8	0.18	0.88	645	51	0.61	1.8	3.3	1.9
Y2-80M2-8	0.25	1.15	645	54	0.61	1.8	3.3	1.9
Y2-90S-8	0.37	1.49	670	62	0.61	1.8	4	1.9
Y2-90L-8	0.55	2.17	670	63	0.61	1.8	4	2
Y2-100L1-8	0.75	2.4	680	71	0.67	1.8	4	2
Y2-100L2-8	1.1	3.4	680	73	0.69	1.8	5	2
Y2-112M-8	1.5	4.4	690	75	0.69	1.8	5	2
Y2-132S-8	2.2	6	705	78	0.71	1.8	6	2
Y2-132M-8	3	7.9	705	79	0.73	1.8	6	2
Y2-160M1-8	4	10.3	720	81	0.73	1.9	6	2
Y2-160M2-8	5.5	13.6	720	83	0.74	2	6	2
Y2-160L-8	7.5	17.8	720	85.5	0.75	2	6	2
Y2-180L-8	11	25.1	730	87.5	0.76	2	6.6	2
Y2-200L-8	15	34.1	730	88	0.76	2	6.6	2
Y2-225S-8	18.5	41.4	730	90	0.76	1.9	6.6	2
Y2-225M-8	22	47.4	730	90.5	0.78	1.9	6.6	2
Y2-250M-8	30	63.4	730	91	0.79	1.9	6.6	2
Y2-280S-8	37	77.8	740	91.5	0.79	1.9	6.6	2
Y2-280M-8	45	94.1	735	92	0.79	1.9	6.6	2
Y2-315S-8	55	111	735	92.8	0.81	1.8	6.6	2
Y2-315M-8	75	151	735	93	0.81	1.8	6.6	2
Y2-315L1-8	90	178	735	93.8	0.82	1.8	6.6	2
Y2-315L2-8	110	217	735	94	0.82	1.8	6.4	2
Y2-355M1-8	132	261	740	93.7	0.82	1.8	6.4	2
Y2-355M2-8	160	315	740	94.2	0.82	1.8	6.4	2
Y2-355L-8	200	387	740	94.5	0.83	1.8	6.4	2
Synchronous Speed 600r/min
Y2-315S-10	45	99.6	590	91.5	0.75	1.5	6.2	2
Y2-315M-10	55	121	590	92.2	0.75	1.5	6.2	2
Y2-315L1-10	75	162	590	92.5	0.76	1.5	6.2	2
Y2-315L2-10	90	191	590	93	0.77	1.5	6.2	2
Y2-355M1-10	110	230	590	93.2	0.78	1.3	6	2
Y2-355M2-10	132	275	590	93.5	0.78	1.3	6	2
Y2-355L-10	160	333	590	93.5	0.78	1.3	6	2

Stamping of lamination

Rotor die-casting
Winding and inserting - both manual and semi-automatically
Vacuum varnishing
Machining shaft, housing, end shields, etc
Rotor balancing
Painting - both wet paint and powder coating
Motor assembly
Packing
Inspecting spare parts every processing
100% test after each process and final test before packing

To avoid damp, inner layer wrapped with plastic paper
To lessen vibration, middle layer filled with foam
To avoild squeeze, motor are packed with plywood or wooden case
Customized package is also accept

Our company

1.We are professional manufacture with more than 17 years experience in motor.

2. Every year 500,000 to 600,000pcs of electric motor were exported to others countries.

3.We test the material before production and three to four times when producing to ensure the goods in good quality,also we produce according to your quirement.

4.Best production capability,best quality control,best service.

5.We can be your OEM manufacturer with your authorization of brand.

FAQ

Q1. What's your company's main products?

A: Our company is specialized in AC three phase motor and single phase motor.

Q2. What's your payment term?

A: 30% T/T in deposit,the rest against on the copy of B/L

Q3. What's the MOQ for your production?

A: The MOQ is 200pcs or depends on your products requirements

Q4. Is it all right to make customer's own brand name?
A: OEM is ok

Q5. Where is your loading port?

A: Ningbo/Shanghai, China or else port as for your request?

Q6. Are you a manufactuer or trading company?

A: We are a manufactuer
