Tops Y Y2 Yc Ycl Series Small AC Electric Motor Single/Three Phase

Name: Tops Y Y2 Yc Ycl Series Small AC Electric Motor Single/Three Phase
Brand: all-electronics-online.com
SKU: 733511042
Availability: InStock
Rating: 4.7 (104 reviews)

Price:	US $ 15-350/Piece
Min Order:	100/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Housing:	Cast Lron Housing
Voltage:	220V/380
Frequency:	50Hz/60Hz
Mounting:	B3, B5
Insulation Class:	F
Core Wire:	Copper
Application:	Power Tools
Operating Speed:	High Speed
Number Of Stator:	Single-Phase
Rotor Structure:	Winding Type
Casing Protection:	Closed Type
Starting Mode:	Direct on-line Starting
Brand:	Bro
Species:	Single Phase Motor
Certification:	Ce

Product Description

MY series aIuminium housing three-phase asynchronous motors, with latest design in entirety are made of selected quaIity materials and conform to the lEC standard which have good performance, safety and reIiable operation, nice appearance, and can be maintained very conveniently , with Iow noises, IittIe vibration and light weight and simpIe construction.

1.Detailed Product Description

1.CE certificate

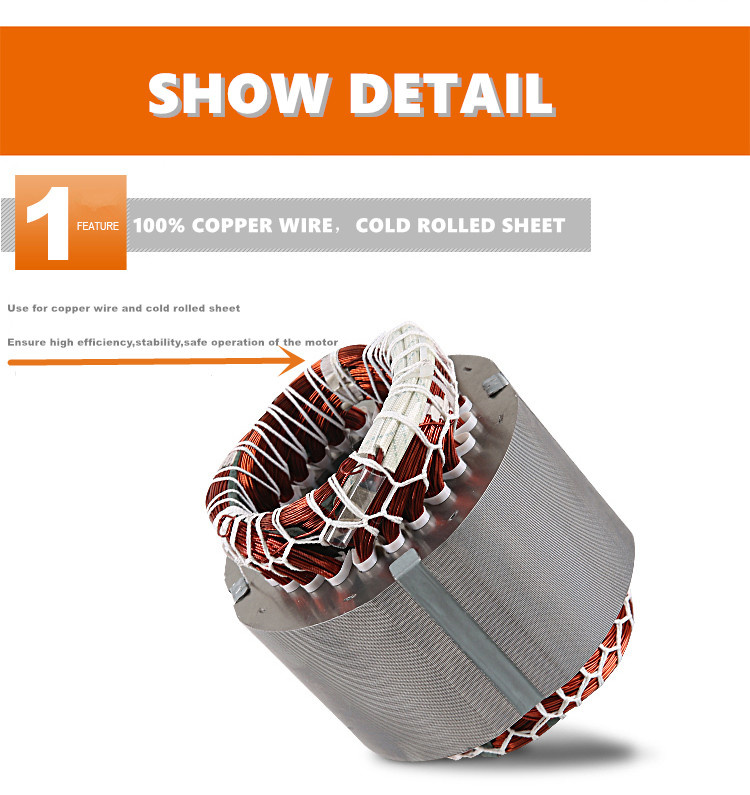

2.Copper wire

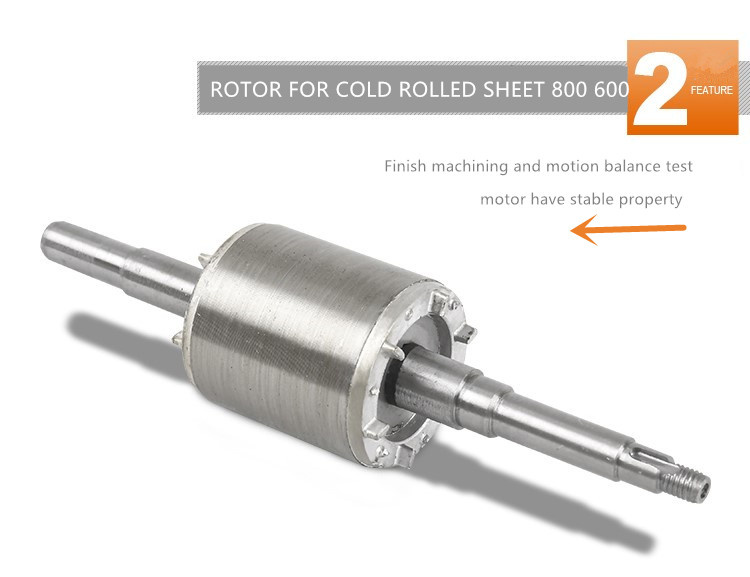

3.Cold-rolled silicon steel sheet

2.SPECIFICATIONS

1) Frame sizes: 56-132
2) Rated power: 0.06-1kw
3) Rated voltage: 220/380V,380/660V or on your request
4) Frequency: 50Hz, 60Hz or 50/60Hz
5) Protection class: IP44,IP54
6) Insulation class: B,F
7) Materials: Aluminum or Iron

Technical Date
Note: If you have any special requirements, please contact us.

TYPE	Output		Voltage	Current	Speed	Eff	Power	Tstart/Tn	Ist/In	Tmax/Tn
	KW	HP	(V)	(A)	(r. p. m)	(%)	factor	Tstart/Tn	Ist/In	Tmax/Tn
MY561-2	0.09	0.12	220	0.9	2730	54	0.9	0.85	4.5	1.7
MY562-2	0.12	0.16	220	0.97	2730	58	0.9	0.85	4.5	1.7
MY631-2	0.18	0.25	220	1.8	2740	63	0.9	0.8	4.5	1.7
MY632-2	0.25	0.33	220	2.16	2740	65	0.9	0.8	4.5	1.7
MY711-2	0.37	0.5	220	2.96	2750	68	0.95	0.8	4.5	1.7
MY712-2	0.55	0.75	220	4.15	2760	69	0.95	0.8	4.5	1.7
MY801-2	0.75	1	220	5.17	2780	70	0.95	0.7	4.5	1.7
MY802-2	1.1	1.5	220	7.26	2790	71	0.95	0.7	4.5	1.7
MY90S-2	1.5	2	220	9.67	2800	72	0.95	0.6	5	1.7
MY90L-2	2.2	3	220	14.1	2800	73	0.95	0.6	5	1.7
MY5614	0.06	0.08	220	0.68	1330	48	0.85	0.85	4.5	1.7
MY5624	0.09	0.12	220	0.99	1340	49	0.85	0.85	4.5	1.7
MY6314	0.12	0.16	220	1.22	1350	53	0.9	0.8	4.5	1.7
MY6324	0.18	0.25	220	1.75	1360	57	0.9	0.8	4.5	1.7
MY7114	0.25	0.33	220	2.2	1370	59	0.95	0.8	4.5	1.7
MY7124	0.37	0.5	220	3.12	1370	62	0.95	0.8	4.5	1.7
MY8014	0.55	0.75	220	4.2	1380	65	0.95	0.7	4.5	1.7
MY8024	0.75	1	220	5.8	1380	68	0.95	0.7	4.5	1.7
MY90S-4	1.1	1.5	220	7.6	1390	69	0.95	0.6	5	1.8
MY90L-4	1.5	2	220	10.2	1400	70	0.95	0.6	5	1.8

4.PACKAGE AND TRANSPORT

Why us?

1.Low MOQ: It can meet your promotional business very well.

2.Good Service : We treat clients as friends,offering 24 hrs a days 7days a week service support.

3.Good Quality :We have strict quality control system.Good reputation in the market.

4.Fast & Cheap Delivery: We have big discount from forwarder
