| Prod Model: |
LYD-3800 |
| Net Weight: |
70g |
| Gross Weight: |
105g |
| Output: |
4 CMOS Open Drain Output |
| Static Power Consumption: |
<1W |
| Output Current: |
<4A(Each Circuit) |
| Working Temperature: |
-20 - 60 |
| Application: |
Toys |
| Signal Transmission: |
RF Remote Control |
| Type: |
Button |
| Certification: |
CE |
| Universal: |
Universal |
| Transmission Distance: |
<50m |
| Material: |
Plastic |
| Battery Type: |
Button Battery |
| Voltage: |
DC12V~24V |
Product Description
Basic Info| Place of Origin: | Guangdong, China (Mainland) | Brand Name: | louita | Model Number: | LYD-3800 |
| Type: | Remote Control | Max. Load Power: | 384W | Voltage: | 12~24V |
Product Description

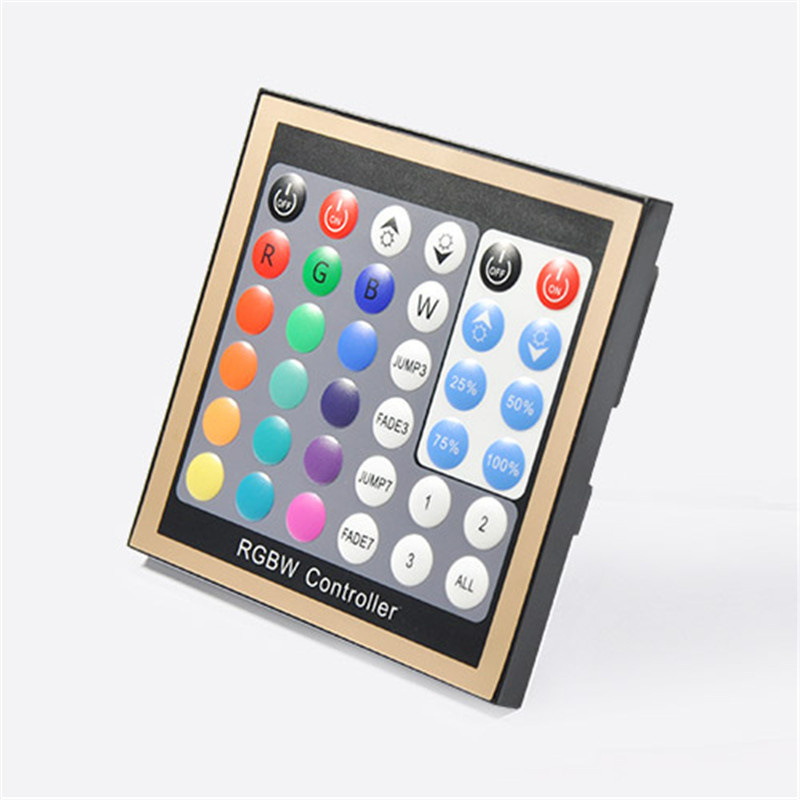

RGBW panel controller is our newly developed a new type of high-end controller, using 36 key panel design, and the 40-key radio button on the remote, look beautiful and stylish. It is mainly used to control a variety of led lamps as the light source, such as: point light source, soft light, panel light, etc.; with easy wiring, simple to use and so on.
Technical Parameters:Working temperature: -20-60 ºC
Supply voltage: DC12 ~ 24V
Output: 4-loop
Connecting mode: common anode
Dimensions: L86ΧW86ΧH36 mm
Package size: L110ΧW105ΧH55 mm
net Weight: 70g
gross Weight: 105g
Static power consumption: <1W
Direction for use:1, according to the interface specification, connect the load line, connect the power cord; before power to ensure that no short circuit between the cable.
2, using the panel buttons are described as follows: (RGB control section, the control section, and custom white
1) RGB Controlled section:
This section is only for RGB three-way button control, including the power button, off key, brightness / speed increase, brightness /deceleration, static color choices, select the dynamic effects and dynamic automatic cycle. Where static color adjustable brightness, dynamic effects speed is adjustable.All key is four dynamic effects with auto cycling
2) White light controlled section:
This section is only for white control buttons, including a key to open, turn off the key, brightness increase, decrease brightness, brightness, quick selection key. In any scenario, the white part can be individually controlled.
3) DIY Section
1,2,3 keys for a custom scene, each button can own static or dynamic color desired effect, and white to choose. Where static color and white light adjustable, adjustable speed dynamic effects. First select the desired effect during operation, and then press a number key, then the output effect flashes 4, the representatives set up a successful and self-storage.
The keys function are as below: | Brightness rise | Brightness fall | OFF | ON |
| Static red | Static green | Static blue | Static white |
| Static orange | Static light green | Static dark blue | Static milk white |
| Static dark yellow | Static cyan | Static lyons blue | Static white pink |
| Static yellow | Static light blue | Static purple | Static green-white |
| Static light yellow | Static sky blue | Static brown | Static blue white |
| Brightness rise | Brightness fall | OFF | ON |
| 25% | 50% | 75% | 100% |
| JUMP3 | FADE3 | JUMP7 | QULCK |
| FADE7 | FLASH | AUTO | SLOW |
Note: RGB and W are independent parts, the switch can be individually controlled, the brightness. For example: When you select a static red RGB mode, then you can still turn on or off according to the needs of W, or adjust the brightness according to the needs of W, RGB mode change does not happen, on the contrary part may be individually adjusted RGB mode and state. In addition, in FLASH mode can not be turned off W, this is the mode-specific changes in effect.
