| Prod Model: |
LYD--TOUCH-MB02 |
| Net Weight: |
128g |
| Gross Weight: |
187g |
| Connection Mode: |
Common Anode |
| Static Power Consumption: |
<1W |
| Output Current: |
<4A(Each Circuit) |
| Application: |
Audio / Video Players |
| Signal Transmission: |
RF Remote Control |
| Certification: |
CE |
| Universal: |
Universal |
| Material: |
Plastic |
| Type: |
Touch Panel |
| Voltage: |
DC12V~24V |
Product Description
Basic Info| Place of Origin: | Guangdong, China (Mainland) | Brand Name: | louita | Model Number: | LYD--TOUCH-MB02 |
| Type: | Remote Control | Max. Load Power: | 12V:<144W, 24V:<288W | Voltage: | DC12V~24V |
| working temperature: | -20-60 ºC | supply voltage: | DC12V~24V | net weight: | 128 g |
| gross weigh: | 187g | | |

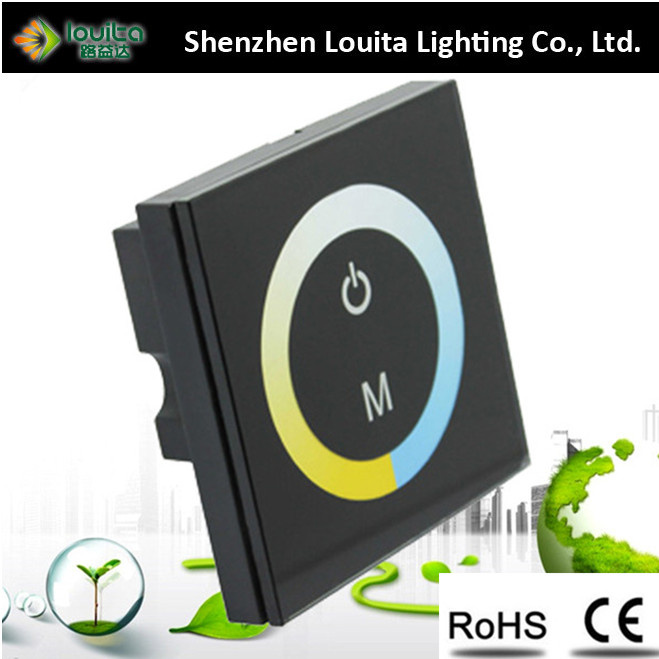

Product DescriptionTouch panel controller is our new research and development of new high-end controller, the glass panel design, appearance beautiful, vogue. Adopting high precision capacitance touch control chip, increased the touch sensitivity, reduces by mistake triggered. It is used for control of the led lighting lamps and lanterns, for example: point light source, soft article light, wash wall lamp, glass curtain wall lamp, etc.; Has the wiring convenient, use the advantages of simple; Can be realized cold light , warm light, such as white light effect change.
Main featureTouch-button, ultrathin, light quality, protable.
Touch-key count up to 64, up to 64 kinds of mode function, small volume , more key funcation.
Easy to use, have color pulley touch screen, all sorts of design and color mode at a glance, can a single point also can continuous touch to realize color mode select, users can speedily choose the needed color, and the static and dynamic mode can change freely.
Auto dormancy function, the remote control is without buttons state more than 20 seconds, remote will automatic enter the standby state, realize save electricity, extending battery life.
Technical ParametersWorking temperature: -20-60 °C
Supply voltage: DC12~24
Output: 3 channels
Connection mode: common anode
External dimension: L86 x W86 x H36mm
Packing size: L90 x W90 x H45 mm
Net weight: 128g
Gross weight: 187g
Static power: <1W
Output current: <4A( each channel )
Output power: 12V<96W, 24V<192W
Controller instruction:1. Touch panel has two buttons and a pulley key, the functions are as follows:
you could turn on/off controller at any state;
the color change button,there are 11 kinds of change patterns for you to choose,
press the key for long time, you can turn on/ off the buzzer
Multicolor pulley touch key, color mode selection key, up to 64 touch points.
The button has two functions:
1) Pulley color selection key, so when the current control mode is M key mode
(color), if must realize pulley static color, you can press this key.
2) Pulley color switch key, can change from 64 kinds of colors (as the pulley shown)
2. standard change is shown in the below table: | Mode No. | Function | Remark |
| 1 | warm white | |
| 2 | warm white +20% Cold White | |
| 3 | warm white +40% Cold White | |
| 4 | warm white +60% Cold White | |
| 5 | warm white +80% Cold White | |
| 6 | White | |
| 7 | Cold White +80% warm white | |
| 8 | Cold White +60% warm white | |
| 9 | Cold White +40% warm white | |
| 10 | Cold White +20% warm white | |
| 11 | Cold White | |
