Touch panel RGB LED Controller 12V-24V Wireless Touch Remote Controller

Prod Model:	LYD-1200
Net Weight:	128g
Gross Weight:	187g
Output:	3 CMOS Open Drain Output
Connection Mode:	Common Anode
Output Current:	<4A(Each Circuit)
Application:	Industrial Machinery
Certification:	CE
Universal:	Universal
Transmission Distance:	<50m
Material:	Plastic
Type:	Touch Panel
Voltage:	DC12V~24V

Product Description

Basic Info

Place of origin:	Shenzhen,China
output:	3 CMOS Open drain Output
Output Current:	<4A(each circuit)
Static power consumption :	<1W
Output Power:	12V:<144W, 24V:<288W
External dimension:	L86*W86*H36 mm
Supply Voltage:	DC12V~24V
Connection mode:	Common anode

Product Description

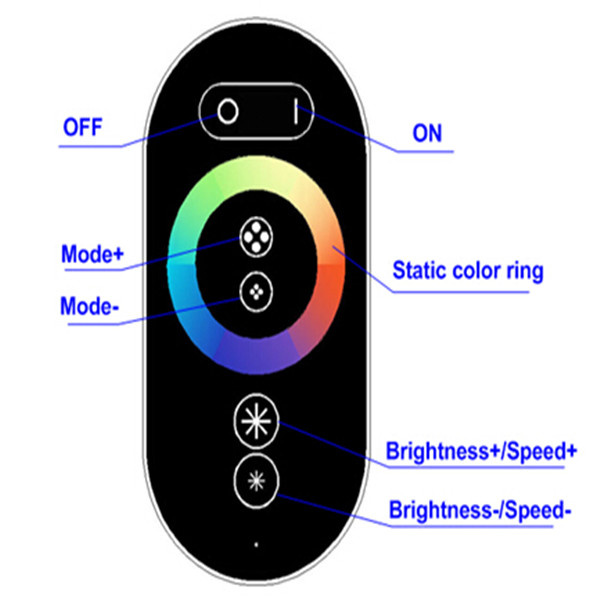

This touch remote control panel RGB controller adopted the advanced touch technology,
Mainly used to control all kinds of constant volage led products, such as LED source, flexible strip,
wall washer, glass curtain wall light and so on. User can choose different changing mode,
adjust the speed and brightness,turn on/off by the remote control according to their preference .
This controller is with power off memory function, next time to used it, will start with the model it save.
Its built-in 7 kinds of static color, jump, fade, strobe,flow, automatic cycle and others effect.
Agile wiring, easy connection and simple to used is the representative advantages of this
controller. Besides,This controller is with short circuit protection function,when meet short
 circuit, its green indicating light will be twinkling in a fixed frequency to indicate the user.
what's more,Its with automatically restore function after short circuit protection,this
personalized design can make the user experience another different sense.

Technical Parameters:
Controller
Working temperature: -20-60
Supply voltage: DC12-24V
Output: 3 channels
Connection mode: common anode
External dimension: L86 Χ W86 Χ H32 mm
Net weight:172g
static power consumption:<1W
output current: <4A( each channel )
output power: 12V:<144W,24V:<288W
Remote
Working temperature:-30~+60
Power supply mode: AAA batteries *3pcs
Supply voltage:3V
Standby power consumption:<0.09mW
Remote control distance:>20m
