| Prod Model: |
LYD--3800 |
| Connection Mode: |
Common Anode |
| Static Power Consumption: |
<1W |
| Net Weight: |
70g |
| Gross Weight: |
105g |
| Output: |
4 CMOS Open Drain Output |
| Output Current: |
<4A(Each Circuit) |
| Application: |
Audio / Video Players |
| Signal Transmission: |
RF Remote Control |
| Type: |
Button |
| Certification: |
CE |
| Universal: |
Universal |
| Transmission Distance: |
<50m |
| Material: |
Plastic |
| Battery Type: |
Button Battery |
| Voltage: |
DC12V~24V |
Product Description
Basic Info| place of origin: | Shenzhen,China |
| Connection mode: | Common anode |
| Output: | 4 CMOS Open drain Output |
| Output current: | <4A(each circuit) |
| Static power consumption : | <1w |
| Output Power: | 12V:<196W, 24V:<384W |
| Supply Voltage: | DC12V~24V |
| Brand name: | louita |
Production Description

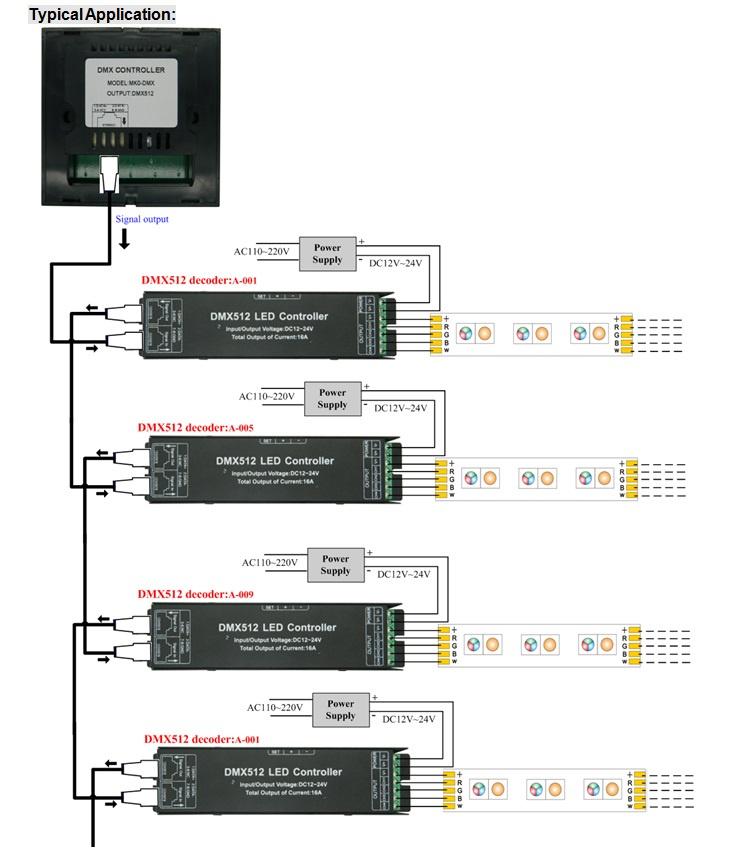

This DMX panel controller is our newly developed a new type of high-end controller, using 36 key panel design, outlooks is beautiful and stylish. It is mainly used to control DMX decoder,thought the DMX decoder to control a variety of led, such as: led light source, led strip light, led panel light, etc.. Its integrated with easy wiring, simple to use and other advantage. This controller can used as DMX master controller, it can controlled all 3 channel synchronous,and can control each channel dependently.
FeaturesSupply Voltage:DC12V~24V
External dimension:L86*W86*H36 mm
Package size:L112*W104*H54 mm
Net weight:70g
Gross weight:105g
Output:4 CMOS Open drain
Output Connection mode:Common anode
Static power consumption :<1W
Output Current:<4A(each circuit)
Output Power:12V:<196W,24V:<384W
Technical ParametersWorking temperature: -20-60 ºC
Supply voltage: DC12 ~ 24V
Output: DMX 512 Signal
Connecting mode: common anode
Dimensions: L86ΧW86ΧH36 mm
Package size: L110ΧW105ΧH55 mm
Weight: 70g
Weight: 105g
Static power consumption: <1W
Direction for use:1, according to the interface specification, connect the load line, connect the power cord; before power to ensure that no short circuit between the cable.
2, using the panel buttons are described as follows: (RGB control section, the control section, and custom white
1) RGB Controlled section:
This section is only for RGB three-way button control, including the power button, off key, brightness / speed increase, brightness /deceleration, static color choices, select the dynamic effects and dynamic automatic cycle. Where static color adjustable brightness, dynamic effects speed is adjustable.All key is four dynamic effects with auto cycling
2)White light controlled section:
This section is only for white control buttons, including a key to open, turn off the key, brightness increase, decrease brightness, brightness, quick selection key. In any scenario, the white part can be individually controlled.
3)DIY Section
1,2,3 keys for a custom scene, each button can own static or dynamic color desired effect, and white to choose. Where static color and white light adjustable, adjustable speed dynamic effects. First select the desired effect during operation, and then press a number key, then the output effect flashes 4, the representatives set up a successful and self-storage.
Trade terms/Services:1. PayPal for small orders and T/T 30% deposit 70%payment for big orders
2. No MOQ set for sample order.
3. Lead time: 3-7 days for sample order, 10 to 15 days after large order
4. Shipping methods: by international express.
5. Shipping freight is quoted under your requests.
6. Shipping Port: Shenzhen, China
7. Discounts are offered based on order quantities
8. Your inquiry related to our products or prices will be replied in 24hrs
9. Protection of your sales area, ideas of design and all you provide information
10. Good before and after sales service.
11. A large stock at least 500pcs
