Yueqing Winston Electric Co., Ltd. >> Touch-Safe Semiconductor Heater with CE

Touch-Safe Semiconductor Heater with CE

Touch-Safe Semiconductor Heater with CE
Price: US $ 5-10/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 10/Piece
Pay Type: L/C,T/T,Paypal,Western Union
Prod Model: CS 060 50W 100W 150W
Markets: North America,South America,Eastern Europe,Southeast Asia,Oceania,Western Europe
Mounting: Clip for 35mm DIN Rail, En 6071
Casing: Plastic According to UL94 V-0, Bl
Protection Type: IP20
Quality Guarantee: 2 Years
Maufacturer: OEM
Protect Feature: Sealed
Certification: CE
Control Type: Mechanical
Type: Temperature Controller
Material: Plastic
Brand: Winston

Product Description

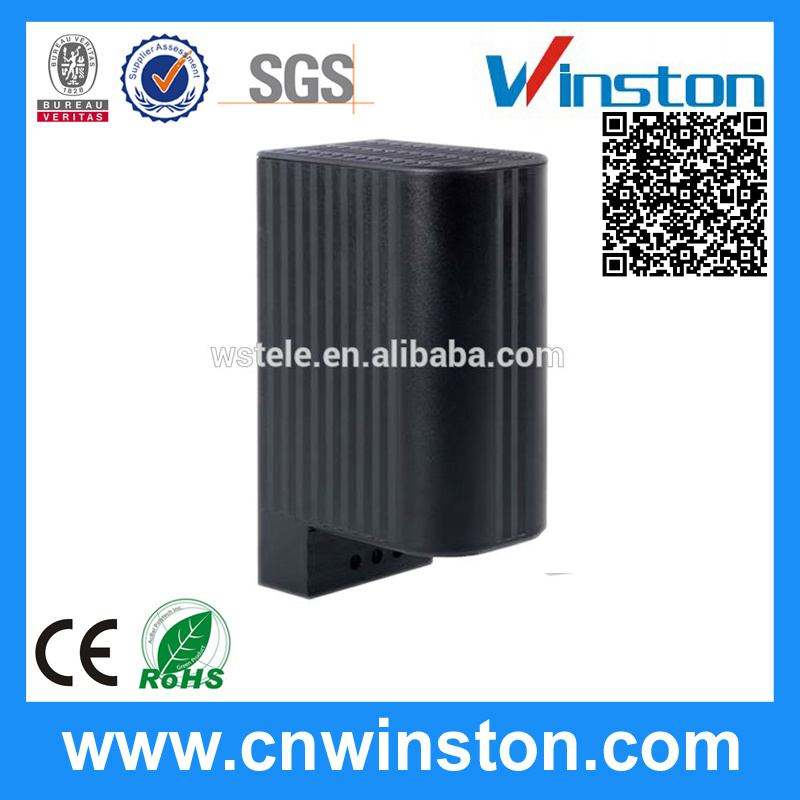

Touch-safe Heater CS 060 CS060 Series (Semiconductor)

Low surface temperature
Quick mounting due to clip fixing
Double insulated (plastic)
Wide voltage range
Small size

Touch-safe heater for the use in enclosures with electrical/electronical components. The design of the
heater supports the natural convection which results in a high air-current of warm air. The surface temperatures on the accessible side surfaces of the housing are kept down as a result of the heater design. Our complete range of thermostats and hygrostats can directly be connected to the heater CS 060. This heater is also available in a version with plug-in thermostat requiring no additional wiring (CSF 060). The heaters are designed for permanent operation.

Technical Data
Operating voltage120 - 240V AC/DC* (min. 110V, max. 265V)
Heating elementPTC resistor - temperature limiting
Surface temperature< 80°C (176°F), except upper protective grille
Connection4-pole terminal 2.5mm², torque 0.8Nm max.
Casingplastic according to UL94 V-0, black
Mountingclip for 35mm DIN rail, EN 60715
Fitting positionvertical airflow (air outlet up, connection on bottom)
Operating/Storage temperature-45 to +70°C (-49 to +158°F)
Operating/Storage humiditymax. 90% RH (non-condensing)
Protection type/Protection classIP20 / II (double insulated)
Approvals

the use within an enclosure in accordance with UL 508A)
Noteother voltages on request
Operating with voltages below 140V AC/DC reduces heating performance by approx. 10%.
Art. No.Heating capacity¹Inrush current (max.)Pre-fuse T (time-delay)Air outlet temperature²DimensionsWeight (approx.)
06000.0-0050W2.5A4A+86°C (186.8°F)110 x 60 x 90mm0.3kg
06010.0-00100W4.5A8A+120°C (248°F)110 x 60 x 90mm0.3kg
06020.0-00150W8A8A+145°C (293°F)150 x 60 x 90mm0.5kg
ambient temperature - see Heating capacity / Ambient temperature diagram;
²measured 50mm above protective grille
