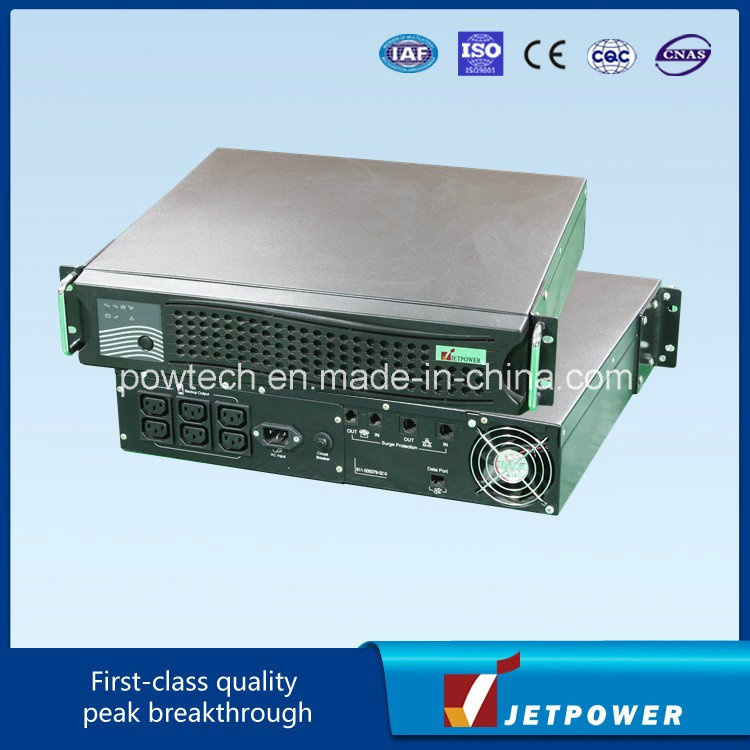

Tower / Rack Convertible Line Interactive UPS Power Supply (2000VA)
| Price: |
US $ 150/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T |
| Prod Model: |
S-RT 2000 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Wave Form: |
Step Sine Wave |
| Size: |
19inch |
| Phase: |
Single Phase |
| Type: |
Line Interactive |
| Brand: |
Jetpower |
Product Description
Panda Series Tower / Rack Convertible Line Interactive UPS
1. Line-interactive, true sine wave output
2. DC cold startup function
3. Boost and trim automatic voltage regulation(AVR)
Gives higher application availability for correcting low and high voltage conditions without using battery
4. Generator compatible
5. Dataline surge protection
Provides protection of connected equipment from power surges on the datalines
6. LED status indicators
Enables quick understanding and response to visual indicators showing UPS status
7. Safety agency approved
Ensure the product has been tested and approved to work safely with the connected service provider equipment and within the specified environment. CE approval and FCC class B.
8. USB/RS-232 connectivity
Provides management of the UPS via USB or RS-232
9. Rack/Tower adaptability
|
|
Model Name |
S-RT1100 |
S-RT1500 |
S-RT2000 |
|
Overview |
Total Capacity (VA) |
1100VA |
1500VA |
2000VA |
|
Backup Capacity (W) |
770W |
1050W |
1400W |
|
Surge Protection Only (VA) |
1100VA |
1500VA |
2000VA |
|
Power Factor |
0.7 |
0.7 |
0.7 |
|
Outlook |
Tower/Rack |
Tower/Rack |
Tower/Rack |
|
Design Type |
Line Interactive |
Line Interactive |
Line Interactive |
|
Waveform |
Step-Sine wave |
Step-Sine wave |
Step-Sine wave |
|
AVR Function |
Boost, Buck |
Boost, Buck |
Boost, Buck |
|
AVR Active LED Indicator |
Boost, Buck |
Boost, Buck |
Boost, Buck |
|
Input |
I/P Nominal Voltage |
115/230Vac |
115/230Vac |
115/230Vac |
|
I/P Voltage Range |
86~144V/172~288V (±25%) |
86~144V/172~288V (±25%) |
86~144V/172~288V (±25%) |
|
I/P Frequency Range |
60Hz-->115V/50Hz-->230V±10Hz |
60Hz-->115V/50Hz-->230V±10Hz |
60Hz-->115V/50Hz-->230V±10Hz |
|
I/P Power Line Surge (115V/230V) |
1482/854 Joules |
1482/854 Joules |
1482/854 Joules |
|
I/P Socket Type |
Power Cord+C.B->115V Inlet Socket+C.B->230V |
Power Cord+C.B->115V Inlet Socket+C.B->230V |
Power Cord+C.B->115V Inlet Socket+C.B->230V |
|
Output |
O/P Nominal Voltage |
115/230Vac |
115/230Vac |
115/230Vac |
|
O/P Voltage Range (AC Mode) |
98~127V/196~253V (+10~-15%) |
98~127V/196~253V (+10~-15%) |
98~127V/196~253V (+10~-15%) |
|
O/P Voltage Range (Batt. Mode) |
103.5~126.5V/207~253V (±10%) |
103.5~126.5V/207~253V (±10%) |
103.5~126.5V/207~253V (±10%) |
|
O/P Socket Q'ty (Backup+Surge) |
(NEMA/IEC)*6 |
(NEMA/IEC)*6 |
(NEMA/IEC)*6 |
|
Overload |
Overload Protection (AC Mode) |
110~140% Buzzer Alarm, >140% After 2 Minutes UPS Off |
110~140% Buzzer Alarm, >140% After 2 Minutes UPS Off |
110~140% Buzzer Alarm, >140% After 2 Minutes UPS Off |
|
Overload Protection (Batt Mode) |
110~140%->20Sec S/D, >140%->immed UPS Off. |
110~140%->20Sec S/D, >140%->immed UPS Off. |
110~140%->20Sec S/D, >140%->immed UPS Off. |
|
Battery |
Backup Time-Full Load |
3 Minutes |
3 Minutes |
3 Minutes |
|
Back-up Time-Half Load |
3~20 minutes Depends on load |
3~20 minutes Depends on load |
3~20 minutes Depends on load |
|
Battery Volatge & Quantity |
24vdc |
24vdc |
24vdc |
|
Battery Cold Start (DC Start) |
Yes |
Yes |
Yes |
|
Battery Replacement |
Easy Replacement |
Easy Replacement |
Easy Replacement |
|
Charger Current (STD) Internal |
1A Max. |
1A Max. |
1A Max. |
|
Charger Over Protection |
Yes |
Yes |
Yes |
|
Green Power Mode Function |
< 10% Watts After 2 min UPS S/D |
< 10% Watts After 2 min UPS S/D |
< 10% Watts After 2 min UPS S/D |
|
Microprocessor Control |
Yes |
Yes |
Yes |
|
Data Line |
TEL/FAX/Modem/DSL/Network Protection |
RJ11 (1 in/1 out) RJ45(1 in/1 out) |
RJ11 (1 in/1 out) RJ45(1 in/1 out) |
RJ11 (1 in/1 out) RJ45(1 in/1 out) |
|
Data Line Surge Energy Joules |
108 Joules |
108 Joules |
108 Joules |
|
Communication |
Intelligent Interface |
RS232 & USB (RJ48) |
RS232 & USB (RJ48) |
RS232 & USB (RJ48) |
|
RS232 Cable Type |
RJ48 to USB (RS232) Cable |
RJ48 to USB (RS232) Cable |
RJ48 to USB (RS232) Cable |
|
Monitoring Software (UPSilon 2000) |
optional |
UPSilon2000, PowerCheck |
UPSilon2000, PowerCheck |
|
Conformance |
Safety & EMC Approved |
UL,cUL,CE,FCC |
UL,cUL,CE,FCC |
UL,cUL,CE,FCC |
|
Indicators LED Display |
4 LEDs on Front Panel |
4 LEDs on Front Panel |
4 LEDs on Front Panel |
|
Rear Panel LED (115V only) |
Red LED for Site Wire fault |
Red LED for Site Wire fault |
Red LED for Site Wire fault |
|
LED Status |
Line/Batt Mode,Boost,Buck, Overload/Fault |
Line/Batt Mode,Boost,Buck, Overload/Fault |
Line/Batt Mode,Boost,Buck, Overload/Fault |
|
Physical |
Carton/Unit |
1 |
1 |
1 |
|
Dimension(DxWxH) |
415*430*89 |
415*430*89 |
415*430*89 |
|
Weight (Kg/lb) |
20.4kg |
26kg |
30kg |
