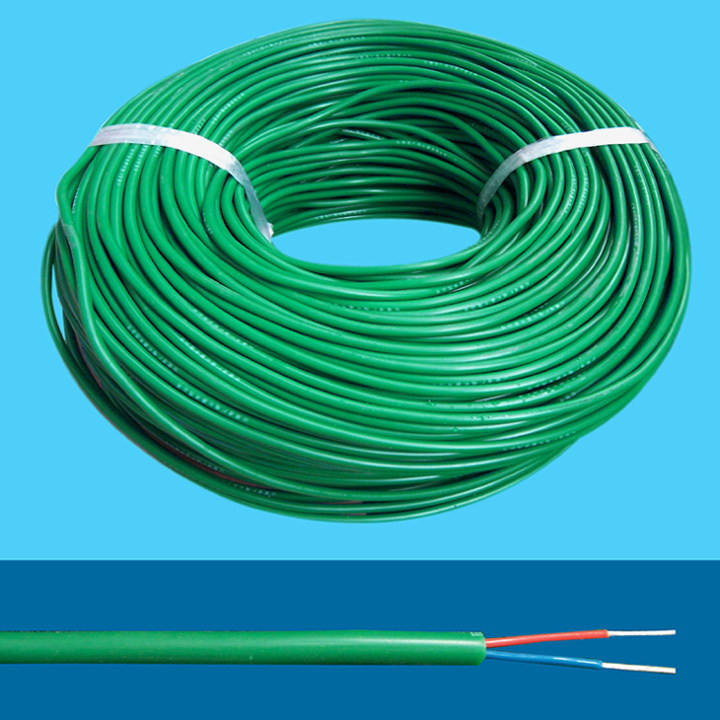

TPE Shielded Cable with Ldw16

Name: TPE Shielded Cable with Ldw16
Brand: all-electronics-online.com
SKU: 746831935
Availability: InStock
Rating: 4.6 (134 reviews)

Price:	US $ 0.16-4.23/Meter
Trade Terms:	FOB,CFR,CIF
Min Order:	3000/Meter
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	LDW16
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
TPV Shield Cable(Ldw17)):	(Ldw16)
Type:	Insulated
Conductor Type:	Stranded
Application:	Underground
Conductor Material:	Copper
Certification:	RoHS
Sheath Material:	TPE
Insulation Material:	Silicone&PVC&FEP&PFA
Brand:	Dewei Wire

Product Description

TPE shield cable(LDW16)
Nominal Voltage: 600V
Temperature Range: -60º C to 200º C
Testing Voltage: 1500v
Conductor: Tinned copper
Jacket: TPE
Insulator: Silicone&FEP&PFA
O. D. Tolerance: ± 0.20mm
Color: Black-brown-red-orange-yellow-green-blue-violet-gray-white-green/yellow. Ect

SECTION(MM2)	con.of conductor.(NO/mm)	Diameter(MM)	Thickness of insulator(MM)	over diameter(MM)	Packing(M/COILS)
2C*0.75	24/0.2	0.6	1.00	6.28	100
2C*1.00	32/0.2	0.6	1.00	6.84	100
2C*1.50	30/0.25	0.7	1.10	8.00	100
2C*2.50	49/0.25	0.8	1.20	9.2	100
3C*0.75	24/0.2	0.6	1.00	6.84	100
3C*1.00	32/0.2	0.6	1.00	7.23	100
3C*1.50	30/0.25	0.7	1.10	8.46	100
3C*2.50	49/0.25	0.8	1.20	9.96	100
4C*0.75	24/0.2	0.6	1.20	7.46	100
4C*1.00	32/0.2	0.6	1.20	7.88	100
4C*1.50	30/0.25	0.7	1.20	9.44	100
4C*2.50	49/0.25	0.8	1.20	11.09	100
5C*0.75	24/0.2	0.6	1.20	8.32	100
5C*1.00	32/0.2	0.6	1.20	8.80	100
5C*1.50	30/0.25	0.7	1.30	10.30	100
5C*2.50	49/0.25	0.8	1.40	12.32	100

DONGGUAN DEWEI WIRE Co., Ltd, established in 2004, specializes in manufacturing various kinds of silicone sleeve and electrical cable: Silicone rubber wire, FEP wire, PFA wire, PTFE wire, ETFE wire, heating wire, braided wire, power cable, twin flat cable, coaxical cable, high temperature cable and high voltage cable which can meet the requirements of UL, VDE, CCC.

Besides, we set up a wire processing workshop to provide customers with well processed wire group and wire harness of the batteries, the brushes, electric adjustment, steering gear, all kinds of JST, AMP connector, T-type plugs, banana plugs etc,

We set up and implement quality management system strictly according to international standard ISO9000, and had been awarded the certification of AMT ISO 9001: 2008 in 2009.

Our philosophy is quality-oriented, continuous innovative, reputation first and to treat our clients sincerely. In the meantime we persist in providing our customers with competitive high-quality products, creating a belief that quality decides the survival of the company.

Welcome to visit and give advice, let' S work together and create brilliant future.
