TPS Power Cable Flat Type Meets AS/NZS 5000.2&160 Standards

Name: TPS Power Cable Flat Type Meets AS/NZS 5000.2&160 Standards
Brand: all-electronics-online.com
SKU: 795367995
Availability: InStock
Rating: 4.7 (38 reviews)

Price:	US $ 0.8-5/Meter
Min Order:	3000/Meter
Pay Type:	T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	TPS Cable
Standard:	IEC 60227, BS 6004, VDE0281, GB/T 5023, Jb/T8734
Application:	Lighting
Voltage:	Low and Medium Voltage Cable
Current:	AC Cable
Insulation Material:	PVC
Certification:	RoHS
Model:	TPS Cable
Brand:	N/a

Product Description

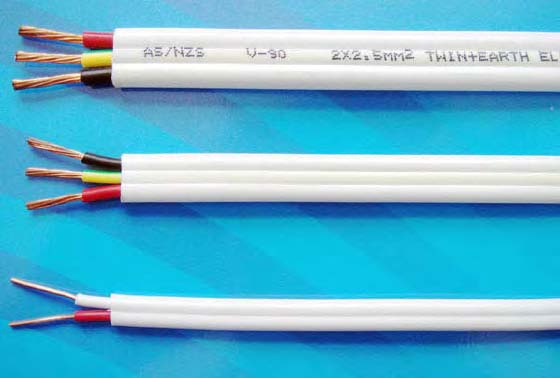

TPS Power Cable Flat Type meets AS/NZS 5000.2 standards

Flat TPS Cable			Package Photo:
Type	Flat TPS cable, Flat cable twin, Flat cable twin with earth
Voltage Rate		450/750V
Cores		2C, 3C, 2C+E, 3C+E
Range of Nominal cross section:		1.0 mm2 ~ 16 mm2
Application	These cables are used for general wiring, unenclosed, enclosed in conduit, buried direct or in underground ducts for domestic, commercial and industrial applications where is not subject to mechanical damage.
Standard	AS/NZS 5000.2
Constructions	Conductor: Class 1/2 Plain annealed copper wires, solid or stranded Insulation: V-90 PVC Sheath: 3V-90 PVC easy tearing Core color: red and black for active core, green/yellow for earth core, white for sheath
Max. Operating Temperature		90ºC
Packing	100 meters per roll or 500 meters per roll or as per requirement
Production Capacity	50 kilometer/ day
MOQ	10000 meters for small size, 5000 meters for middle size, 1000 meters for big size
Delivery time	10~15 working days
Remark	The cable can be of flame retardant, fire resistance and other property

Star Link IT Co., Ltd was founded in 2007, one of the leading suppliers of LAN Cables, Fiber Optic Cables, HDMI Cables, USB Cables, Patch Cords & CCTV Cables in China. Over the years, we have been serving customers from over 15 countries & regions, helping them lower their buying costs for copper data cabling as well as fiber optic products.

Star Link IT Co., Ltd leads the Cables & Wires manufacturing services industry in technical expertise and operational experience. Through strategic movement and an established long-term customer base, we have deep insight into the needs of the market, the technical convergence requirements and the competitive challenges that drive the need for continuous reevaluations of the supply chain. These insights drive our strategy of providing end-to-end solutions for networking and optical products.

Over the years, we have brought in advanced product facilities and built up a well-trained, qualified team, which continuously guarantees state-of-the-art quality and first-class service. We are young but dynamic, creative, flexible and continually striving to provide our customers with easy solutions. We pride ourself to partner with a certain number of the cross-regional top 500 companies.

Our goal is to be your very first source for data cabling.
