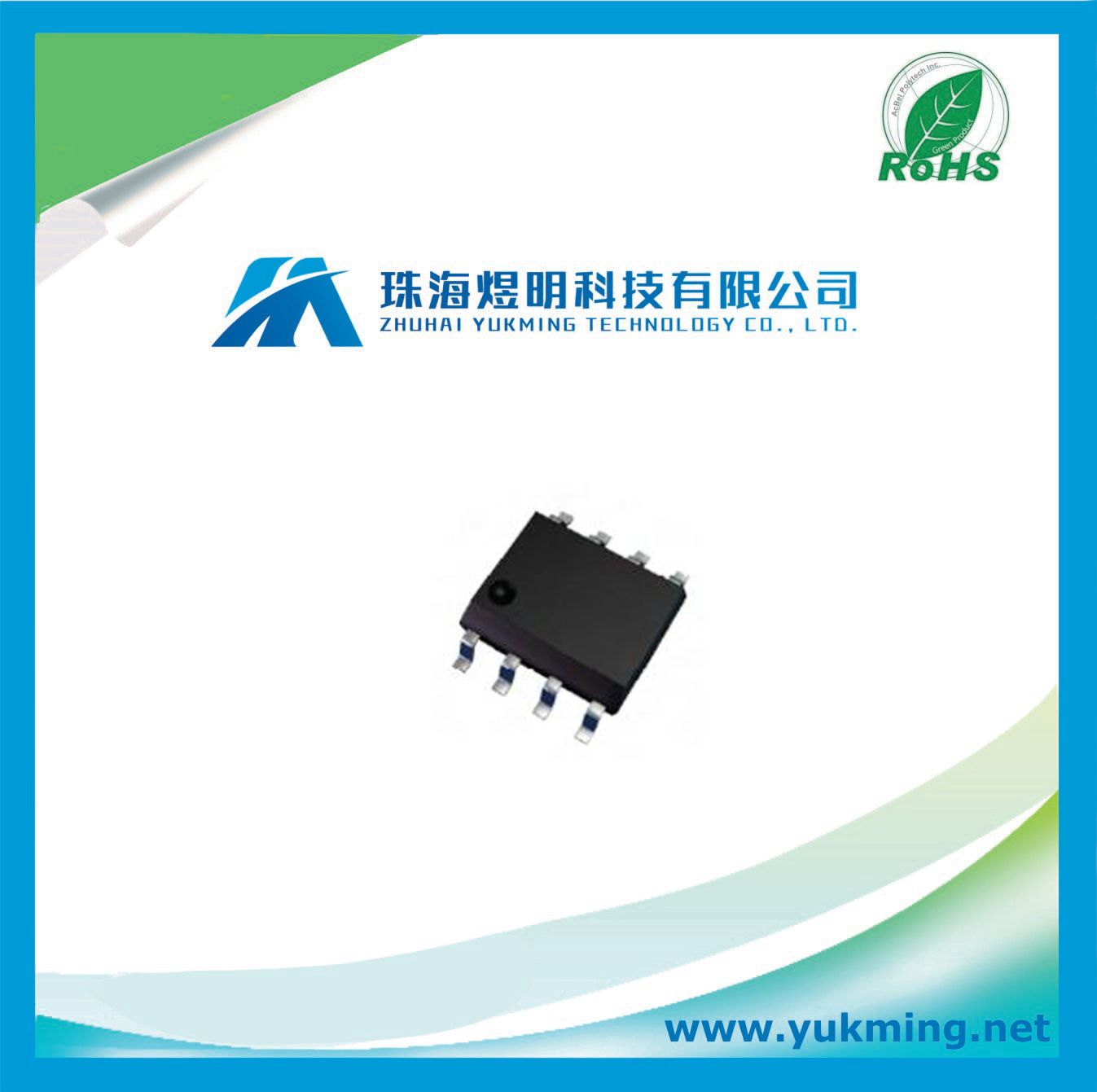

Transistor Dual Enhancement Mode Mosfet

Prod Model:	ZXMC10A816N8TC
Number Of Elements Per Chip:	2
Maximum Drain Source Voltage (V):	100

Product Description

We, Zhuhai Yukming Technology Co., Ltd. are a one-stop cupply chain for integrated circuit (IC), capacitor, resistor, diode, LED, relay and connector etc for PCB assembly. We have our own reliable sources after setting up the head office in Shenzhen and developing the branch in Zhuhai, and we can completely guarantee the products of original.

Come to us, and we will try the best to support you by controlling our cost as possible as we can.


Lead time	Stock in Hong Kong, Shenzhen and Zhuhai, timely delivery.
Guarantee	100% original assembled new ; 30 days warranty
Payment	Hang Seng Bank (Hong Kong), Paypal,
Shipment	DHL ,TNT ,FEDEX, UPS or any other express as you require





100V SO8 Complementary Dual enhancement mode MOSFET

Description
This new generation complementary dual MOSFET
features low on-resistance achievable with low gate drive.

Features
100 V Complementary in SOIC package
Low on-resistance
Fast switching speed
Low voltage (V
GS
= 4.5 V) gate drive

Applications
DC motor control
Backlighting
Class D Audio Output Stages (<100W)

Specifications
EU RoHS Compliant
Product Category Power MOSFET
Channel Mode Enhancement
Channel Type N|P
Number of Elements per Chip 2
Maximum Drain Source Voltage (V) 100
Maximum Gate Source Voltage (V) ±20
Maximum Continuous Drain Current (A) 2.1@N Channel|2.2@P Channel
Maximum Drain Source Resistance (mOhm) 230@10V@N Channel|235@10V@P Channel
Typical Gate Charge @ Vgs (nC) 9.2@10V@N Channel|16.5@10V@P Channel
Typical Gate Charge @ 10V (nC) 9.2@N Channel|16.5@P Channel
Typical Input Capacitance @ Vds (pF) 497@50V@N Channel|717@50V@P Channel
Maximum Power Dissipation (mW) 2100
Minimum Operating Temperature (°C) -55
Maximum Operating Temperature (°C) 150
Packaging Tape and Reel
Temperature Grade Military
Mounting Surface Mount
Package Height (mm) 1.5(Max)
Package Length (mm) 4.95(Max)
Package Width (mm) 3.95(Max)
PCB changed 8
Standard Package Name SOP
Supplier Package SO
Pin Count 8
Lead Shape Gull-wing
