Transistor of 30V P-Channel Mosfet Ao3407A Electronic Component

Name: Transistor of 30V P-Channel Mosfet Ao3407A Electronic Component
Brand: all-electronics-online.com
SKU: 796876135
Availability: InStock
Rating: 4.8 (137 reviews)

Price:	US $ 0.065/Piece
Min Order:	1000/Piece
Pay Type:	L/C,T/T,D/P,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	AO3407A
Number Of Elements Per Chip:	1
Maximum Drain Source Voltage (V):	30
Maximum Gate Source Voltage (V):	+/-20
Maximum Continuous Drain Current (a):	4.3

Product Description

Lead time	2 to 3 days after receiving the payment.
Remark	100% New and original ; 30 days warranty
Payment	Heng Seng Bank (Hong Kong), Paypal,
Shipment	DHL ,TNT ,FEDEX, UPS or any other express

MANUFACTURER
Alpha and Omega Semiconductor

PRODUCT CATEGORY
MOSFET

DESCRIPTION

General Description
The AO3407A/L uses advanced trench technology to provide
excellent RDS(ON) with low gate charge. This device is suitable
for use as a load switch or in PWM applications. AO3407A
and AO3407AL are electrically identical.
-RoHS Compliant
-AO3407AL is Halogen Free

Features
V_DS (V) = -30V
I_D = -4.3A (V_GS = -10V)
R_DS(ON) < 48mΩ(V_GS = -10V)
R_DS(ON) < 78mΩ(V_GS = -4.5V)

Specifications
EU RoHS Compliant
Product Category Power MOSFET
Channel Mode Enhancement
Channel Type P
Number of Elements per Chip 1
Maximum Drain Source Voltage (V) 30
Maximum Gate Source Voltage (V) ±20
Maximum Continuous Drain Current (A) 4.3
Maximum Drain Source Resistance (mOhm) 48@10V
Typical Gate Charge @ Vgs (nC) 9.2@10V|[email protected]
Typical Gate Charge @ 10V (nC) 9.2
Typical Input Capacitance @ Vds (pF) 668@15V
Maximum Power Dissipation (mW) 1400
Minimum Operating Temperature (°C) -55
Maximum Operating Temperature (°C) 150

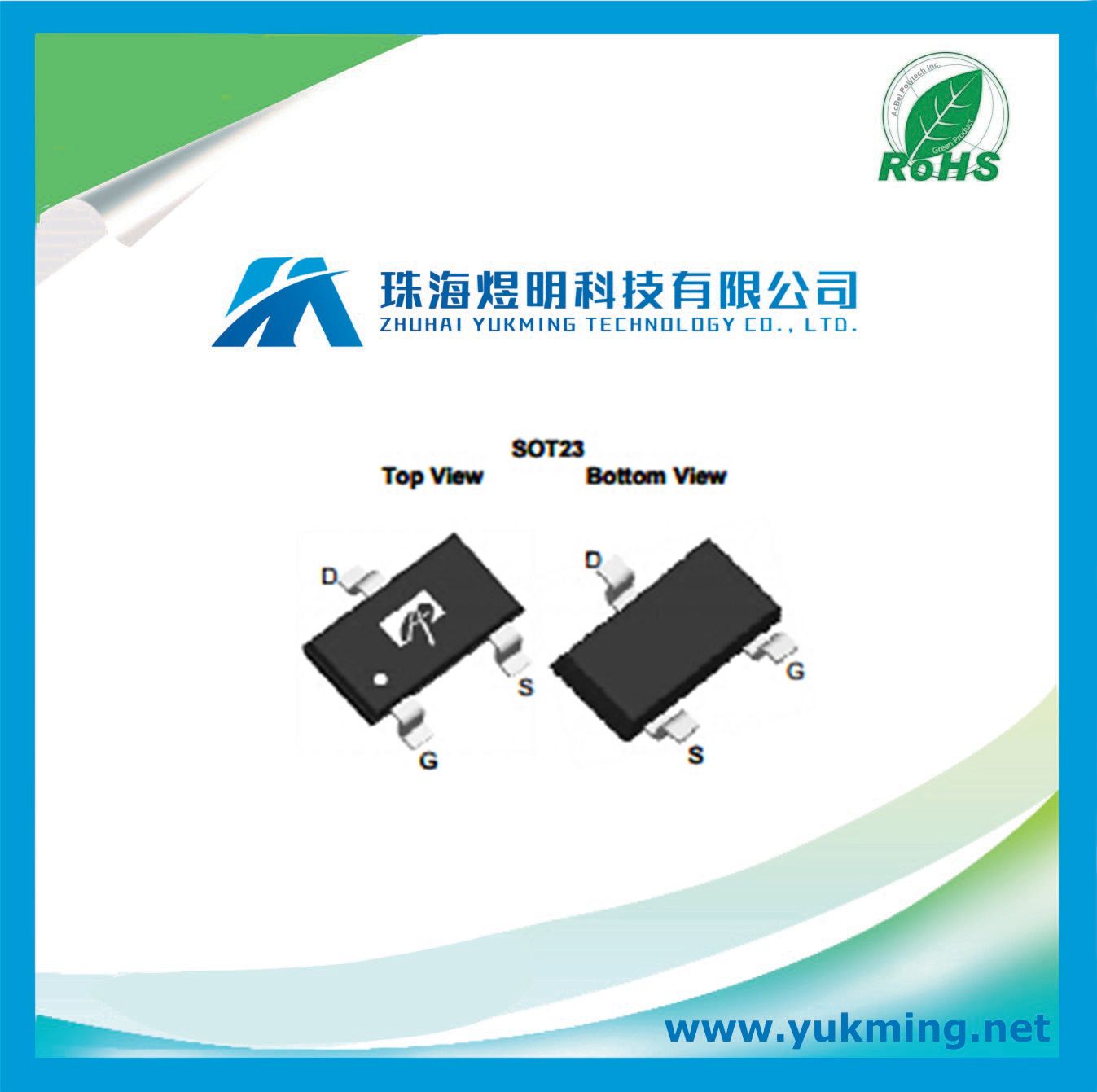

Mounting Surface Mount
Package Height (mm) 1
Package Length (mm) 2.9
Package Width (mm) 1.6
PCB changed 3
Standard Package Name SOT
Supplier Package SOT-23
Pin Count 3
Lead Shape Gull-wing
