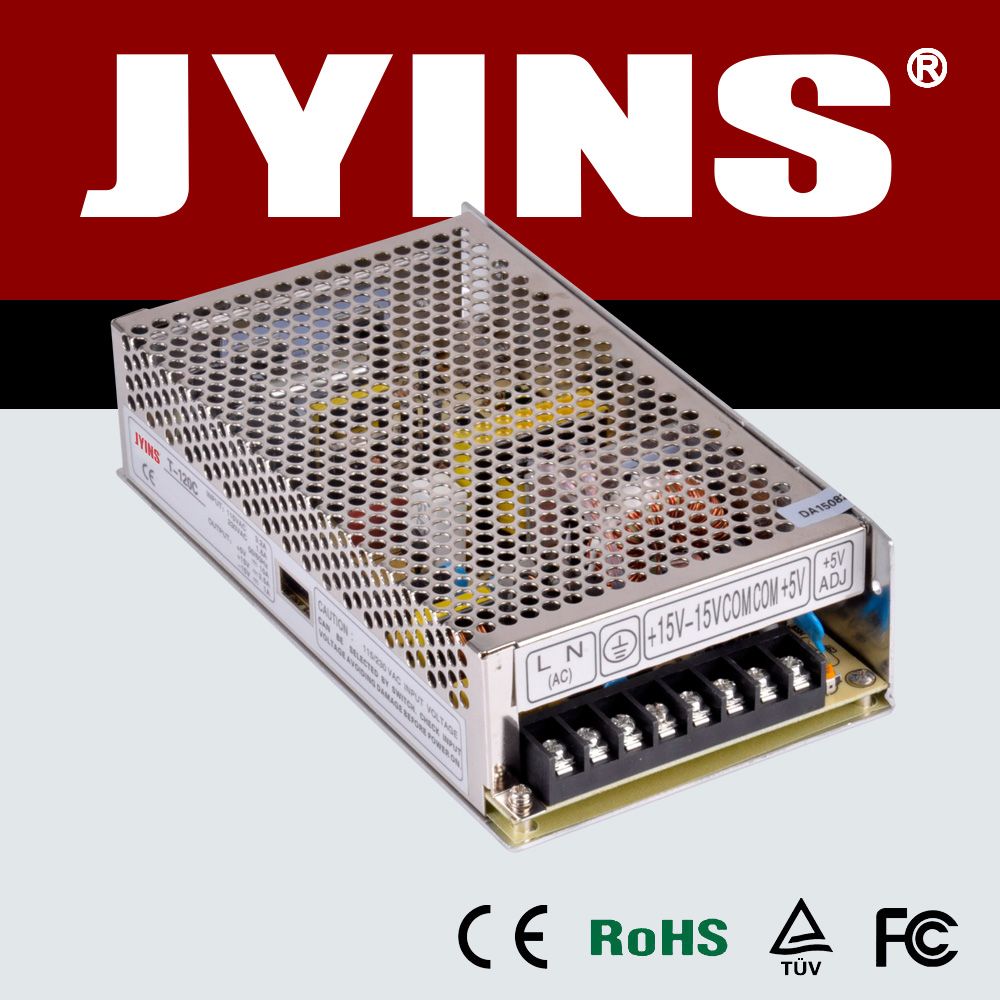

Triple Output 120W Switching Power Supply (T-120)

Triple Output 120W Switching Power Supply (T-120)
Price: US $ 16-17/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 1/Piece
Pay Type: L/C,Paypal,Western Union
Prod Model: T-120
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Warranty Time: 18 Months
OEM, ODM: Accepted
Output: Triple Output
Power: 120W
Output Type: Triple
Warranty: 2 Years
Output Power: 101 - 200W
Input Voltage: Full Range
Connection Mode: Series Switching Power Supply
Starting Mode: Self-excited Switching Power Supply
Voltage Regulating Mode: Frequency Modulation Type
Power Supplying System: Level 1 Power Distribution Equipment
Certification: CE
Energy Transmission: Three-Way

Product Description

Triple Output 120W Switching Power Supply (T-120)
1. Our company is a professional manufacture and OEM.
Our products obtain CE and ISO9001 Certificate and according to IEC 521 international standard to.

2. Low price and high reliability
105 C output capacitor
AC input power suitable for the world
Hight efficiency and low operation temperature
Soft-start current can reduce the AC input impact effecticly
With Short-circuit and owwerload protection
Compact size, light weight
100% full-load burning test
Installed with EMI filter, minimum wave

Connection Location: 8 9.5mm terminals
L, N: AC Input
+ V2: DC output positive terminal
Access land
-V3: DC output negative terminal
COM: DC output common ground terminal
+ V1: DC output positive terminal
AC input voltage range85-132VAC/170-264VAC 47-63Hz 240-370VDC
Input current2.5A/115V 1.25A/230V
AC inrush currentCold-start current 20A/115V 40A/230V
Leakage current<3.5mA/240VAC
DC adjustable range±10% rated output voltage
Over load protection105-135% hiccup mode,auto-recovery
Over-voltage protection115-135%
Setup rise lold up time800ms 20ms 20ms
Withstand voltage
I/P-O/P:3KVAC 1minute
I/P-FG:1.5KVAC 1minute
O/P-O/P:0.5KVAC 1minute
Working temperature-10~+60.20%-90% RH
Weight/packing0.9kg.24pcs/21.6kg



type

Output

Error

Range

Efficiency

T-120A

5V,2-12A

±2%

80mV

77%

12V,0.5-5A

±6%

120mV

-5V,0.2-1A

±6%

80mV

T-120B

5V,2-12A

±2%

80mV

77%

12V,0.5-5A

±6%

120mV

-12V,0.2-1A

±6%

120mV

T-120C

5V,2-12A

±2%

80mV

76%

15V,0.5-5A

±10,-5%

150mV

-15V,0.2-1A

±10,-5%

150mV
