Product Description

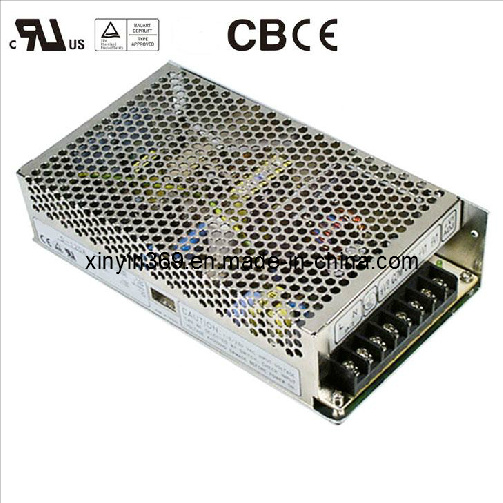

120W Triple Output Switching Power Supply, SMPS
Features:
AC input range selected by switch
Protections: Short circuit/Over load/Over voltage
100% full load burn-in test
Fixed switching frequency at 25kHz
199*110*50mm(L*W*H)
Our switching power supply product:
Single output LED power supply
Dual output d series power supply
Triple output t series power supply
Quad output q series power supply
Miniature size ms, RS, NES series power supply
Witch PFC function sp series power supply
DIN rail DR series power supply
LED driver, FS series power supply
Open frame PS, PD, PT series power supply
DC/DC converter SD series
WMP and AD series
|
MODEL |
T-120A |
T-120B |
T-120C |
T-120D |
|
DC VOLTAGE |
5V |
12V |
-5V |
5V |
12V |
-12V |
5V |
15V |
-15V |
5V |
12V |
24V |
|
RATED CURRENT |
11A |
5A |
1A |
11A |
4.5A |
1A |
10A |
3.5A |
1A |
8A |
2.5A |
2A |
|
CURRENT RANGE |
2-12A |
0.5-5A |
0.2-1A |
2-12A |
0.5-5A |
0.2-1A |
2-12A |
0.5-5A |
0.2-1A |
2-12A |
0.2-5A |
0.2-2A |
|
RATED POWER |
120W |
121W |
117.5W |
118W |
|
RIPPLE & NOISE (max. ) |
80mVp-p |
120mVp-p |
80mVp-p |
80mVp-p |
120mVp-p |
120mVp-p |
80mVp-p |
150mVp-p |
150mVp-p |
80mVp-p |
120mVp-p |
180mVp-p |
|
VOLTAGE ADJ. RANGE |
CH1: 4.75 ~ 5.5V |
|
VOLTAGE TOLERANCE |
± 2.0% |
± 6.0% |
± 6.0% |
± 2.0% |
± 6.0% |
± 6.0% |
± 2.0% |
+10-5% |
+10-5% |
± 2.0% |
± 6.0% |
± 6.0% |
|
LINE REGULATION |
± 0.5% |
± 1% |
± 1% |
± 0.5% |
± 1% |
± 1% |
± 0.5% |
± 1% |
± 1% |
± 0.5% |
± 1% |
± 1% |
|
LOAD REGULATION |
± 1% |
± 5% |
± 5% |
± 1% |
± 5% |
± 5% |
± 1% |
± 5% |
± 5% |
± 1% |
± 5% |
± 5% |
|
SETUP, RISE, HOLD TIME |
800ms, 20ms, 20ms/230VAC 1600ms, 20ms, 12ms/115VAC at full load |
|
VOLTAGE RANGE |
88 ~ 132VAC / 176 ~ 264VAC selected by switch 240 ~ 370VDC |
|
FREQUENCY RANGE |
47 ~ 63Hz |
|
EFFICIENCY (Typ. ) |
77% |
77% |
76% |
80% |
|
AC CURRENT |
2.8A/115VAC 1.6A/230VAC |
|
INRUSH CURRENT (max. ) |
COLD START 35A |
|
LEAKAGE CURRENT |
< 3.5mA / 240VAC |
|
OVERLOAD |
105 ~ 135% rated output power. |
|
Protection type: Shut down o/p voltage, re-power on to recover. |
|
OVER VOLTAGE |
CH1: 5.75 ~ 6.75VDC |
|
Protection type: Shut down o/p voltage, re-power on to recover. |
|
WORKING TEMP. |
-10 ~ +60º C |
|
WORKING HUMIDITY |
20 ~ 90% RH non-condensing |
|
STORAGE TEMP., HUMIDITY |
-20 ~ +85º C, 10 ~ 95% RH |
|
TEMP. COEFFICIENT |
± 0.03%/º C (0 ~ 50º C) |
|
VIBRATION |
10 ~ 500Hz, 2G 10min. /1cycle, 60min. each along X, Y, Z axes |
|
SAFETY STANDARDS |
Design refer to UL1012 |
|
WITHSTAND VOLTAGE |
I/P-O/P: 3KVAC I/P-FG: 1.5KVAC O/P-FG: 0.5KVAC |
|
ISOLATION RESISTANCE |
I/P-O/P, I/P-FG, O/P-FG: 100M Ohms/500VDC |
|
EMI CONDUCTION & RADIATION |
Compliance to EN55022 (CISPR22) Class B |
|
HARMONIC CURRENT |
Compliance to EN61000-3-2, -3 |
|
EMS IMMUNITY |
Compliance to EN61000-4-2, 3, 4, 5, 6, 8, 11; ENV50204, EN55024, Light industry level, criteria A |
|
MTBF |
274.5K hrs min. MIL-HDBK-217F (25º C) |
|
DIMENSION |
199*110*50mm(L*W*H) |
|
PACKING |
0.80Kg; 16pcs/13.36/0.0287CMB |
