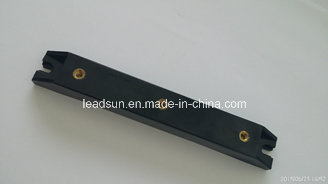

Trustworthy China Supplier 3hg20 General Rectifier Diodes with Mounting Slots High Voltage Rectifier Silicon Assembly

Name: Trustworthy China Supplier 3hg20 General Rectifier Diodes with Mounting Slots High Voltage Rectifier Silicon Assembly
Brand: all-electronics-online.com
SKU: 708133402
Availability: InStock
Rating: 4.5 (118 reviews)

Price:	US $ 3.1-7.7/Piece
Trade Terms:	FOB
Min Order:	100/Piece
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	3HG20
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Feature:	More Sizes to Choose
Use:	Electrostatic Cleaning
Max Forward Voltage:	18.0V
Max Forward Surge Current:	150A
Manufacturing Technology:	Discrete Device
Material:	Element Semiconductor
Type:	P-type Semiconductor
Package:	Through-Hole
Application:	Rectification
Model:	3hg20
Brand:	Leadsun

Product Description

Feature:
Avalanche characteristic
More sizes to choose
vacuum molded, non-corrosive epoxy resin case
Tj:-40ºC--+120ºC
Application:
High voltage rectifier used in electrostatic cleaning
High voltage generator
High voltage testing equipment
General purpose high voltage rectifier, voltage multiplier assembly
HC-3HC Rectifier Module

HG Rectifier Module

TYPE	Peak reverse repetive voltage	Forward average rectifier current	Max forward voltage	Max forward surge current	Normal temperature leakage current	Time of reverse recovert
TYPE	VRRM(KV)	Ir(A)	VFM(V)	IFSM(A)	IRRM(μA)	Trr(nS)
HG10	10	1.00	9.0	50	0.5	--
HG15	15	1.00	14.0	50	0.5	--
HG20	20	1.00	18.0	50	0.5	--
HG25	25	0.80	22.0	50	0.5	--
HG30	30	0.80	28.0	50	0.5	--
HG40	40	0.80	36.0	50	0.5	--
HG50	50	0.80	44.0	50	0.5	--
HG·5	5	2.00	4.5	50	0.5	--
HG·10	10	2.00	9.0	50	0.5	--
HG·15	15	1.60	14.0	50	0.5	--
HG·20	20	1.60	18.0	50	0.5	--
HG·25	25	1.60	22.0	50	0.5	--
3HG10	10	2.50	9.0	150	0.5	--
3HG15	15	2.25	14.0	150	0.5	--
3HG20	20	2.25	18.0	150	0.5	--
3HG25	25	2.00	22.0	150	0.5	--
3HG30	30	2.00	28.0	150	0.5	--
3HG·5	5	2.50	4.8	150	0.5	--
3HG·10	10	2.25	9.0	150	0.5	--
3HG·15	15	2.00	14.0	150	0.5	--
3HG10RC	10	3.00	9.0	150	500	--
3HG15RC	15	2.75	14.0	150	500	--
3HG20RC	20	2.50	18.0	150	500	--
6HG10	10	3.00	10.0	400	5.0	--
6HG15	15	2.75	15.0	400	5.0	--
6HG20	20	2.50	20.0	400	5.0	--
6HG10RC	10	3.60	10.0	400	500	--
6HG15RC	15	3.30	15.0	400	500	--
6HG18RC	18	3.00	18.0	400	500	--

This is leadsun electronics from Anshan, China. Our company is specializing in designing and producing types of high voltage components, such as high voltage diodes, high voltage bridge rectifier, high voltage silicon assembly, special high voltage modular, multiply voltage modular and high frequency high voltage power supply. These products are widely applied for electrostatic cleaning, medical X-ray machine, CT, MR, dehydrating of crude oil, broadcast launching, laser power supply, high voltage modular, high voltage test equipment, TV/display FBT, air purifier, power supply, etc.
