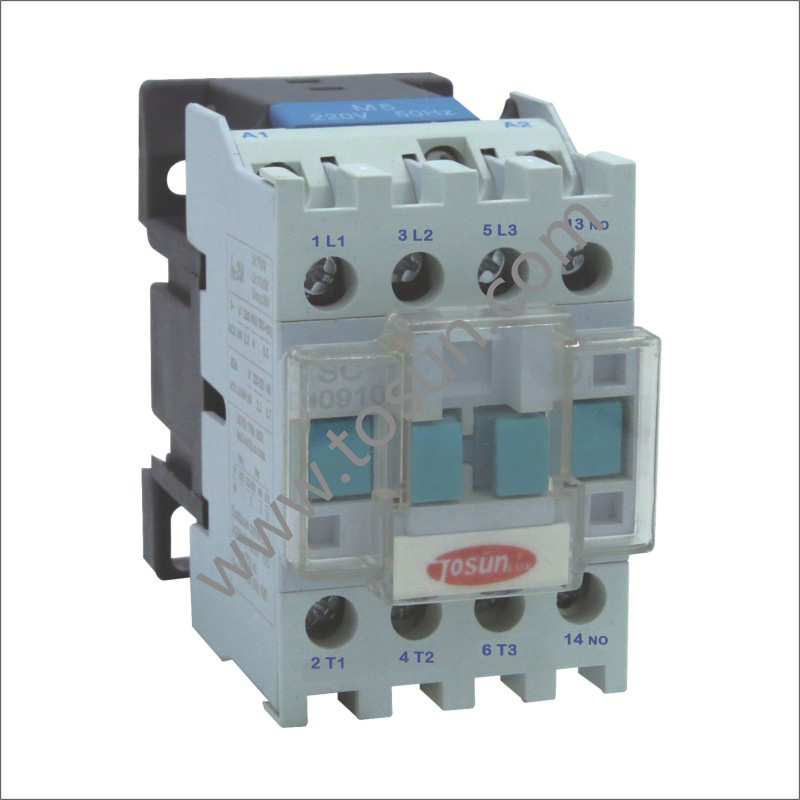

Tsc-D AC Contactor From 9A to 95A

Name: Tsc-D AC Contactor From 9A to 95A
Brand: all-electronics-online.com
SKU: 752548705
Availability: InStock
Rating: 5 (126 reviews)

Price:	US $ 2-14/Piece
Trade Terms:	FOB,CFR,EXW
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	TSC-D
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Certificate:	Comply with IEC60947-4
Size:	Miniature
Theory:	Voltage Relay
Usage:	Household Appliances Relay, Communication Relay

Product Description

PRODUCT DESCRIPTION:

1. TSC-D series AC Contactor is suitable for using in the circuits up to the rated voltage 660V AC 50Hz or 60Hz, rated current up to 95A, for making, breaking, frequently starting & controlling the AC motor. 2. Combined with the auciliary contact block, timer delay & machine-interlocking device etc, it becomes the delay contactor, mechanical interlocking contactor, star-delta starter.
3. With the thermal relay, it is combined into the electromagnetic starter. The products comply with IEC60947-4.

STANDARD CONTROL CIRCUIT VOLTAGE:

Volts

110

220

230

240

380

400

415

440

500

600

50Hz

N-5

600Hz

50/60Hz

N-7

SPECIFICATION:

Model		TSC-D09	TSC-D12	TSC-D18	TSC-D25	TSC-D32
Rated working current(A)	AC3	9	12	18	25	32
Rated working current(A)	4C4	3.5	5	7.7	8.5	12
AC3 capacity of phase 3quirrel-cage motor AC3(KW)	220/230V	2.2	3	4	5.5	7.5
	380/400V	4	5.5	7.5	11	15
	415V	4	5.5	9	11	15
	500V	5.5	7.5	10	15	18.5
	660/690V	5.5	7.5	10	15	18.5
Rated heat current(A)		20	20	32	40	50
Electrical life	AC3x10^4	100	100	100	100	80
Electrical life	AC4x10^4	20	20	20	20	20
Mechanical life x 10^4		1000	1000	1000	1000	800
Number of the contacts		3P+NO
Number of the contacts		3P+NC

Model		TSC-D40	TSC-D50	TSC-D65	TSC-D80	TSC-D95
Rated working current(A)	AC3	40	50	65	80	95
Rated working current(A)	4C4	18.5	24	28	37	44
AC3 capacity of phase 3quirrel-cage motor AC3(KW)	220/230V	11	15	18.5	22	25
	380/400V	18.5	22	30	37	45
	415V	22	25	37	45	45
	500V	22	30	37	55	55
	660/690V	30	33	37	45	55
Rated heat current(A)		60	80	80	125	125
Electrical life	AC3x10^4	80	60	60	60	60
Electrical life	AC4x10^4	15	15	15	10	10
Mechanical life x 10^4		800	800	800	600	600
Number of the contacts		3P+NC+NO
