Tsc1-F AC Contactor for 3-Phase Motor (3P 4P AC-3 50/60Hz)

Name: Tsc1-F AC Contactor for 3-Phase Motor (3P 4P AC-3 50/60Hz)
Brand: all-electronics-online.com
SKU: 764918325
Availability: InStock
Rating: 4.6 (109 reviews)

Price:	US $ 46-1059/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	TSC-F
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Rated Operation Current(a):	AC-1 AC-3
Frequence:	50/60Hz
Rated Current(a):	115-800A
Rated Voltage:	220-1000V

Product Description

TSC1-F AC Contactor with high performance(3P 4P AC-3)

Application

TSC1-F series AC contactor is applicable to the circuits up to the reted voltage 1000V AC 50Hz, rated current from 115A to 800A, for long distance breaking circuit and frequently starting or controlling the motor. It also can be used for the control or distribution circuits of rated current from 200A to 1600A.

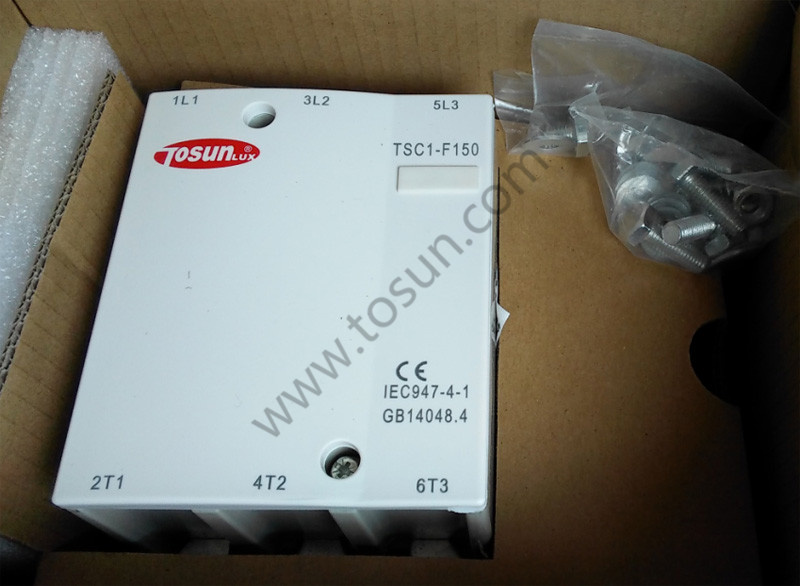

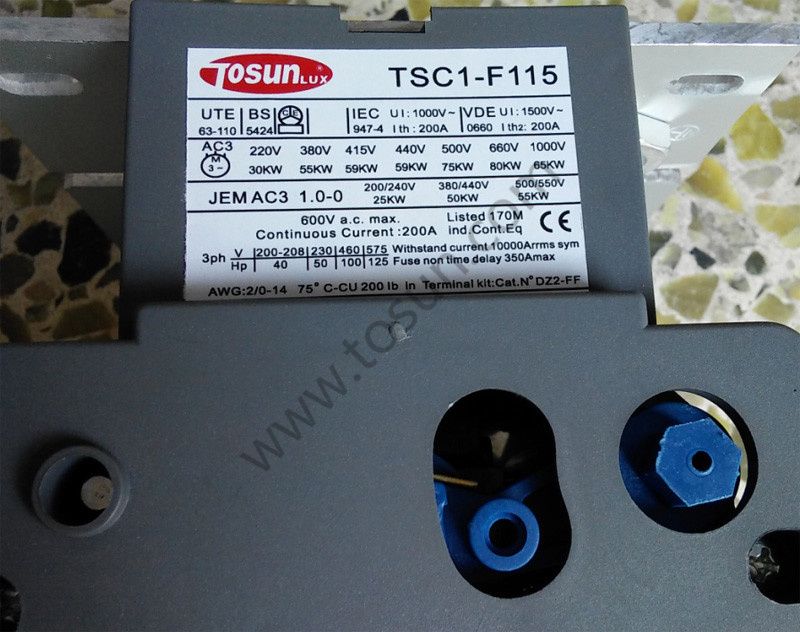

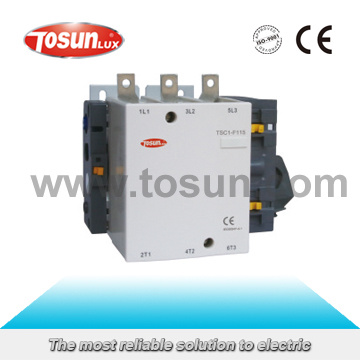

Pictures

Specification

Model		F115	F150	F185	F225	F265	F330
Rated operation current (A)	AC-3	115	150	185	225	265	330
Rated operation current (A)	AC-1	200	250	275	315	350	400
Standard power ratings of 3-phase motors AC-3 (KW)	220/230V	30	40	55	63	75	100
	380/400V	55	75	90	110	132	160
	415V	59	80	100	110	140	180
	440V	59	80	100	110	140	200
	500V	75	90	110	129	160	200
	660/690V	80	100	110	129	160	200
	1000V	65	65	100	100	147	160

Model		F400	F500	F630	F780	F800
Rated operation current (A)	AC-3	400	500	630	780	800
Rated operation current (A)	AC-1	500	700	1000	1600	1000
Standard power ratings of 3-phase motors AC-3 (KW)	220/230V	110	147	200	220	220
	380/400V	200	250	335	400	400
	415V	200	250	335	400	400
	440V	250	295	400	425	420
	500V	257	355	400	450	430
	660/690V	280	335	450	475	470
	1000V	185	335	450	450	450

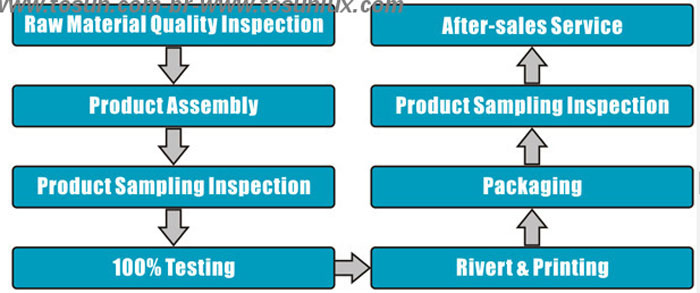

Production Procedure

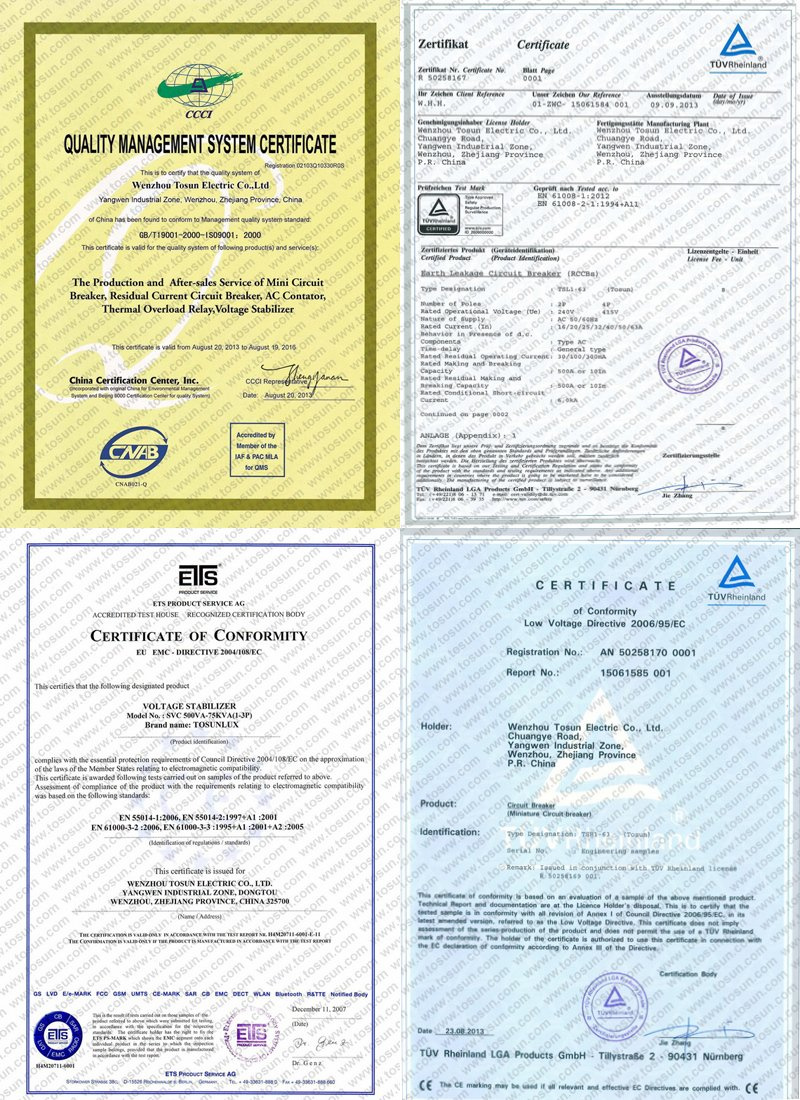

Certificates

Why us?
1. We have extensive experience in low tension electric items and illumination products. We have been dealing the line for more than 21 years.

2. The prices of our products are very reasonable because our network of raw material supply, spare parts and goods. And our factory is efficient, covering an area of 13,000 m².

4. Our group of professional inspectors supervising the quality for your every order. Our products have obtained TUV, SEMKO, CE, CB, and ROHS certificates.

5. We have particular designers in charge of packing.

6. We have experienced salesmen to handle business for you specially.

About us

1. More than 23 years' experience. We have extensive experience in low tension electric items illuminaiton products.

2. Reasonable price. Good network of raw material supply, spare parts and goods and efficient factory covering an area of 13,000 m².

3. Reliable quality. We have professional inspectors supervising the quality during the production. Our products have obtained TUV, SEMKO, CE, CB and RoHS certificates.

4. Favorable service. We have experienced salesmen to handle business for you specially.

5. Attractive packing. We have particular designers in charge of packing material in a unique style.

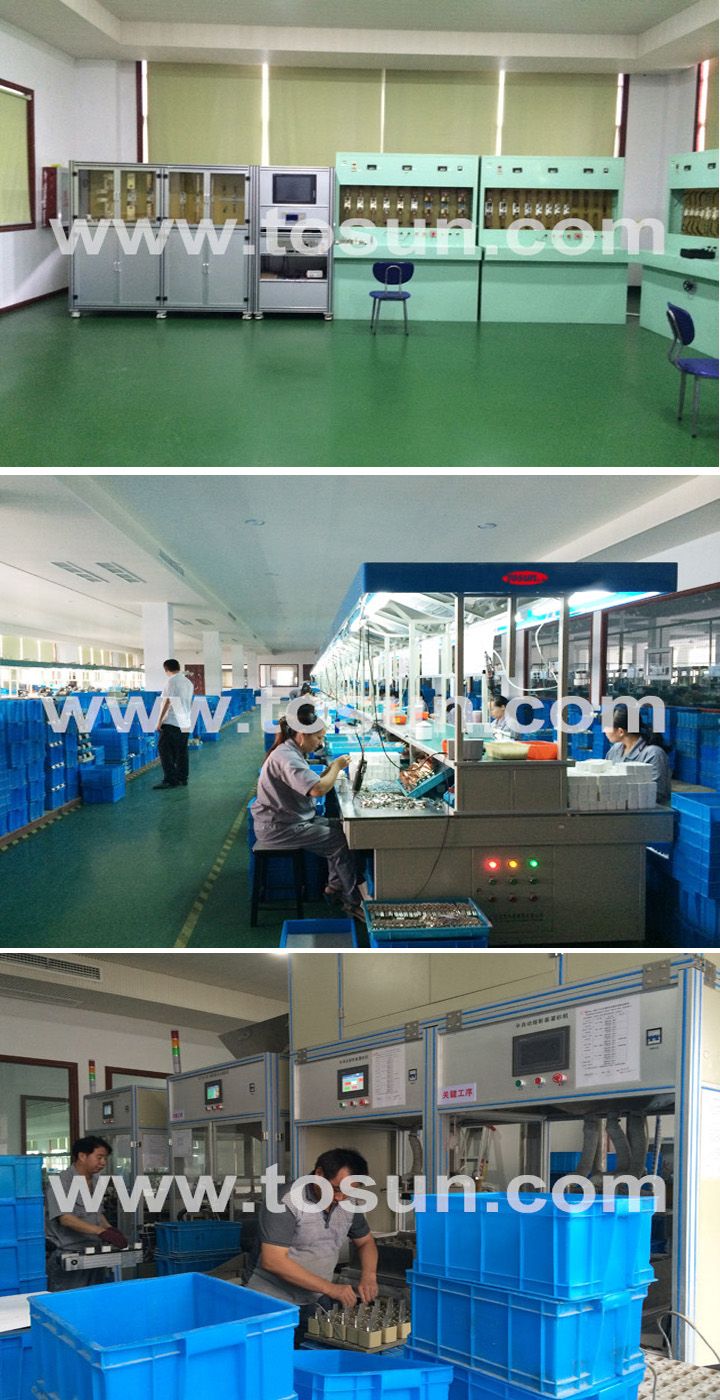

Our producing line

Contact us

We are one of the most reliable manufacturers and exporters of low tension electrical items and illumination products in China. We have successfully developed and dealt with numerous electrical products in high quality, such as Circuit Breaker, AC Contact, Panel Enclosure, Electrical Accessories for Panel Enclosure, Pushbutton, Switch, Fuse, Meter, Temperature Controller, Cable Tie, Wiring System products as well as illumination items.

· Qualifications and Technological Strength

We possess full line of high-tech production equipment and great strength of technology support besides advanced designing forces powered by the first class engineering teams with super industrial computer systems. Thus, Our products are novel in designs, excellent in workmanship and tope reliable in quality. A lot of our products have obtained "RoHS", "CB", "CE" and "IRAM", and other international quality approvals. The products now are being well sold in more than 82 countries and regions in the world.

· Contact Us Today

We have always pays special attention to protecting the benefits of clients' so that both the clients ans our company are able to gain the maximum benefits from the relations between us. We warmly look forward to establishing, reinforcing and expanding long term fruitful relationship with the reliable clients all over the world.

Let's get busy and pull together to create a better future.
