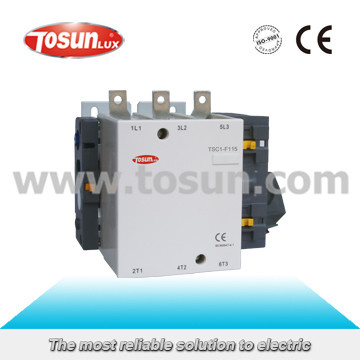

Tsc1-F AC Contactor with CE Certificate

Prod Model:	TSC1-F
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Theory:	Voltage Relay
Usage:	Household Appliances Relay, Communication Relay

Product Description

Application

TSC1-F series AC Contactor is applicable to the circuits up to the rated voltage 1000V AC 50Hz or 60Hz, rated current from 115A to 800A, for long distance breaking cuicuit and frequently starting or controlling the AC motor. It can also be used for the control of distribution circuits of rated current from 200A to 1600A.

Specification

Model		TSC1-F115	TSC1-F150	TSC1-F185	TSC1-F225	TSC1-F265	TSC1-F330
Rated operation current(A)	AC-3	115	150	185	225	265	330
	AC-	200	250	275	315	350	400
Standard power ratings of 3-phase motors AC-3(KW)	220/230V	30	40	55	63	75	100
	380/400V	55	75	90	110	132	160
	415V	59	80	100	110	140	180
	440V	59	80	100	110	140	200
	500V	75	90	110	129	160	200
	660/690V	80	100	110	129	160	200
	1000V	65	65	100	100	147	160

Model		TSC1-F400	TSC1-F500	TSC1-F630	TSC1-F780	TSC1-F800
Rated operation current(A)	AC-3	400	800	630	780	800
	AC-	500	700	1000	1600	1000
Standard power ratings of 3-phase motors AC-3(KW)	220/230V	110	147	200	220	220
	380/400V	200	250	335	400	400
	415V	200	280	375	425	420
	440V	250	295	400	425	420
	500V	257	355	400	450	430
	660/690V	280	335	450	475	470
	1000V	185	335	450	450	450
